18609 700 MHz/Lower A – Full Block/Bandpass Filter
This filter passes the Lower A (full) block while rejecting the Upper C (uplink) block and the entire GSM 850 band. Also rejects Upper D (uplink) block Alternate connectors a
Showing 33–48 of 72 results
-
-
18610 700 MHz/Full Band/ Bandpass Filter
This filter passes the entire 700 MHz band while rejecting most of the DTV-UHF band and the entire GSM 850 band. Rejects DTV-UHF channels 14-50 Alternate connectors available
-
18738 GSM 1800 Partial Band Receive Filter
This filter isolates a portion of the GSM 1800 band from a portion of the GSM 1800 transmit band.
-
18766 Wireless Bandpass Filter
Product Specifications Passband or Center Frequency (Fo) 2500 MHz (Fo) Insertion Loss 2 dB typ @ Fo VSWR 1.5:1 max @ Fo Rel. (3 dB) Bandwidth 44 MHz min, 60 MHz max Rejection 60 dB typ @ 2400 MHz, 30 dB typ @ 2450 MHz, 30 dB typ @ 2550 MHz Package – Size 2.90”…
-
18767 Wireless Bandpass Filter
Product Specifications Passband or Center Frequency (Fo) 2490 – 2710 MHz Insertion Loss 1 dB typ 2 dB max VSWR 1.5:1 max @ Fo Rejection 40 dB typ @ 2400 MHz, 40 dB typ @ 2780 MHz Package – Size 3.78” x 1.43” x 1.00” Datasheet: Download PDF
-
18768 Wireless Bandpass Filter
Product Specifications Passband or Center Frequency (Fo) 2492 – 2540 MHz Insertion Loss 1 dB typ 2 dB max VSWR 1.5:1 max Rejection 60 dB typ @ 2400 MHz, 40 dB typ @ 2440 MHz, 40 dB typ @ 2590 MHz Package – Size 5.66” x 0.75” x 2.00” Datasheet: Download PDF
-
18769 Wireless Bandpass Filter
Product Specifications Passband or Center Frequency (Fo) 2493 – 2693 MHz Insertion Loss 1 dB typ VSWR 1.5:1 max Rejection 40 dB typ @ 2400 MHz, 40 dB typ @ 2773 MHz Package – Size 5.20” x 3.11” x 1.00” Datasheet: Download PDF
-

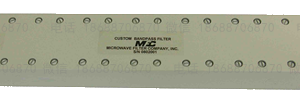

18770 Wireless Bandpass Filter
Product Specifications Passband or Center Frequency (Fo) 2500 – 2520 MHz Insertion Loss 2 dB typ 3 dB max VSWR 1.5:1 max Rejection 80 dB typ @ 2400 MHz, 30 dB typ @ 2490 MHz, 30 dB typ @ 2530 MHz Package – Size 12.1” x 2.25” x 1.44” Datasheet: Download PDF
-
18771 Wireless Bandpass Filter
Product Specifications Passband or Center Frequency (Fo) 2520 MHz (Fo) Insertion Loss 1 dB typ VSWR 1.5:1 max Rel. (3 dB) Bandwidth 40 MHz min Rejection 65 dB typ @ 2400 MHz, 30 dB typ @ 2475 MHz, 30 dB typ @ 2565 MHz Package – Size 2.79” x 1.50” x 0.76” Datasheet: Download PDF
-

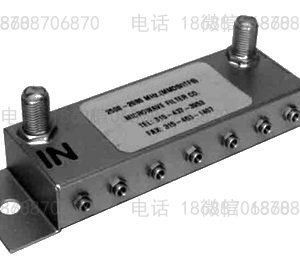

18772 Wireless Bandpass Filter
Product Specifications Passband or Center Frequency (Fo) 2500 – 2542 MHz Insertion Loss 1 dB typ VSWR 1.5:1 max Rejection 65 dB typ @ 2400 MHz, 25 dB typ @ 2572 MHz Package – Size 5.66” x 2.59” x 1.30” Datasheet: Download PDF
-
18773 Wireless Bandpass Filter
Product Specifications Passband or Center Frequency (Fo) 2500 – 2548 MHz Insertion Loss 1 dB typ VSWR 1.5:1 max Rejection 60 dB min @ 2400 MHz, 40 dB min @ 2444 MHz, 40 dB min @ 2596 MHz Package – Size 5.66” x 2.65” x 1.25” Datasheet: Download PDF
-
18774 Wireless Bandpass Filter
Product Specifications Passband or Center Frequency (Fo) 2550 MHz (Fo) Insertion Loss 0.5 dB typ 1 dB max VSWR 1.5:1 max Rel. (3 dB) Bandwidth 130 MHz typ Rejection 45 dB typ @ 2400 MHz, 30 dB min @ 2430 MHz, 30 dB min @ 2567 MHz Package – Size 2.79” x 1.66” x 0.84”…
-

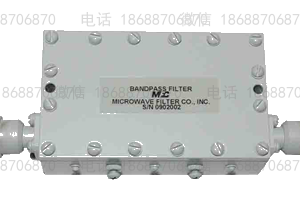

18775 Wireless Bandpass Filter
Product Specifications Passband or Center Frequency (Fo) 2496 – 2686 MHz Insertion Loss 1 dB typ VSWR 1.5:1 max Rejection 25 dB typ @ 2400 MHz, 25 dB typ @ 2735 MHz Package – Size 3.48” x 1.50” x 1.05” Datasheet: Download PDF
-
18776 Wireless Bandpass Filter
Product Specifications Passband or Center Frequency (Fo) 2626 – 2700 MHz Insertion Loss 2 dB typ VSWR 1.5:1 max Rejection 40 dB min @ 2605 MHz, 40 dB min @ 2725 MHz Package – Size 9.93” x 1.72” x 0.98” Datasheet: Download PDF
-
18777 Wireless Bandpass Filter
Product Specifications Passband or Center Frequency (Fo) 2496 – 2565 MHz Insertion Loss 1 dB typ VSWR 1.5:1 max Rejection 40 dB min @ 2400 MHz, 40 dB min @ 2600 MHz Datasheet: Download PDF
-
18778 Wireless Bandpass Filter
Product Specifications Passband or Center Frequency (Fo) (Fo) Option: 2527 – 2587 MHz Passband: 6 MHz BW Insertion Loss 2.5 dB typ 3 dB max VSWR 1.5:1 max Rejection 30 dB min +/- 20 MHz from Fo Package – Size 5.38” x 3.75” x 1.50” Datasheet: Download PDF
