Showing 49–64 of 72 results
Product Specifications Passband or Center Frequency (Fo) 2530 – 2686 MHz Insertion Loss 1.5 dB typ VSWR 1.5:1 max Rejection 25 dB min @ 2520 MHz, 25 dB min @ 2696 MHz Package – Size 16.0” x 2.25” x 1.40” Datasheet: Download PDF
Product Specifications Passband or Center Frequency (Fo) 2600 – 2640 MHz Insertion Loss 1.5 dB typ 2 dB max VSWR 1.5:1 max Rejection 70 dB min @ 2400 MHz, 40 dB typ @ 2520 MHz, 40 dB typ @ 2720 MHz Package – Size 2.58” x 1.50” x 1.05” Datasheet: Download PDF
Product Specifications Passband or Center Frequency (Fo) 2500 – 2700 MHz Insertion Loss 1 dB typ VSWR 1.5:1 max Rejection 40 dB typ @ 2400 MHz, 40 dB typ @ 2800 MHz Package – Size 3.78” x 1.00” x 0.93” Datasheet: Download PDF

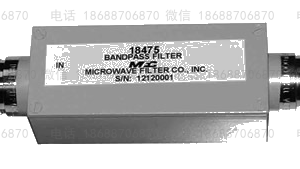

This filter prevents VHF & UHF land mobile radio transmitter harmonic emissions from interfering with wireless services operating between (698 – 2000) MHz. Features: Compa
This filter isolates the middle of the BRS-EBS band from potential interference from other operations above and below the band.
This filter isolates the majority of the BRS-EBS band from potential interference from other operations above and below the band.

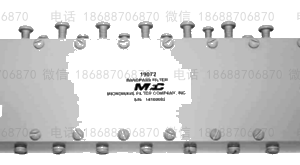

This filter isolates the EGSM 900 transmit and receive bands from potential interference from other bands operating above and below these bands.
This filter isolates a portion of the GSM 1800 band from a portion of the GSM 1800 transmit band.
This filter isolates the upper portion of the BRS-EBS band from potential interference from other operations above and below the band.
This filter isolates a portion of the 700 MHz (Asia Pacific Telecommunity) band from undesired transmissions operating below 700 MHz and above 778 MHz.
These duplexers provide excellent performance in mobile or base applications. Each unit is designed with a minimum of 4 MHz separation between the low frequency (Fl) and the high f
These duplexers provide excellent performance in mobile or base applications. Each unit is designed with a minimum of 5 MHz separation between the low frequency (Fl) and the high
These duplexers provide excellent performance in mobile or base applications. Each unit is designed with a minimum of 5 MHz separation between the low frequency (Fl) and the high
These duplexers provide excellent performance in mobile applications. Each unit is designed with a minimum of 30 MHz separation between the low frequency (Fl) and the high freque
These duplexers provide excellent performance in mobile or base applications. Each unit operates with 5 MHz minimum / 45 MHz typical separation between the low frequency (Fl) and
These duplexers provide excellent performance in mobile or base applications. Each unit operates with 5 MHz minimum separation between the low frequency (Fl) and the high frequen
