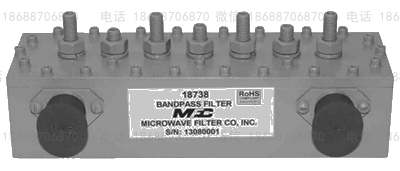

18738 GSM 1800 Partial Band Receive Filter
This filter isolates a portion of the GSM 1800 band from a portion of the GSM 1800 transmit band.
Description
Details: This filter isolates a portion of the GSM 1800 band from a portion of the GSM 1800 transmit band.
Product Specifications
| Passband Receive | 1760-1785 MHz |
| Passband Insertion Loss | 1.0 dB Approx |
| Rejection | 60 dB Min from 1855-1880 MHz |
| Connectors | N-Female |
| Passband VSWR | 1.35:1 |
| Impedance | 50 ohms |
Datasheet: Download PDF
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 1.95 × 6.5 × 1.54 cm |
| Brand | Microwave Filter Company |
| Filter Type | Receive Filter |
| Passband Receive | 1760-1785 MHz |
| Passband Insertion Loss | 1.0 dB Approx |
| Rejection | 60 dB Min from 1855-1880 MHz |
| Connectors | N-Female |
| Passband VSWR | 1.35:1 |
| Impedance | 50 ohms |
