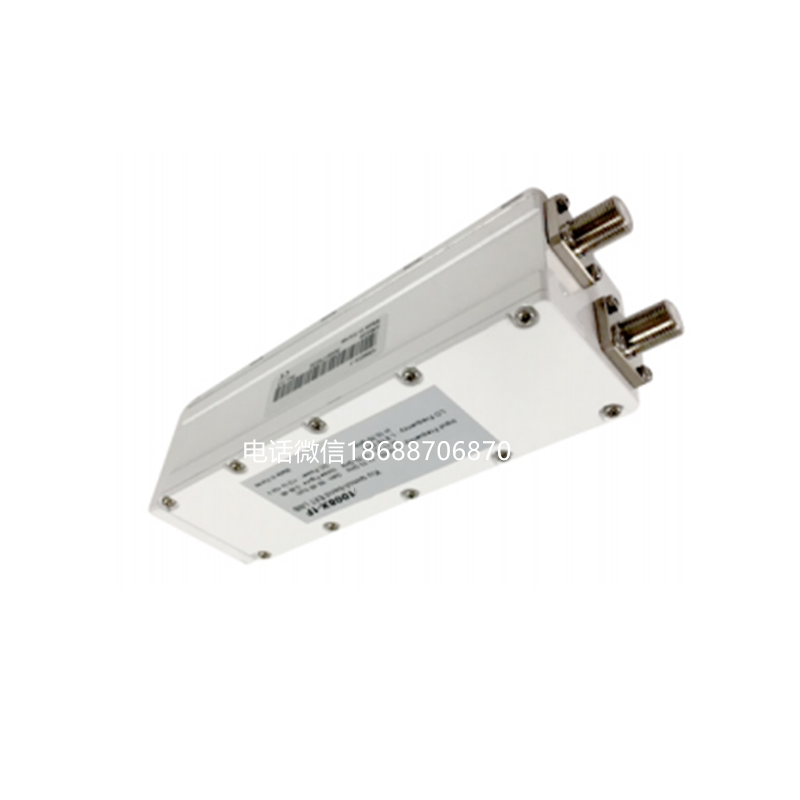

Name: Ku Simul-band INT LNB GX2002A GARDINER 高频头 降频器 低噪声放大下变频器
SKU: 3632
Price: 9800.00 CNY
Availability: InStock

Description

Ku Simul-band INT LNB GX2002A GARDINER 高频头降频器低噪声放大下变频器

Here is the English translation of the XMW Ku-band dual-band internal LO LNB (RS1000I) specification.

Item	Specification
Product Name	Ku Simul-band INT LNB
Model	GX2002A
Product Type	Satellite Communication Receiver

Parameter	Specification
Spurious	In-band: ≤ -55 dBm (over full temp. range), ≤ -60 dBm (at room temp.) Out-of-band: ≤ -40 dBm
Noise Figure	0.85 dB (typical)
LO Leakage (Input)	≤ -50 dBm
Image Rejection	≥ 50 dBc
DC Supply (V/I)	+13 to +20 V / 450 mA (typical)
Input Waveguide	WR-75
Output Connector	N-type female (50 Ω), F-type female (75 Ω)
Dimensions	139.9 (L) × 42.5 (W) × 40.0 (H) mm
Weight	470 g
Operating Temp.	-40 ~ +60 ℃
LO Stability	±5 ~ ±25 kHz
Phase Noise	≤ -70 dBc/Hz @ 1 kHz ≤ -80 dBc/Hz @ 10 kHz ≤ -90 dBc/Hz @ 100 kHz
Input/Output VSWR	Input: ≤ 2.2:1 Output: ≤ 2.0:1
Conversion Gain	55 dB (typical)
Gain Flatness	±2 dB (max)
Output P1dB	≥ +5 dBm
Max. RF Input Level	-30 dBm

Option	Sub-band	RF Frequency (GHz)	LO Frequency (GHz)	IF Frequency (MHz)
Option-1	Low-band	10.70 – 11.70	9.75	950 – 1950
	High-band	11.70 – 12.75	10.75	950 – 2000
Option-2	Low-band	10.95 – 11.70	10.00	950 – 1700
	High-band	11.70 – 12.75	10.75	950 – 2000

Power Supply & Connection
- When connecting to a DVB receiver or modem, provide +18 VDC to power the device while transmitting the IF signal.
- DVB #1: +18VDC supply + IF signal input
- DVB #2: +18VDC supply + IF signal input
