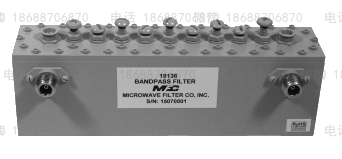

19136 700 MHz (APT Band) Bandpass Filter
This filter isolates a portion of the 700 MHz (Asia Pacific Telecommunity) band from undesired transmissions operating below 700 MHz and above 778 MHz.
Description
Details: This filter isolates a portion of the 700 MHz (Asia Pacific Telecommunity) band from undesired transmissions operating below 700 MHz and above 778 MHz.
Product Specifications
| Passband(MHz) | 723-738 |
| Passband I/L | 1.2 dB Approx |
| Passband R/L | 16.5 dB Min |
| Stopband(s) (MHz) | DC–700 MHz, 778 – 793 MHz |
| Stopband Attenuation | 60 dB Min, 60 dB Min |
| Connectors | N-female |
Datasheet: Download PDF
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 7.2 × 23.2 × 5 cm |
| Brand | Microwave Filter Company |
| Filter Type | Bandpass Filter |
| Passband(MHz) | 723-738 |
| Passband I/L | 1.2 dB Approx |
| Passband R/L | 16.5 dB Min |
| Stopband(s) (MHz) | DC–700 MHz, 778 – 793 MHz |
| Stopband Attenuation | 60 dB Min, 60 dB Min |
| Connectors | N-female |
