Duplexer / Diplexer — 223 MHz to 16.2 GHz

Description

Duplexer / Diplexer — 223 MHz to 16.2 GHz

Product Overview

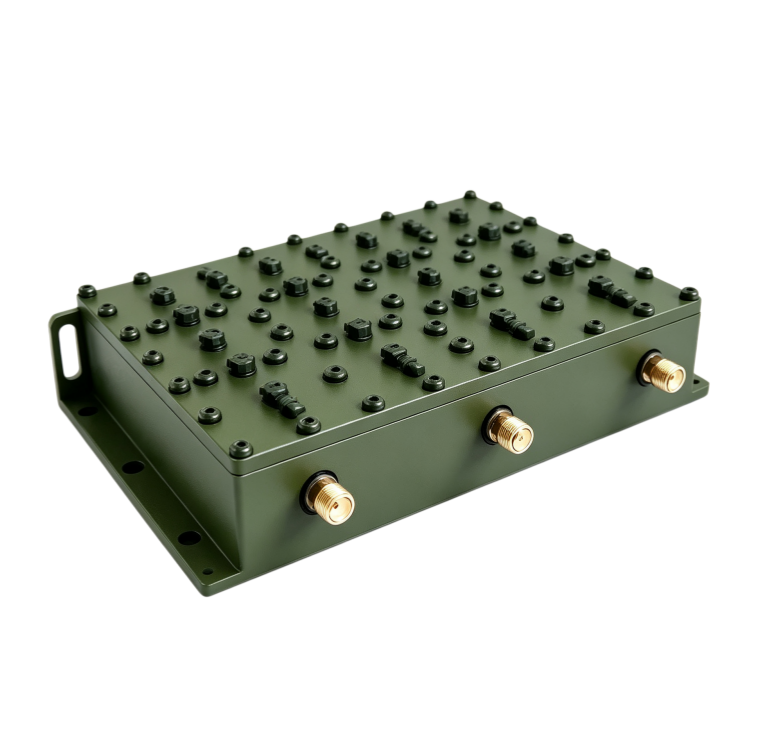

HS Series Duplexers are high-performance passive RF devices independently developed by Shenzhen Huashi Digital Technology Co., Ltd. They are designed for base stations, satellite communications, repeaters, broadcasting, and military communication systems, enabling simultaneous transmission and reception on shared antennas while maintaining high isolation between Tx and Rx paths.

Key Features

• High isolation up to 95 dB, ensuring clean Tx/Rx separation
• Low insertion loss design for maximum signal efficiency
• Wide frequency coverage: 223 MHz to 16.2 GHz
• Standard N-K / SMA-K / Waveguide interfaces for easy integration
• Rugged aluminium cavity construction, excellent heat dissipation
• Surface black paint treatment, corrosion and aging resistant
• Custom frequency bands and isolation levels available on request

Technical Specifications

The following table lists all HS Series Duplexer models. For frequencies and specifications not listed, please contact us for custom orders.

产品型号 Model	工作频率 Freq. Range	插入损耗 Insertion Loss	驻波 VSWR	隔离度 Isolation	接口类型 Conn. Type	物理尺寸 Dimension
HS-DX-12M-60	704-716 / 734-746 MHz	1 dB	1.4	60 dB	N-K	140×130×40 mm
HS-DX-3M-80	223-226 / 232-235 MHz	2 dB	1.3	80 dB	SMA-K	182×138×101 mm
HS-DX-24M-80	885-909 / 930-954 MHz	1.3 dB	1.3	80 dB	SMA-K	282×70×56 mm
HS-DX-10M-80	880-915 / 825-860 MHz	2 dB	1.3	80 dB	SMA-K	182×138×90 mm
HS-DX-35M-55	825-835 / 870-880 MHz	1.6 dB	1.4	55 dB	SMA-K	256×80×60 mm
HS-DX-75M-80	1710-1785 / 1805-1880 MHz	1.8 dB	1.5	80 dB	SMA-K	192×116×40 mm
HS-DX-60M-90	1850-1910 / 1930-1990 MHz	1.8 dB	1.6	90 dB	N-K	124×105×40 mm
HS-DX-60M-80	1920-1980 / 2110-2170 MHz	0.8 dB	1.5	80 dB	N-K	165×55×48 mm
HS-DX-30M-60A	5.72-5.75 / 5.81-5.84 GHz	2.5 dB	1.5	60 dB	SMA-K	94×30×26 mm
HS-DX-30M-60B	5.80-5.83 / 5.86-5.89 GHz	2 dB	1.5	60 dB	SMA-K	158×130×30 mm
HS-DX-120M-90	12.81-12.93 / 13.07-13.19 GHz	1.8 dB	1.5	90 dB	BJ120	137×92×30 mm
HS-DX-126M-65	14.23-14.87 / 15.23-15.54 GHz	1.2 dB	1.2	65 dB	BJ140	210×45×30 mm
HS-DX-600M-95	14.2-14.8 / 15.6-16.2 GHz	0.7 dB	1.25	95 dB	SMA-K	100×30×30 mm

Connector & Interface Reference

Connector Type	Description	Typical Application
N-K	Standard N-type female connector, 50Ω	Base station, 700-2700 MHz
SMA-K	Standard SMA female connector, 50Ω	Lab / sub-6 GHz systems
BJ120 (WR75)	Waveguide flange, Ku band	Satellite comms, 10-15 GHz
BJ140 (WR62)	Waveguide flange, Ku/Ka band	Satellite comms, 14-17 GHz

Ordering Information

• Model naming: HS-DX-{BW}M-{Isolation}, e.g. HS-DX-60M-90 = 60 MHz bandwidth, 90 dB isolation.
• Connector codes: N = N-type, S = SMA, W = Waveguide.
• Custom frequency bands, isolation levels, and connector types are available on request.
