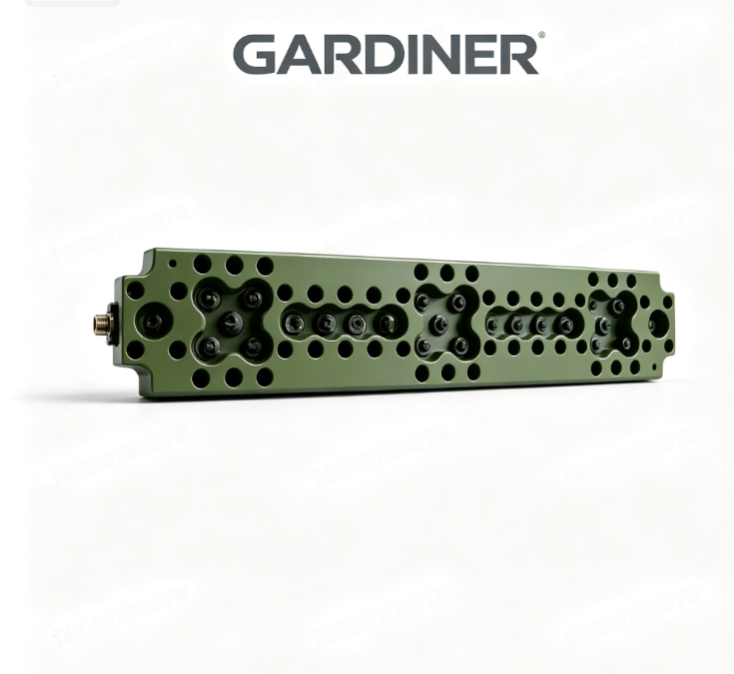

Bandstop Filters/Customised 200MHz-68GHz Cavity Bandstop Filters
Original price was: ¥9,800.00.¥4,500.00Current price is: ¥4,500.00.
CompareDescription
| Model | Freq.Range | Insertion
loss |
Passband | Passband | Stopband | Conn.Type | Dimension |
| HS-BSF275MFN | 272-278MHz | 4dB | DC-271MHz | 279-870MHz | 45dB | N-K | 270*150*100mm |
| HS-BSF315MNN | 314-316MHz | 2dB | DC-312MH | 318-800MHz | 40dB | N-K | 400*300*255mm |
| HS-BSF451MFN | 447-455MHz | 1.5dB | DC-443MHz | 459-850MHz | 45d8 | N-K | 200*150*100mm |
| HS-BSF806MNN | 791-821MHz | 2.5dB | DC-763MHz | 829-2000MHz | 60dB | N-K | 324*108*70mm |
| HS-BSF836.5MNN | 824-849MHz | 1.5dB | DC-809MHz | 864-2250MHz | 60d8 | N-K | 244*80*62mm |
| HS-BSF840MNN | 835-845MHz | 1.5cB | DC-821MHz | 851-1970MHz | 45dB | N-K | 180*60*50mm |
| HS-BSF875MNN | 870-880MHz | 2.5dB | DC-860MHz | 890-3000MHz | 60dB | SMA-K | 300*150*62mm |
| HS-BSF945MNN | 930-960MHz | 2d8 | DC-920MHz | 970-3000MHz | 60dB | N-K | 322*114*54mm |
| HS-BSP905.5MNN | 851-960MHz | 2.5dB | DC-830MHz | 980-2000MHz | 30dB | N-K | 255*155*60mm |
| HS-BSF1747.5MSN | 1710-1785MHz | 1.5dB | DC-1690MHz | 1805-3300MHz | 60dB | SMA-K | 320*72*55mm |
| HS-BSF1842.5MNN | 1805-1880MHz | 1.5dB | DC-1785MHz | 1900-3000MHz | 50dB | N-K | 398*78*40mm |
| HS-BSF2GSN | 1880-1920MHz | 1.5dB | DC-1830MHz | 1.93-4GHz | 60dB | N-K | 320*72*55mm |
| HS-BSF1.88GNN | 1850-1910MHz | 1.5dB | DC-1830MHz | 1930-4000MHz | 60dB | N-K | 320*72*65mm |
| HS-BSF1960MSN | 1930-1990MHz | 3dB | DC-1920MHz | 2-3GHz | 70dB | N-K | 240*75*54mm |
| HS-BSF2350MSN | 2.3-2.4GHz | 3dB | DC-2234MHz | 2480-4000MHz | 60dB | SMA-K | 190*47*45mm |
| HS-BSF2595MNN | 2575-2615MHz | 3dB | DC-2565MHz | 2624-4000MHz | 50dB | N-K | 240*75*54mm |
| HS-BSF1985MNN | 1800-2170MHz | 2.5dB | DC-1770MHz | 2200-4000MHz | 30dB | N-K | 380*115*45mm |
| HS-BSF6.08GSN | 5.78-6.38GHz | 3dB | DC-5600MHz | 6.78-18MHz | 40dB | SMA-K | 77*15*15mm |
| HS-BSF7.9GWN | 7.66-8.14GHz | 1dB | DC-6.9GHz | 8.8GHz-10GHz | 50dB | BJ84 | 100*48*48mm |
| HS-BSF68GWN | 68.1-67.9 GHz | 1dB | 50-67.5GHz | 68.5-75GHz | 60dB | V Waveguide | 80*40*40mm |
