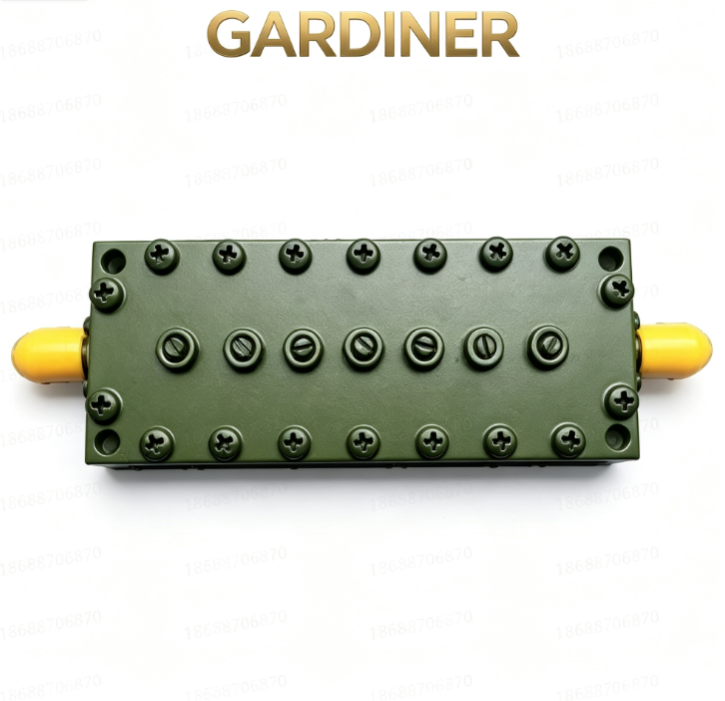

DC-40GHz Low Pass Filters,DC-40GHz低通滤波器

DC-40GHz Low Pass Filters,DC-40GHz低通滤波器

Compare
Category:

Description

Model Freq.Range Insertion

loss

 VSWR Stopband rejection Conn.Type Dimension
HS-LPFIGSN DC-1GHz 1.0dB 1.8 ≥50dB@1.2-3GHz SMA-K 130*65*13mm
HS-LPF2GSN DC-2GHz 1.5dB 1.5 ≥50dB@4-8GHz SMA-K 74*18*15mm
HS-LPF2.7GSN DC-2.7GHz 0.7dB 2 ≥90dB@4.5-8.4GHz SMA-K 130*65*13mm
HS-LPF3GSN DC-3GHz 1.2dB 2 ≥45dB@4.604-24.8GHz SMA-K 63*15*16mm
HS-LPF4GSN DC-4GHz 0.64dB 2 ≥50dB@5-922GHz SMA-K 130*65*13mm
HS-LPF5GSN DC-5GHZ 1.2 2.0 ≥50dB@5.8-13GHz SMA-K 33*25*13mm
HS-LPF6GSN DC-6GHZ 1.57dB 2.0 ≥50dB@6.9-14.5GHz SMA-K 33*25*13mm
HS-LPF7GNN DC-7GHz 1.62dB 2 ≥50dB@7.73-9.32GHz N-K 141*24*26mm
HS-LPF10GSN DC-10GHz 2dB 2 ≥40dB@12-18GHz SMA-K 105*16*12mm
HS-LPF11GHz DC-11GHz 2dB 1.5 ≥35dB@12G  ≥55dB@27-37G SMA-K 170*20*17mm
HS-LPF11.5GS

N

 DC-11.5GHz 2dB 1.5 ≥45dB@12.8-13.3G ≥80dB@13.7-24G SMA-K 80*20*17mm
HS-LPF13GSN DC-13GHz 1.5dB 1.8 ≥50dB@15-20GHz SMA-K 40*23*13mm
HS-LPFI6GKN DC-16GHz 0.78dB 2 ≥50dB@16.7-27.65 290mm-K 46*14*12
HS-LPF18GKN DC-18GHz 1.67dB 2 ≥50dB@20-28GHz 2.90mm-K 46*14*12
HS-LPF20GKN DC-20GHz 1.65dB 2 ≥50dB@22-28GHz 2.92mm-K 46*14*12
HS-LPF26.5GK

N

 DC-26GHz 1dB 2 ≥60dB@68GHz 2.92mm-K 46*14*12
