Alto S-band Smart Amplifier Module with low noise, high linearity, and variable gain The S-band smart low noise amplifier module is designed to work in the Genus 1U chassis series, operating over 850-3150 MHz. The module has low noise, high linearity, +42 to 0dB gain range with variable gain. The chassis has the capacity 16 amplifier modules. Chassis Specification Dimensions/Weight/Colour 1U high x 550mm deep x 19″ wide / Capacity 17 module slots. Note: Actual modules may require >1 slot. Refer to required module spec table. Temperature Operating: 0˚C to +45˚C Storage: -20˚C to +75˚C Location/Humidity/Altitude Indoor use only / 20 to 90% non-condensing / 2,000m AMSL (Operational) 8,000m AMSL (Storage) Above Mean Sea Level Control & Monitoring Local: HMI, capacitive touch screen Remote: Ethernet via RJ45, 10BaseT/100 BaseTx. ETL TCP/IP, SNMPv2/3, HTTPS & built-in web server. HMI and CPU field replaceable. MTTR 20 minutes (15 minutes to retrieve spare part and 5 mins to replace). Applies to LRUs only and assumed in-house stock. AC Input/Consumption 85-264Vac 50/60Hz / 275W max. consumption at steady state PSU Redundancy Dual redundant and alarmed. Diode OR. Hot swappable. Input & Output Ports Dependant upon module fitted

Alto L-band AGC Amplifier Module with low noise, high linearity, variable gain and slope control L-band Automatic Gain Control (AGC) amplifier module. Designed to be housed in Genus 2U 19″ chassis. It operates over 850-2150 MHz in either AGC mode, where it automatically controls its own gain to maintain a user-set output level while the input level varies, or in manual mode where the user may set the gain directly. Positive slope compensation between 0dB (flat response) and +6dB, as well as the attack & decay times for the AGC function are factory settable. Chassis Specification Dimensions/Weight/Colour 2U high x 550mm deep x 19″ wide / Capacity 17 module slots. Note: Actual modules may require >1 slot. Refer to required module spec table. Temperature Operating: 0˚C to +45˚C Storage: -20˚C to +75˚C Location/Humidity/Altitude Indoor use only / 20 to 90% non-condensing / 2,000m AMSL (Operational) 8,000m AMSL (Storage) Above Mean Sea Level Control & Monitoring Local: HMI, capacitive touch screen Remote: Ethernet via RJ45, 10BaseT/100 BaseTx. ETL TCP/IP, SNMPv2/3, HTTPS & built-in web server. HMI and CPU field replaceable. MTTR 20 minutes (15 minutes to retrieve spare part and 5 mins to replace). Applies to LRUs only and assumed in-house stock. AC Input/Consumption 85-264Vac 50/60Hz / 275W max. consumption at steady state PSU Redundancy Dual redundant and alarmed. Diode OR. Hot swappable. Input & Output Ports Dependant upon module fitted

Alto S-band AGC Amplifier Module with low noise, variable gain and slope control S-band Automatic Gain Control (AGC) amplifier module. Designed to be housed in Genus 2U 19″ chassis. It operates over 2200-2300 MHz in either AGC mode, where it automatically controls its own gain to maintain a user-set output level while the input level varies, or in manual mode where the user may set the gain directly. The attack & decay times for the AGC function are factory settable. Chassis Specification Dimensions/Weight/Colour 2U high x 550mm deep x 19″ wide / Capacity 17 module slots. Note: Actual modules may require >1 slot. Refer to required module spec table. Temperature Operating: 0˚C to +45˚C Storage: -20˚C to +75˚C Location/Humidity/Altitude Indoor use only / 20 to 90% non-condensing / 2,000m AMSL (Operational) 8,000m AMSL (Storage) Above Mean Sea Level Control & Monitoring Local: HMI, capacitive touch screen Remote: Ethernet via RJ45, 10BaseT/100 BaseTx. ETL TCP/IP, SNMPv2/3, HTTPS & built-in web server. HMI and CPU field replaceable. MTTR 20 minutes (15 minutes to retrieve spare part and 5 mins to replace). Applies to LRUs only and assumed in-house stock. AC Input/Consumption 85-264Vac 50/60Hz / 275W max. consumption at steady state PSU Redundancy Dual redundant and alarmed. Diode OR. Hot swappable. Input & Output Ports Dependant upon module fitted

Alto L-band Redundant Amplifier Module with low noise, high linearity, variable gain and slope control L-Band redundant amplifier module. Designed to be housed in Genus 2U 19″ chassis. It operates over 850-2450 MHz. The module has low noise, high linearity, +45 to +15dB gain range with variable gain control. The chassis has the capacity 16 amplifier modules. Positive slope compensation between 0dB (flat response) and +8dB. Chassis Specification Dimensions/Weight/Colour 2U high x 550mm deep x 19″ wide / Capacity 17 module slots. Note: Actual modules may require >1 slot. Refer to required module spec table. Temperature Operating: 0˚C to +45˚C Storage: -20˚C to +75˚C Location/Humidity/Altitude Indoor use only / 20 to 90% non-condensing / 2,000m AMSL (Operational) 8,000m AMSL (Storage) Above Mean Sea Level Control & Monitoring Local: HMI, capacitive touch screen Remote: Ethernet via RJ45, 10BaseT/100 BaseTx. ETL TCP/IP, SNMPv2/3, HTTPS & built-in web server. HMI and CPU field replaceable. MTTR 20 minutes (15 minutes to retrieve spare part and 5 mins to replace). Applies to LRUs only and assumed in-house stock. AC Input/Consumption 85-264Vac 50/60Hz / 275W max. consumption at steady state PSU Redundancy Dual redundant and alarmed. Diode OR. Hot swappable. Input & Output Ports Dependant upon module fitted

Alto S-band Redundant Amplifier Module with low noise, high linearity, variable gain and slope control The S-Band, hot swap, low noise & high linearity redundant amplifier is designed to work in the Genus 2U chassis series, operating over 850 to 2450MHz. The module has 0 to 44dB of variable gain range and slope control, RF detect . The chassis has the capacity 16 amplifier modules. Other modules types are also available, these can be mixed and housed in the Genus chassis. Chassis Specification Dimensions/Weight/Colour 2U high x 550mm deep x 19″ wide / Capacity 17 module slots. Note: Actual modules may require >1 slot. Refer to required module spec table. Temperature Operating: 0˚C to +45˚C Storage: -20˚C to +75˚C Location/Humidity/Altitude Indoor use only / 20 to 90% non-condensing / 2,000m AMSL (Operational) 8,000m AMSL (Storage) Above Mean Sea Level Control & Monitoring Local: HMI, capacitive touch screen Remote: Ethernet via RJ45, 10BaseT/100 BaseTx. ETL TCP/IP, SNMPv2/3, HTTPS & built-in web server. HMI and CPU field replaceable. MTTR 20 minutes (15 minutes to retrieve spare part and 5 mins to replace). Applies to LRUs only and assumed in-house stock. AC Input/Consumption 85-264Vac 50/60Hz / 275W max. consumption at steady state PSU Redundancy Dual redundant and alarmed. Diode OR. Hot swappable. Input & Output Ports Dependant upon module fitted

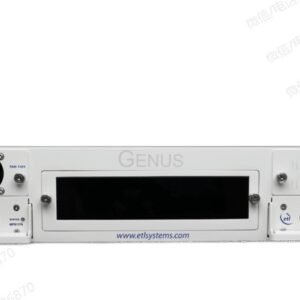

Alto K-Band SMART Attenuator Module with adjustable slope and settable output level K-Band wide band SMART attenuator module. Designed to be housed in Genus 2U 19″ chassis. It operates over 10-15 GHz with a variable attenuation from 0 to 50dB. The module is hot-swappable. Chassis Specification Dimensions/Weight/Colour 2U high x 550mm deep x 19″ wide / Capacity 17 module slots. Note: Actual modules may require >1 slot. Refer to required module spec table. Temperature Operating: 0˚C to +45˚C Storage: -20˚C to +75˚C Location/Humidity/Altitude Indoor use only / 20 to 90% non-condensing / 2,000m AMSL (Operational) 8,000m AMSL (Storage) Above Mean Sea Level Control & Monitoring Local: HMI, capacitive touch screen Remote: Ethernet via RJ45, 10BaseT/100 BaseTx. ETL TCP/IP, SNMPv2/3, HTTPS & built-in web server. HMI and CPU field replaceable. MTTR 20 minutes (15 minutes to retrieve spare part and 5 mins to replace). Applies to LRUs only and assumed in-house stock. AC Input/Consumption 85-264Vac 50/60Hz / 275W max. consumption at steady state PSU Redundancy Dual redundant and alarmed. Diode OR. Hot swappable. Input & Output Ports Dependant upon module fitted

Alto K-Band Smart Amplifier Module wideband, low noise, high linearity and variable gain K-band wide band SMART low noise amplifier module. Designed to be housed in Genus 2U 19″ chassis. It operates over 5-18 GHz with a variable gain from 0 to 26dB. The module is hot-swappable and can be used in redundant configurations using external cabling. Chassis Specification Dimensions/Weight/Colour 2U high x 550mm deep x 19″ wide / Capacity 17 module slots. Note: Actual modules may require >1 slot. Refer to required module spec table. Temperature Operating: 0˚C to +45˚C Storage: -20˚C to +75˚C Location/Humidity/Altitude Indoor use only / 20 to 90% non-condensing / 2,000m AMSL (Operational) 8,000m AMSL (Storage) Above Mean Sea Level Control & Monitoring Local: HMI, capacitive touch screen Remote: Ethernet via RJ45, 10BaseT/100 BaseTx. ETL TCP/IP, SNMPv2/3, HTTPS & built-in web server. HMI and CPU field replaceable. MTTR 20 minutes (15 minutes to retrieve spare part and 5 mins to replace). Applies to LRUs only and assumed in-house stock. AC Input/Consumption 85-264Vac 50/60Hz / 275W max. consumption at steady state PSU Redundancy Dual redundant and alarmed. Diode OR. Hot swappable. Input & Output Ports Dependant upon module fitted

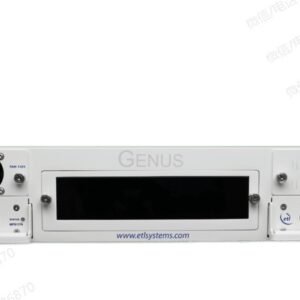

Alto L-band Smart Amplifier Module with low noise, high linearity, variable gain and slope control L-band Smart high linearity amplifier designed to work in the Genus 2U chassis range operating over 850 to 2150MHz. The amplifier has three modes of operation: Power Mode – in this mode attenuation is adjusted at the input of the amplifier when gain is adjusted. This means that linearity is maintained, but noise figure increases as gain decreases. Noise Mode – in this mode attenuation is adjusted at the output of the amplifier when gain is adjusted. This means that noise figure is optimised, but linearity decreases as gain decreases. Compromise Mode – in this mode attenuation is applied equally at the input and the output of the amplifier when gain is adjusted. Neither linearity nor noise figure is favoured. Chassis Specification Dimensions/Weight/Colour 2U high x 550mm deep x 19″ wide / Capacity 17 module slots. Note: Actual modules may require >1 slot. Refer to required module spec table. Temperature Operating: 0˚C to +45˚C Storage: -20˚C to +75˚C Location/Humidity/Altitude Indoor use only / 20 to 90% non-condensing / 2,000m AMSL (Operational) 8,000m AMSL (Storage) Above Mean Sea Level Control & Monitoring Local: HMI, capacitive touch screen Remote: Ethernet via RJ45, 10BaseT/100 BaseTx. ETL TCP/IP, SNMPv2/3, HTTPS & built-in web server. HMI and CPU field replaceable. MTTR 20 minutes (15 minutes to retrieve spare part and 5 mins to replace). Applies to LRUs only and assumed in-house stock. AC Input/Consumption 85-264Vac 50/60Hz / 275W max. consumption at steady state PSU Redundancy Dual redundant and alarmed. Diode OR. Hot swappable. Input & Output Ports Dependant upon module fitted
