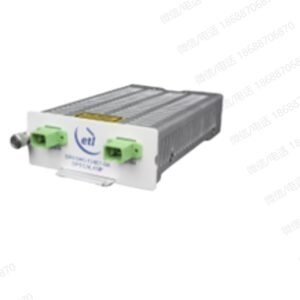

StingRay RF over Fibre GENUS Optical Amplifier Module Dense Wavelength Division Multiplexing (DWDM) The StingRay range of optical amplifiers compensate for module loss and boost the optical power to extend the transmission distance of signals carried up to 500 km. Optical amplifiers should be used with StingRay DWDM GENUS RF over fibre units, which are designed to provide compact fibre links, with up to forty wavelengths on a single fibre cable. The modules benefit from a high and wide dynamic range with automatic link optimisation ensuring high quality RF over fibre transmission. The StingRay optical amplifier system comprises of either a pre-amplifier module, a post-amplifier module or an inline amplifier module and designed to operate within the 2U or ODU GENUS series chassis. Signal Boost Up to 22dBm output power 1500nm typical operating wavelength 500km Transmission Distance when used with StingRay DWDM fibre modules
-

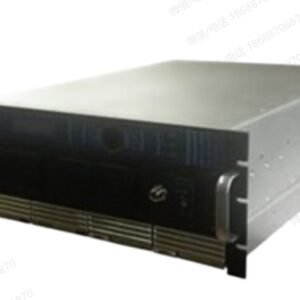

The IRT Intelligent Power Block-Up Converter Series is smaller, lighter and more powerful 400W/600W C-Band Rack Mount BUC. This series allows significant size and weight reduction and at the same time substantially improves thermal efficiency, which leads to higher reliability and longer MTBF. Using patent pending Z-combining method and advanced GaN technology, this series has truly outstanding power density – up to 600W Psat in 5RU light compact package. The IRT 400W/600W C-Band Rack Mount BUC features best in class RF characteristics, RF sample port, true RMS power measurements, extensive monitor and control capabilities enabled via Ethernet, Serial and/or Analog Interfaces. Redundant truly hot swappable power supply gives even higher overall reliability. Options Input and Output RF sample ports Automatic Level Control (ALC) Available in different frequency options Features Up to 600W PSAT Output Power in 19” Rack-mount 5RU only! Superior RF performance: High Linearity o PSAT up to 58 dBm Wide dynamic range of Gain Control RF Overdrive Protection Field upgradable software Redundant Hot Swappable Power Supply Configuration via RS-232 serial console, packet protocol RS-485- User friendly HTTP based GUI and SNMP User friendly front panel with menu driven display Redundant Ready – No external redundancy controller required Built-in power metering Full VSWR protection
-

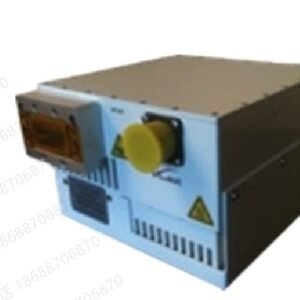

The STS16/20/25/40/50/80/100X series is one of the smallest, lightweight efficient units available today. With best in class RF characteristics, embedded output isolator, extensive monitor and control capabilities enabled via Ethernet, Serial and/or Analogue interfaces. Designed for portable, mobile and VSAT on the move applications. Its small size and weight allows direct feed horn mounting, which makes it a most economical solution for fixed VSAT applications. Options Internal 10MHz Reference clock Antenna Mounting Kit Built in auto-ranging AC power supply Features Up to 100W Psat in this super compact lightweight package 2.5Kg 16.5 x 18.5 x 11.5 cms. Ideal for feed horn mounting Low power consumption Superior RF performance: Phase noise 10dB better than IESS308/309 P1dB of 46dBm min Spurious below –60dBc Wide dynamic range of Gain control Output power measurement – True RMS detector Integrated L-Band to X-Band up-converter Built-in Output Isolator provides full output VSWR protection Configuration via RS-232 serial console, packet protocol RS-485 – User friendly HTTP based GUI and SNMP optional 48VDC isolated power supply Redundant ready with no external controller Field upgradeable software Status LED
-

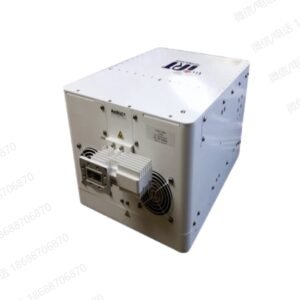

Smaller, lighter and more powerful SSPA Series allows significant high power BUC / SSPB / SSPA while substantially improving thermal efficiency, leading to higher reliability and longer MTBF. Powered by GaN technology, the 300W to 500W X-Band SSPA Series are very compact, light and extremely powerful. Weighing only 56lbs at 500W output power, this new X-band product family is the most powerful and feature rich for its size. Featuring best in class RF characteristics, true RMS power measurements, extensive monitor and control capabilities enabled via Ethernet, Serial and/or Analog Interfaces. The remarkably compact size and high thermal efficiency results in overall system size and cost reduction making it the ideal candidate for mobile and fixed VSAT applications. Options ALC option RX Reject Filter Antenna Mounting kit 1:1 and 1:2 Redundancy Kit Remote Control Panel Features Extremely high power density Up to 500W Psat in 18.5” x 13.5” x 10” Light weight – 56lbs Superior RF performance Highest Linearity at small back – off Spurious emission below -60 dBc Wide range Gain Control RF Overdrive Protection Extensive M&C capability Serial: RS 232 & RS 485 Ethernet: embedded Web browser (HTTP) & SNMPv3 support Built In Output Isolator provides full output VSWR Protection Input and output True RMS power detection Field upgradable software Redundancy ready with no need of external controller Status LED Analogue Interface
-
Smaller, lighter and more powerful, this series allows significant high-power BUC / SSPA size and weight reduction and at the same time substantially improves thermal efficiency, which leads to higher reliability and longer MTBF. The 2.5KW C-Band powered by GaN technology series are compact, lightweight and extremely powerful. Weighing 100KG at 2.5KW output power, this new C-band product family is the most powerful and feature rich for its size. This series features best in class RF characteristics, RF sample port, true RMS power measurements, extensive monitor and control capabilities enabled via Ethernet, Serial and/or Analog Interfaces. The remarkably compact size and high thermal efficiency results in overall system size and cost reduction. Options Internal 10MHz Reference clock Automatic Level Control (ALC) Antenna Mounting Kit 1:1 and 1:2 Redundancy Kit Remote Control Panel Features Extremely High Power Density Up to 2.5KW Psat in 61 x 51 x 32 cms Superior RF performance Superior Phase Noise: 8 dB better than IESS308/309 recommendation Spurious emission below -60 dBc Wide range Gain Control Highest Linearity at small back-off RF Overdrive Protection Redundancy ready with no external controller required Status LED Analogue Interface Available in different frequency options Super-extended 5.85-6.725GHz Palapa 6.425-6.725GHz Insat 6.725-7.025GHz Extensive M&C capability Serial: RS 232 & RS 485 Ethernet: embedded Web browser (HTTP) & SNMPv3 support Input and output True RMS power detection Field upgradable software
-

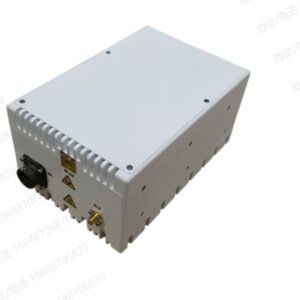

The STS20/40Ka Band series offers superior performance and is one of the smallest, lightweight efficient units available today. The series also benefits from the Quad-Band/Quad LO allowing the complete coverage of the commercial and military Ka Band in a single unit. With best in class RF characteristics, RF sample port, true RMS power measurements, extensive monitor and control capabilities enabled via Ethernet, Serial and/or Analogue interfaces. Designed for portable, mobile and VSAT on the move applications. Its small size and weight allows and high thermal efficiency, which makes it a most economical solution for fixed VSAT applications. Options Internal / Autosense 10 MHz Reference clock Antenna Mounting Kit Built in auto-ranging AC power supply (90-230V AC) ALC 1:1 and 1:2 Redundancy Kit Features Up to 40W power in this super compact and lightweight package Superior RF performance Phase noise 8dB better than IESS308/309 Spurious emission below –60dBc Highest Linearity at small back-of Wide dynamic range of Gain Control Quad Band in one unit with Switchable LO 27-28GHz / 28-29GHz / 29-30GHz / 30-31GHz Configuration via RS-232 serial console, packet protocol RS-485 – User friendly HTTP based GUI and SNMP optional Redundant ready with no external controller required Field upgradeable software Status LED Ideal for feed horn mounting Low power consumption
-

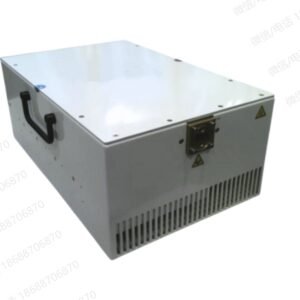

The STS250/300/400/500 Ku Band series is powered by GaN technology and is one of the smallest, lightweight efficient units available today. With best in class RF characteristics, RF sample port, true RMS power measurements, extensive monitor and control capabilities enabled via Ethernet, Serial and/or Analogue interfaces. Designed for portable, mobile and VSAT on the move applications. Its small size and weight allows and high thermal efficiency, which makes it a most economical solution for fixed VSAT applications. Options Internal 10MHz Reference BUC or SSPA optional Automated Level Control (ALC) option Antenna Mounting Kit Switchable LO option – Standard and Extended Ku-Band in one unit External Rackmount Remote M&C Panel Features Extremely high power density – Up to 500W Psat in 34Kg, 48 x 29 x 24.25 cms. Superior RF performance: Phase noise 8-10dB better than IESS308/309 Psat up to 56 dBm Spurious below –60dBc High Linearity Wide dynamic range of Gain control RF overdrive protection Input and Output True RMS power detection Configuration via RS-232 serial console, packet protocol RS-485 – User friendly HTTP based GUI and SNMP optional Redundant ready with no external controller required Field upgradeable software Status LED Field replaceable detachable power supply
-

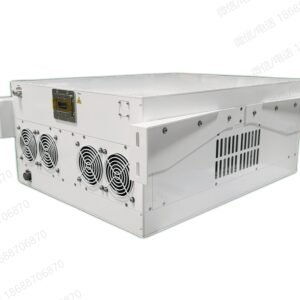

Smaller, lighter and more powerful SSPA Series allows significant high power BUC / SSPB / SSPA while substantially improving thermal efficiency, leading to higher reliability and longer MTBF. Powered by GaN technology, the 600W to 1000W Ku-Band SSPA Series are very compact, light and extremely powerful. Weighing only 75 lbs at 500W and 125lbs at 1000W output power, this new Ku-band 600W to 1000W product family is the most powerful and feature rich for its size. Featuring best in class RF characteristics, true RMS power measurements, extensive monitor and control capabilities enabled via Ethernet, Serial and/or Analog Interfaces. The remarkably compact size and high thermal efficiency results in overall system size and cost reduction making it the ideal candidate for mobile and fixed VSAT applications. Options Internal 10MHz Reference clock Autosense 10 MHz Reference clock Automatic Level Control (ALC) Antenna Mounting Kit 1:1 and 1:2 Redundancy Kit Remote Control Panel Features Extremely High Power Density Lightweight compact package up to 1000W output power Superior RF performance Superior Phase Noise: 8 dB better than IESS308/309 recommendation Spurious emission below -60 dBc Wide range Gain Control Highest Linearity at small back-off RF Overdrive Protection Redundancy ready with no external controller required Status LED Analogue Interface Available in different frequency options C-Band-Super-ext, Palapa, Insat Ku-Band – Ext and Stand Ku-Band in one unit; switchable LO Extensive M&C capability Serial: RS 232 & RS 485 Ethernet: embedded Web browser (HTTP) & SNMPv3 support Available in GaAs configuration Input and output True RMS power detection Field upgradable software
