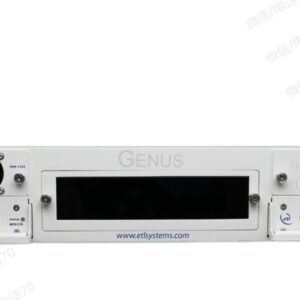

Alto S-band Smart Amplifier Module with low noise, high linearity, variable gain and slope control The S-Band, hot swap, low noise & high linearity amplifier is designed to work in the Genus 1U chassis series, operating over 850 to 2450MHz. The module has 0 to 44dB of variable gain range and slope control, RF detect. The chassis has the capacity 16 amplifier modules. Other modules types are also available, these can be mixed and housed in the Genus chassis. Chassis Specification Dimensions/Weight/Colour 2U high x 550mm deep x 19″ wide / Capacity 17 module slots. Note: Actual modules may require >1 slot. Refer to required module spec table. Temperature Operating: 0˚C to +45˚C Storage: -20˚C to +75˚C Location/Humidity/Altitude Indoor use only / 20 to 90% non-condensing / 2,000m AMSL (Operational) 8,000m AMSL (Storage) Above Mean Sea Level Control & Monitoring Local: HMI, capacitive touch screen Remote: Ethernet via RJ45, 10BaseT/100 BaseTx. ETL TCP/IP, SNMPv2/3, HTTPS & built-in web server. HMI and CPU field replaceable. MTTR 20 minutes (15 minutes to retrieve spare part and 5 mins to replace). Applies to LRUs only and assumed in-house stock. AC Input/Consumption 85-264Vac 50/60Hz / 275W max. consumption at steady state PSU Redundancy Dual redundant and alarmed. Diode OR. Hot swappable. Input & Output Ports Dependant upon module fitted

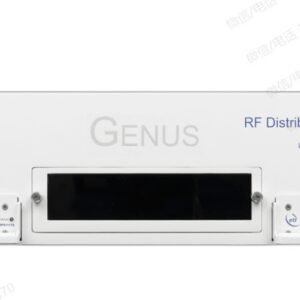

Alto S-band Redundant Amplifier Module with variable gain & slope, internal amplifier redundancy, RF detection & LNB powering – for 3U GENUS chassis The Genus is a new generation of equipment for the ground segment to meet today’s and future ground segment V/HTS requirements. The Genus Habitat accommodates up to 17 RF modules. These can be inserted whilst the shelf is in service giving excellent levels of flexibility and resilience. Chassis Specification Dimensions/Weight/Colour 3U high x 550mm deep x 19″ wide / Capacity 17 module slots. Note: Actual modules may require >1 slot. Refer to required module spec table. Temperature Operating: 0˚C to +45˚C Storage: -20˚C to +75˚C Location/Humidity/Altitude Indoor use only / 20 to 90% non-condensing / 2,000m AMSL (Operational) 8,000m AMSL (Storage) Above Mean Sea Level Control & Monitoring Local: HMI, capacitive touch screen Remote: Ethernet via RJ45, 10BaseT/100 BaseTx. ETL TCP/IP, SNMPv2/3, HTTPS & built-in web server. HMI and CPU field replaceable. MTTR 20 minutes (15 minutes to retrieve spare part and 5 mins to replace). Applies to LRUs only and assumed in-house stock. AC Input/Consumption 85-264Vac 50/60Hz / 275W max. consumption at steady state PSU Redundancy Dual redundant and alarmed. Diode OR. Hot swappable. Input & Output Ports Dependant upon module fitted

2-way Passive C-band Splitter/Combiner. DC block on all ports.

2-way Passive C-band Splitter/Combiner. DC block on all ports.

2-way Passive IF-band Splitter/Combiner. DC pass from Port 1 to Common, DC block on Port.

Compact: Housed in rugged compact enclosure Flexible Mounting: Tapped screw & through hole mounting options 850 – 2150 MHz: Operating frequency range. L-Band ready Port 4 to common port DC pass All other ports DC blocked All ports 10 MHz pass.

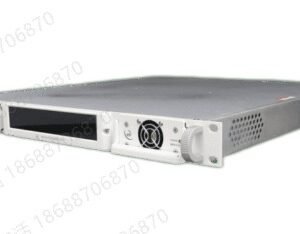

The Genus chassis has a modular design which can house any combination of compatible modules within the unit. Supplying operators with a flexible and scalable solution, that reduces spare parts and rack space requirements. The 1U chassis houses up to 17 RF modules including Amplifiers, BUC/LNB Power Supplies, Frequency Converters, Matrices, RF over Fibre, Redundancy Switches and Test Loop Translators, which can be mixed. Providing a compact 1U system that is smaller in comparison with traditional 19” solutions, which could require 2U, 3U, 4U or more to achieve the same functionality. The Genus chassis provides a cost-efficient solution with field-replaceable components. The RF modules are field-serviceable and can be inserted whilst the shelf is in service, giving excellent levels of flexibility and resilience. With additional reliability from dual redundant hot-swap power supplies & field serviceable RF modules, HMI, CPU and optional user replaceable internal and external 10MHz reference source. General Specifications Capacity Up to 17 modules Note: Actual number dependent upon module type fitted Dimensions 1U high x 550mm deep x 19″ wide Weight Colour RAL9003 White (Semi-Matte) AC Power 85-264V AC (50/60Hz) AC Consumption 150W Max. consumption at steady state PSU Dual redundant & alarmed, Diode OR, Hot-swap RF Modules Single, field replaceable Reliability MTTR 20 minutes 15 minutes to retrieve spare part and 5 mins to replace. Applies to LRUs only and assumed in house stock. MTBF Chassis >250,000 CPU >250,000 Field serviceable components RF modules, CPU & HMI, [Optional] internal & external 10MHz reference source. Hot-swap components Dual redundant power supplies Redundancy Supporting 1+1, 2+1, 3+1, 3+2, 4+2 (with GNR redundancy modules) Control & Monitoring Local Control HMI, capacitive touchscreen Remote Control & Monitoring Ethernet via RJ45, 10BaseT/100BaseTx ETL TCP/IP protocol SNMPv3 & HTTPS Built-in Web Server Environmental Operating temperature 0 to 45˚C Location Indoor use only Storage temperature -20˚C to +75˚C Not Powered Humidity 20% – 90% non-condensing Relative Humidity Altitude Operational 10,000 ft AMSL (Above Mean Sea Level) Storage 30,000 ft AMSL (Above Mean Sea Level)

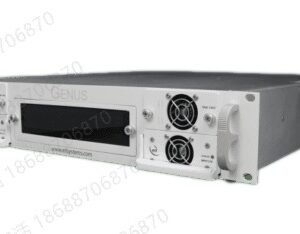

Genus Chassis Flexible & resilient RF signal management The Genus is a new generation of equipment for the ground segment to meet today’s and future ground segment V/HTS requirements. The 2U Genus chassis accommodates up to 17 RF modules. These can be inserted whilst the shelf is in service giving excellent levels of flexibility and resilience.
