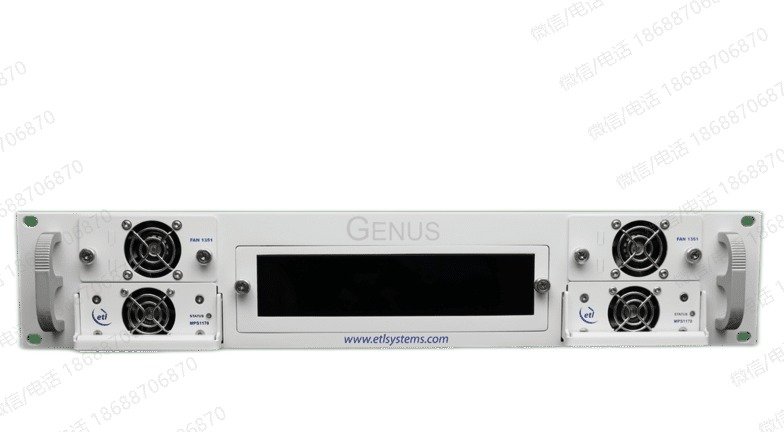

ETL Systems ALT-G2S-L1-144-XXXX Alto L-band Smart Amplifier Module
Alto L-band Smart Amplifier Module with low noise, high linearity, variable gain and slope control L-band SMART amplifier module. Designed to be housed in Genus 2U 19″ chassis. It operates over 950-2150 MHz. The module has low noise, high linearity, +24 to +0dB gain range with variable gain control. The chassis has the capacity for 16 amplifier modules. Positive slope compensation between +2dB and +9dB. Chassis Specification Dimensions/Weight/Colour 2U high x 550mm deep x 19″ wide / Capacity 17 module slots. Note: Actual modules may require >1 slot. Refer to required module spec table. Temperature Operating: 0˚C to +45˚C Storage: -20˚C to +75˚C Location/Humidity/Altitude Indoor use only / 20 to 90% non-condensing / 2,000m AMSL (Operational) 8,000m AMSL (Storage) Above Mean Sea Level Control & Monitoring Local: HMI, capacitive touch screen Remote: Ethernet via RJ45, 10BaseT/100 BaseTx. ETL TCP/IP, SNMPv2/3, HTTPS & built-in web server. HMI and CPU field replaceable. MTTR 20 minutes (15 minutes to retrieve spare part and 5 mins to replace). Applies to LRUs only and assumed in-house stock. AC Input/Consumption 85-264Vac 50/60Hz / 275W max. consumption at steady state PSU Redundancy Dual redundant and alarmed. Diode OR. Hot swappable. Input & Output Ports Dependant upon module fitted
Description
Description: Alto L-band Smart Amplifier Module with low noise, high linearity, variable gain and slope control L-band SMART amplifier module. Designed to be housed in Genus 2U 19" chassis. It operates over 950-2150 MHz. The module has low noise, high linearity, +24 to +0dB gain range with variable gain control. The chassis has the capacity for 16 amplifier modules. Positive slope compensation between +2dB and +9dB. Chassis Specification Dimensions/Weight/Colour 2U high x 550mm deep x 19" wide / Capacity 17 module slots. Note: Actual modules may require >1 slot. Refer to required module spec table. Temperature Operating: 0˚C to +45˚C Storage: -20˚C to +75˚C Location/Humidity/Altitude Indoor use only / 20 to 90% non-condensing / 2,000m AMSL (Operational) 8,000m AMSL (Storage) Above Mean Sea Level Control & Monitoring Local: HMI, capacitive touch screen Remote: Ethernet via RJ45, 10BaseT/100 BaseTx. ETL TCP/IP, SNMPv2/3, HTTPS & built-in web server. HMI and CPU field replaceable. MTTR 20 minutes (15 minutes to retrieve spare part and 5 mins to replace). Applies to LRUs only and assumed in-house stock. AC Input/Consumption 85-264Vac 50/60Hz / 275W max. consumption at steady state PSU Redundancy Dual redundant and alarmed. Diode OR. Hot swappable. Input & Output Ports Dependant upon module fitted
Alto L-band Smart Amplifier Module with low noise, high linearity, variable gain and slope control L-band SMART amplifier module. Designed to be housed in Genus 2U 19" chassis. It operates over 950-2150 MHz. The module has low noise, high linearity, +24 to +0dB gain range with variable gain control. The chassis has the capacity for 16 amplifier modules. Positive slope compensation between +2dB and +9dB.
Downloads:
Additional information
| Weight | 10 kg |
|---|---|
| Brand | ETL Systems |
| Weight (kg) | 10.00 |
