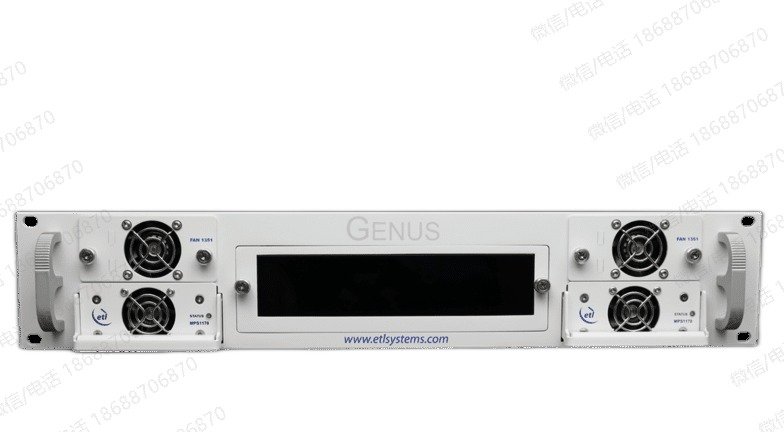

ETL Systems ALT-G2R-L1-131 Alto L-band Redundant Amplifier Module
Alto L-band Redundant Amplifier Module with low noise, high linearity, variable gain and slope control L-Band redundant amplifier module. Designed to be housed in Genus 2U 19″ chassis. It operates over 850-2150 MHz. The module has low noise, high linearity, with variable gain control. Positive slope compensation. The amplifier has three modes of operation: Power Mode – in this mode attenuation is adjusted at the input of the amplifier when gain is adjusted. This means that linearity is maintained, but noise figure increases as gain decreases. Noise Mode – in this mode attenuation is adjusted at the output of the amplifier when gain is adjusted. This means that noise figure is optimised, but linearity decreases as gain decreases. Compromise Mode – in this mode attenuation is applied equally at the input and the output of the amplifier when gain is adjusted. Neither linearity nor noise figure is favoured. Chassis Specification Dimensions/Weight/Colour 2U high x 550mm deep x 19″ wide / Capacity 17 module slots. Note: Actual modules may require >1 slot. Refer to required module spec table. Temperature Operating: 0˚C to +45˚C Storage: -20˚C to +75˚C Location/Humidity/Altitude Indoor use only / 20 to 90% non-condensing / 2,000m AMSL (Operational) 8,000m AMSL (Storage) Above Mean Sea Level Control & Monitoring Local: HMI, capacitive touch screen Remote: Ethernet via RJ45, 10BaseT/100 BaseTx. ETL TCP/IP, SNMPv2/3, HTTPS & built-in web server. HMI and CPU field replaceable. MTTR 20 minutes (15 minutes to retrieve spare part and 5 mins to replace). Applies to LRUs only and assumed in-house stock. AC Input/Consumption 85-264Vac 50/60Hz / 275W max. consumption at steady state PSU Redundancy Dual redundant and alarmed. Diode OR. Hot swappable. Input & Output Ports Dependant upon module fitted
Description
Description: Alto L-band Redundant Amplifier Module with low noise, high linearity, variable gain and slope control L-Band redundant amplifier module. Designed to be housed in Genus 2U 19" chassis. It operates over 850-2150 MHz. The module has low noise, high linearity, with variable gain control. Positive slope compensation. The amplifier has three modes of operation: Power Mode – in this mode attenuation is adjusted at the input of the amplifier when gain is adjusted. This means that linearity is maintained, but noise figure increases as gain decreases. Noise Mode – in this mode attenuation is adjusted at the output of the amplifier when gain is adjusted. This means that noise figure is optimised, but linearity decreases as gain decreases. Compromise Mode – in this mode attenuation is applied equally at the input and the output of the amplifier when gain is adjusted. Neither linearity nor noise figure is favoured. Chassis Specification Dimensions/Weight/Colour 2U high x 550mm deep x 19" wide / Capacity 17 module slots. Note: Actual modules may require >1 slot. Refer to required module spec table. Temperature Operating: 0˚C to +45˚C Storage: -20˚C to +75˚C Location/Humidity/Altitude Indoor use only / 20 to 90% non-condensing / 2,000m AMSL (Operational) 8,000m AMSL (Storage) Above Mean Sea Level Control & Monitoring Local: HMI, capacitive touch screen Remote: Ethernet via RJ45, 10BaseT/100 BaseTx. ETL TCP/IP, SNMPv2/3, HTTPS & built-in web server. HMI and CPU field replaceable. MTTR 20 minutes (15 minutes to retrieve spare part and 5 mins to replace). Applies to LRUs only and assumed in-house stock. AC Input/Consumption 85-264Vac 50/60Hz / 275W max. consumption at steady state PSU Redundancy Dual redundant and alarmed. Diode OR. Hot swappable. Input & Output Ports Dependant upon module fitted
Alto L-band Redundant Amplifier Module with low noise, high linearity, variable gain and slope control L-Band redundant amplifier module. Designed to be housed in Genus 2U 19" chassis. It operates over 850-2150 MHz. The module has low noise, high linearity, with variable gain control. Positive slope compensation. The amplifier has three modes of operation:
