RF-Design SLC4124 Standard QUAD LNB/LNA Controller

The SLC4124 is a standard LNB power supply unit featuring four internal Bias-Tees/Directional couplers with 13V, 18V and 22kHz supply for max. 4 LNB´s. The unit allows to configure all LNB´s individually, also via Web-Interface.

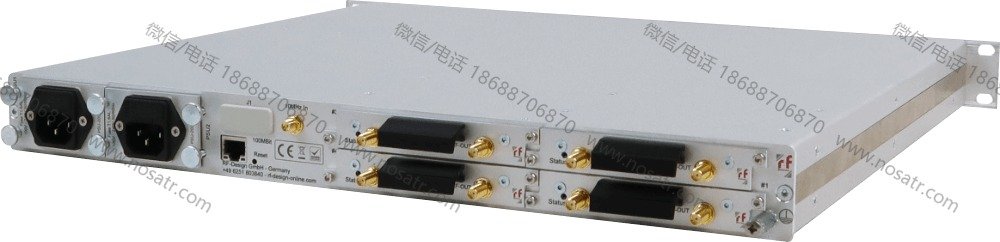

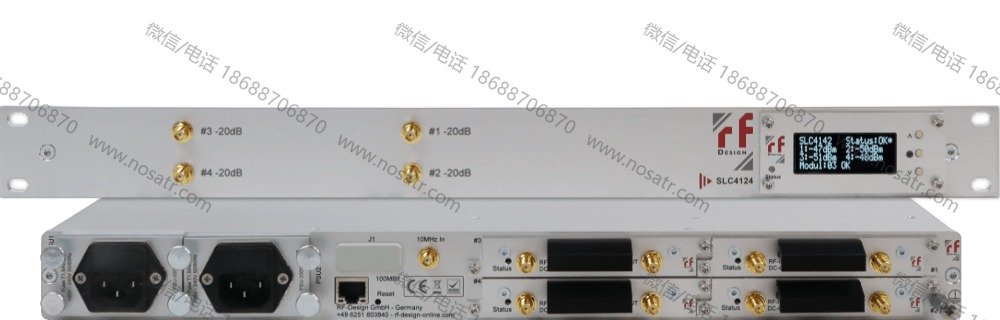

The SLC4124 is available in a 1RU/19″ rack mount chassis and also provides 1:1 hot swappable power supply redundancy. Furthermore, the unit offers RF power monitoring for every BiasTee via a 20dB measuring port located at the front of the unit.

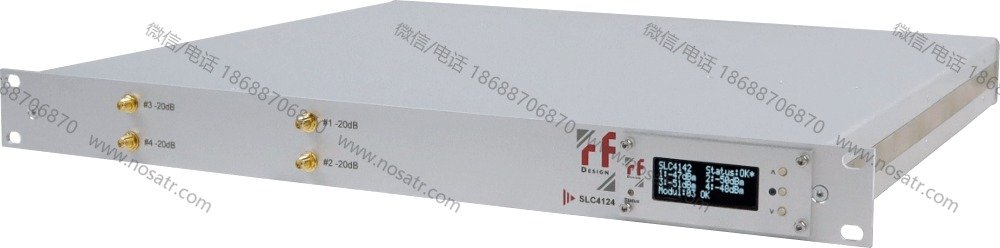

Local control can be done with front panel LC-Display, keypads and LED´s while remote access, monitoring and control can be done via 10/100Mbit LAN-Interface SNMP and WebGui.

The unit is ideally suited for LNB supply purposes in Satellite-, broadcast and broadband communication architectures like Teleports, Earth Stations, broadcast facilities and cable headend platforms.
