RF-Design QLink Quad RF Over Fiber System

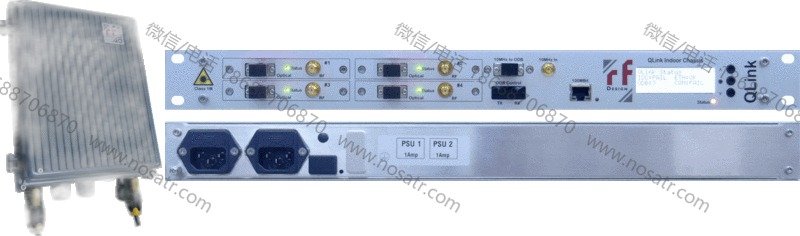

The QLink represents a Quad outdoor/indoor RF-over-Fiber system. The outdoor enclosure and the 1RU/19” rack-mount chassis can each be populated with up to 4 optical TX (transmit) or RX (receive) modules, also supporting mixed TX/RX population allowing secure and high quality optical transmission of RF signals in L-Band or extended L-Band over a distance of up to 5km. The outdoor enclosure is designed to be mounted directly at the antenna mast while the 1RU/19” indoor unit is for rack-mount design. The QLink optical link system will be assembled in-house for your individual application.

The system also features variable gain-control, RF power monitoring, laser/link monitoring and switchable LNB-supply. Additionally to that a 10MHz reference signal can be injected at the indoor unit and is also transmitted via an optical link to the outdoor chassis. An optical data-link connection between the outdoor and the indoor unit allows monitoring, management and configuration of the outdoor system. The 1RU/19” indoor rack-mount unit itself is equipped with an 100MBit Ethernet-interface supporting remote management of the overall QLink Quad RF-over-Fiber system (WebGUI, SNMP)

Bundle RF-over-Fiber System, extended L-Band 850 – 2450MHz, 1 x Outdoor Enclosure configured/populated with 1 x TX, 1 x RX , 50Ohm N(f) / 1 x 1RU/19” Indoor Chassis configured/populated with 1 x TX , 1 x RX, 50Ohm SMA(f), incl. 10MHz link.

• Option available for 2 x TX, 2 x RX , 50Ohm N(f) / 1 x 1RU/19” Indoor Chassis configured/populated with 2 x TX , 2 x RX, 50Ohm SMA(f), incl. 10MHz link.
• Option available for 4 x TX, 4 x RX , 50Ohm N(f) / 1 x 1RU/19” Indoor Chassis configured/populated with 4 x TX , 4 x RX, 50Ohm SMA(f), incl. 10MHz link.

HS-Code: 85437030
Dimension Net: each,
Weight Net: 9Kg each,
Packing: 1,00 x Karton,
Dimension: 57x54x30cm each,
Gross Weight: 10Kg each,
Total-Weight: 10Kg,
ECCN: EAR99
Remark: Please see datasheet for other RF impedance &
connectors.
