Description
Contact: Tel / WhatsApp: +86 18688706870 | Web: www.nosatr.com

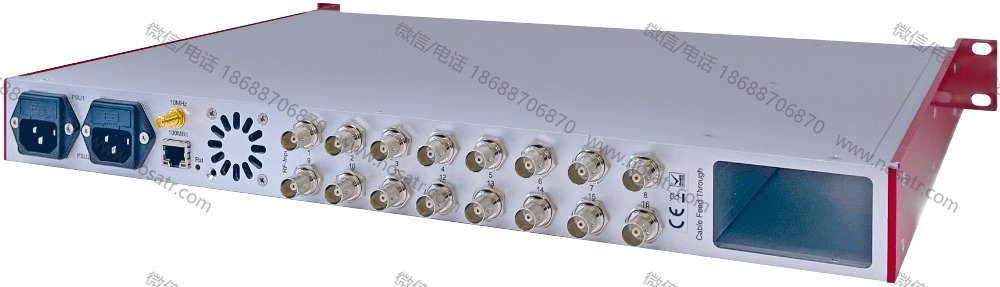

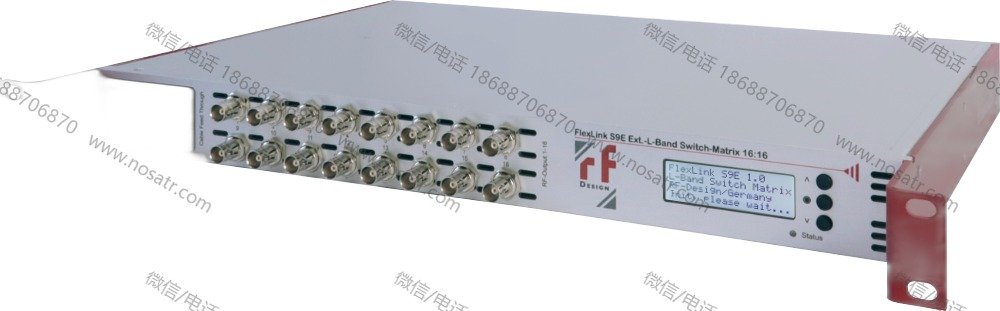

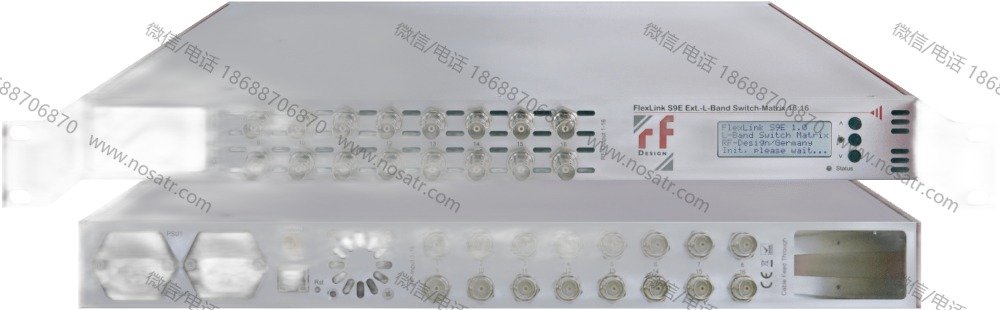

The FlexLink S9E-1616 is a professional L-Band Switch Matrix coming in a compact 1RU/19″ rack mount chassis supporting L-Band and also Extended L-Band frequency range (850 – 2450MHz), useable for Ka-Band and HTS applications. The unit comes with a 16.16 I/O configuration. It features variable gain control, slope equalization, RF power monitoring, switchable LNB-supply, 10MHz external ref. signal input and 1:1 redundant dual power supply. The unit is available with 50Ohm or 75Ohm RF connectors. A LC-Display with keypads allows easy local configuration. Remote configuration can be done via its Ethernet-Interface (WebGUI, SNMPv2c).
Features & Benefits
-
Space saving 1RU/19″ design
-
L-Band (950 – 2150MHz) and ext. L-Band (850 – 2450MHz)
-
16:16 input/output configuration
-
Available with 50Ohm or 75Ohm I/O connectors
-
Supports variable gain control
-
Features slope equalization
-
RF power monitoring
-
Threshold monitoring/alarming
-
Switchable LNB supply
-
10MHz external ref. input
-
Superior RF performance
-
Local and remote configuration
-
1:1 redundant dual power supply
The FlexLink S9E–1616 is a future proof L–Band Switch Matrix supporting extended L–Band frequency 850 – 2450MHz, making it a perfect solution also for KA–Band and HTS applications. The unit features an efficient, flexible and reliable solution for today ́s and future L–Band signal management and allows to switch/route any input to any or all outputs without limitations and interferences, while all combinations of inputs and outputs are configurable locally and remotely.
The FlexLink S9E–1616 supports variable gain control, slope equalization, RF power monitoring, Threshold monitoring/alarming, as well as 1:1 redundant dual power supply.
Furthermore, the unit features switchable LNB–supply and a 10MHz external reference signal input. Isolation, linearity and frequency response are at the highest level assuring excellent and stable operation with superior RF performance and signal quality. The FlexLink S9E–1616 has a LC–Display & keypads for user–friendly local configuration. Remote configuration and monitoring can be done via its rear side Ethernet–Interface (WebGUI, SNMP) while it can also be integrated into a management and control system (NMS or M&C) via SNMP.
The FlexLink S9E–1616 is an ideal platform for flexible signal switching applications and perfectly suited for integration into Teleports, Satellite Earth Stations, DSNG ́s as well as Broadcasting and CATV/IPTV headend architectures.
