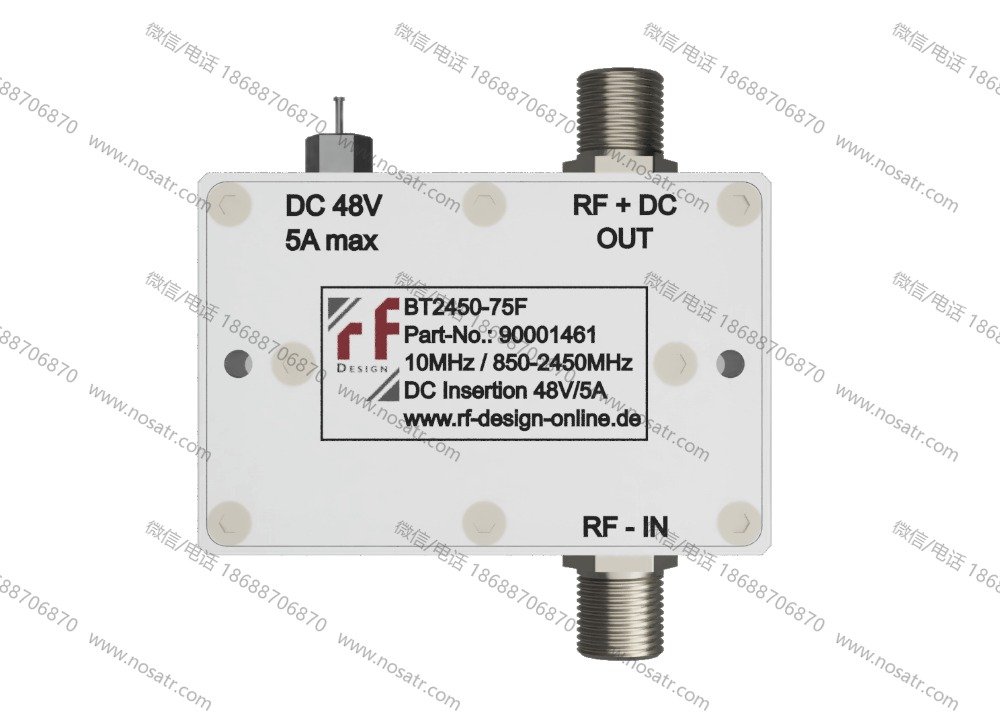

RF-Design BT2450 VSAT DC-Power Block/Inserter
RF-Design RF-Design BT2450 VSAT DC-Power Block/Inserter — (BDC) Block Down Converter
Description
Contact: Tel / WhatsApp: +86 18688706870 | Web: www.nosatr.com
Bias-T 10MHz and 850 – 2450MHz Pass, Insertion Loss 1,5dB max., 75Ohm F(f) -F(f), DC Block/Inserter 48V, 5A max. DC Insertion via external Port (Feed Through).
- Low Loss max 1,0dB @ 2,45GHz
- 50V / 5A max
- 50Ohm and 75Ohm Type available
| TECHNICAL SPECIFICATIONS | |
| Insertion Loss | 10MHz and 850 – 2450MHz Pass, < 1dB |
| DC Insertion, Max Voltage and Max. Current | 48V max. / 5A max. |
| Input and Output Impedance | 50 or 75Ohm |
| Return Loss | 14dB min. |
| Connectors | SMA(f) 50Ohm, N(f) 50Ohm, F(f) 75Ohm, See ordering table below |
| Dimensions/ Weight | 40 x 80 x 15mm / 150g |
| RoHS/WEEE | YES |
