Description
Contact: Tel / WhatsApp: +86 18688706870 | Web: www.nosatr.com

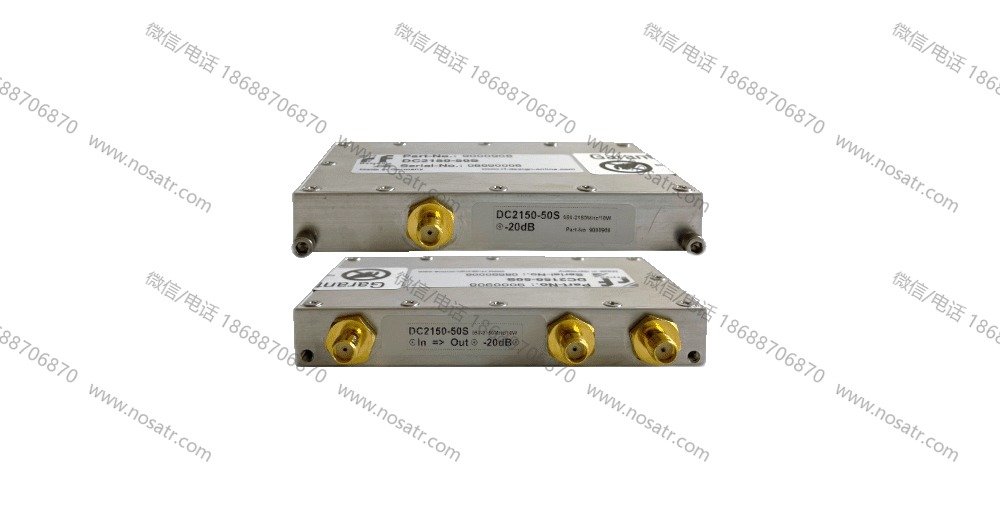

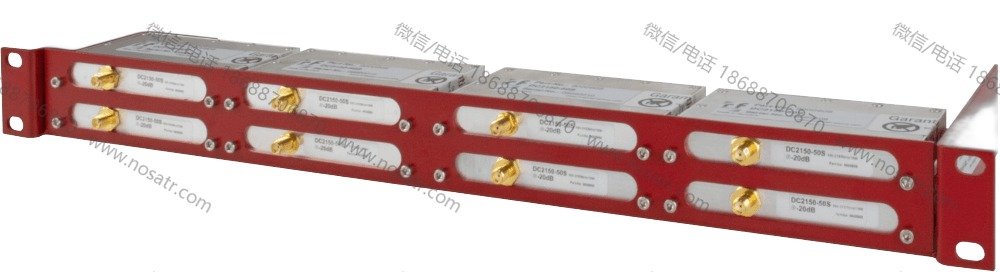

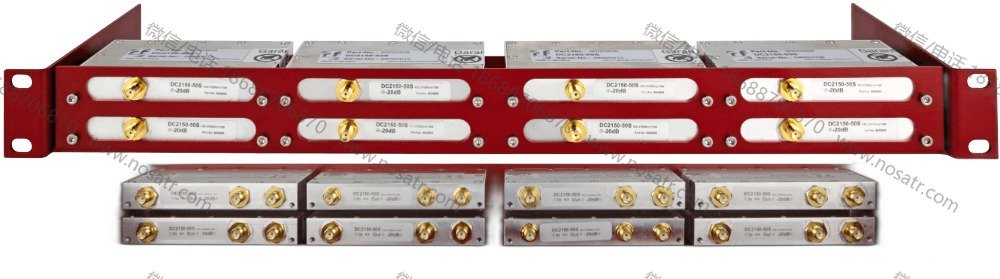

The DC2150 is a directional coupler operating at L-Band (950 – 2150MHz) and extended L-Band frequency range (850 – 2450MHz). It is especially designed for operation in combination with our RF power meter. PwrM3G but can of course also be used independently. A specially designed 1RU/19″ rack mount panel allows insertion of up to 8 DC2150 directional couplers.
| TECHNICAL SPECIFICATIONS | |
| Dimensions (Module) | 100 x 60 x 15mm high |
| Weight (Module) | 250 g |
| Dimensions Chassis | 1RU/19” rack mount |
| Frequency Range | 850MHz – 2450MHz |
| RF Power | 10W max. |
| Insertion Loss Main | 950 – 2150MHz -0,5dB ±0,25dB, 850 – 2450MHz -0,75dB ±0,4dB |
| Coupling | 950 – 2150MHz 2 x -20dB ±0,25dB, 850 – 2450MHz 2 x -20dB ±0,5dB |
| RF Connector | SMA(f) |
| Return Loss | < -18dB all ports |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -10°C to 70°C |
| Humidity | 90%, non-condensing |
| RoHS | Compliant |
