RF-Design FlexLink R25 Distributive IF 10 – 200MHz Switch Matrix System 64:64

The FlexLink R25 represents an unique, innovative & clever IF 200MHz Switch Matrix system (10 – 200MHz), built into a 5RU/19″ rack mount chassis with only 500mm depth. It comes as scalable fan-out/distributive system allowing to switch/route any selected input to any or all outputs enabling to switch/route various inputs to a dedicated output. The 5RU/19” chassis can be assembled with various input/output configurations from 8:8 to 64:64 (symmetrically & unsymmetrically).

This Switch Matrix replaces very cost-effective standard fix distribution systems and offer a maximum in flexibility combined with state-of-the-art functionalities, features, excellent RF performance and various options. All matrix switch boards are hot-swappable and easy to replace without removing any cables.

Key Features

• Space saving 5RU/19″ modular rack mount design
• IF 10-200MHz support
• From 8:8 to up to 64:64 inputs/outputs within one chassis as fan-out/distributive system
• Easy expandable with external components

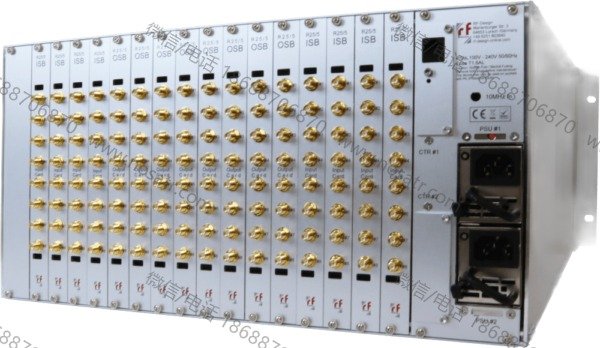

• Coax inputs & outputs 50Ohm SMA(f) or BNC(f)
• Hot-swappable controller card and matrix switch boards

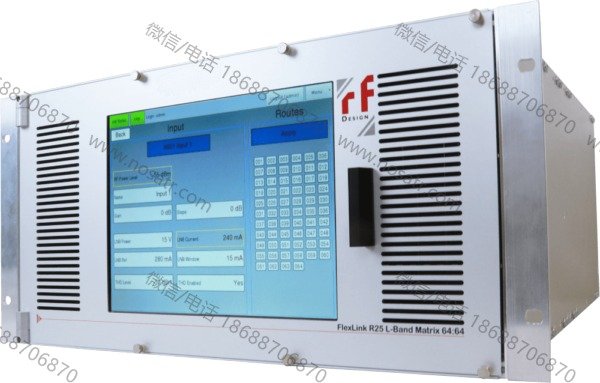

• 10.4″ front-side touchscreen LC-Display for local configuration
• 1000MBit Ethernet-Interface (WebGUI, SNMPv2c)
• 1:1 redundant dual power supply (hot-swappable)
• Variable gain control (@ any input)
• Threshold alarming (local and remote signaling)
