iDirect Velocity Intelligent Line Cards
Our Velocity Intelligent Line Cards (ILCs) are compatible with the Intelligent Hub for the Velocity platform. The ILCs support multiple waveforms for network flexibility and multiple transmit and receive carriers for high throughput operations. This significantly improves hub hardware density as well as overall network scalability.
Description
Our Velocity Intelligent Line Cards (ILCs) are compatible with the Intelligent Hub for the Velocity platform. The ILCs support multiple waveforms for network flexibility and multiple transmit and receive carriers for high throughput operations. This significantly improves hub hardware density as well as overall network scalability.

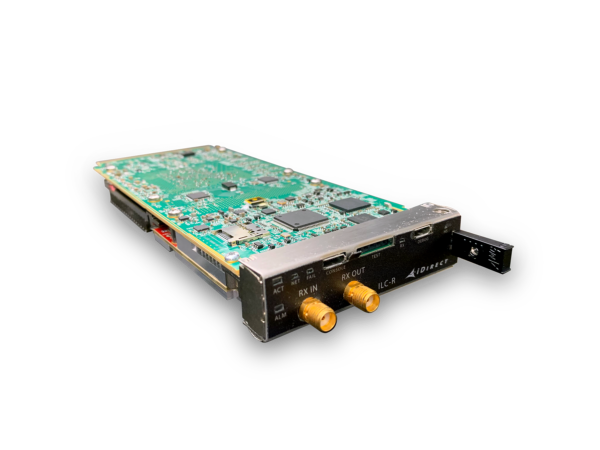

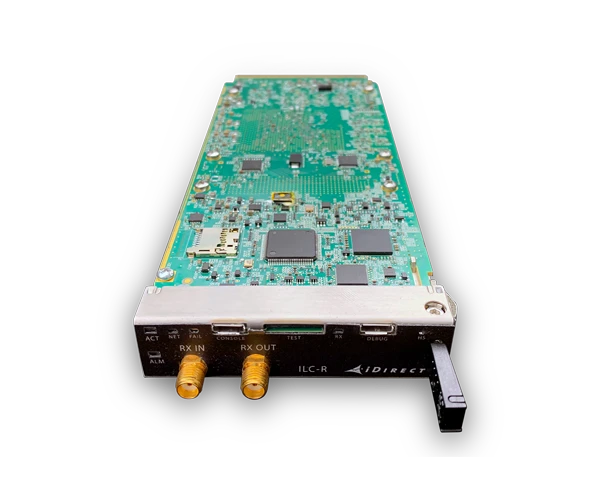

The ILC-R is a compact, high-performance receive line card for our Velocity® platform. The ILC-R features Adaptive TDMA, multi-channel support, very high symbol rates, and is designed for high throughput satellite (HTS) networks.
- One demodulator, up to 64 channels
- Adaptive TDMA, up to 120Msps aggregate
- Compatible with the Intelligent Hub
- Requires Velocity 3.3.1 software or above

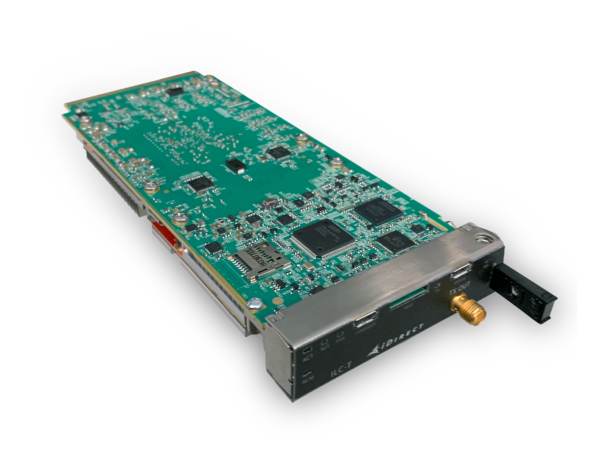

The ILC-T is a compact, high-performance transmit line for our Velocity® platform. The ILC-T features DVB-S2/ACM and is DVB-S2X-ready. The ILC-T is designed to support high symbol rates and is ideal for high throughput satellites (HTS) networks.
- One modulator, up to 4 channels (DVB-S2)
- Up to 45Msps (DVB-S2), up to 475 (DVB-S2X)
- Supports DVB-S2 ACM and is DVB-S2X-ready
- Compatible with the Intelligent Hub
- Requires Velocity 3.3.1 software or above
Technical Downloads
Additional information
| Weight | 0.83 kg |
|---|---|
| Dimensions | 36.1 × 48.3 × 13.3 cm |
| Brand | iDirect |
| Weight | 0.83 KGS |
| Width | 48.30 (cm) |
| Height | 13.30 (cm) |
| Depth | 36.10 (cm) |
