Description
Specifications

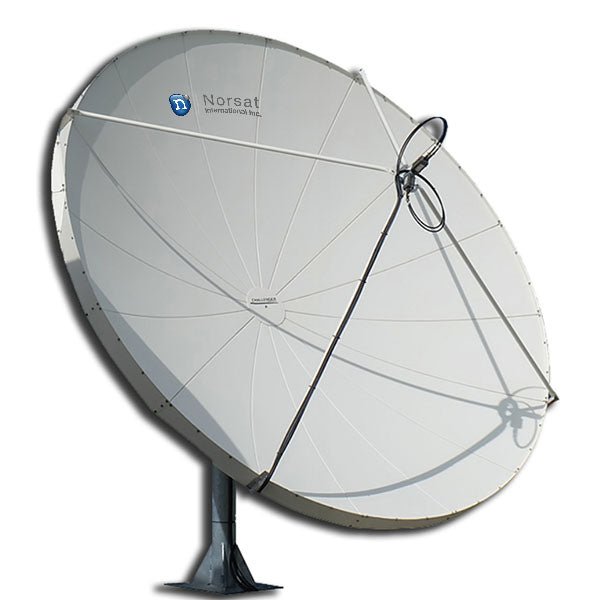

KEY SPECIFICATIONS
| antenna aperture | 3.8m |
|---|---|
| antenna category | Earth Station |
| band | Ku-Band |
| number of onboard LOs | Single-Band |
| Product Revision | A |
ANTENNA SPECIFICATIONS
| antenna function | Receive-Only |
|---|---|
| antenna mount | Pipe – 6 5/8″ |
| antenna mount type | Elevation over Azimuth |
| antenna structure | Prime Focus |
| azimuth angle | 360° (Continuous Adjustment) |
| elevation angle | 5° to 90° (Continuous Fine Adjustment) |
| noise temperature@ 10.7 GHz receive 10-degree elevation unity | 55K |
RF SPECIFICATIONS
| Rx frequency | 10.95 – 12.75 GHz |
|---|---|
| RX gain | 50.3 dBi |
| RX interface | WR75 |
ENVIRONMENTAL SPECIFICATIONS
| temperature operational | -40°C to +140°C / -40°C to +60°C |
|---|---|
| temperature survival | -60°C to +180°C / -51°C to +82°C |
| windspeed operational | No Ballast/Anchors: 60 mph / 100 kmh |
| windspeed survival | With Ballast/Anchors: 125 mph / 200 kmh |
PHYSICAL SPECIFICATIONS
| product height | 3900 mm |
|---|---|
| product length | 3800 mm |
| product width | 315 mm |
INFORMATION
| HS Code | 8529102120 |
|---|---|
| Country of Origin | Made in USA |
| Ex Works | Richmond, BC, Canada |
| ECCN Number | EAR99 |
| Warranty | 1 year |
| Dangerous Goods | – |
| Unit Package Dimensions | 2235 x 915 x 762 mm |
| Unit Package Weight | 312.8 kg |
| Total Aluminium Content | – |
| Aluminum Country of Smelt and Cast | – |
| Total Aluminium Value | – |
