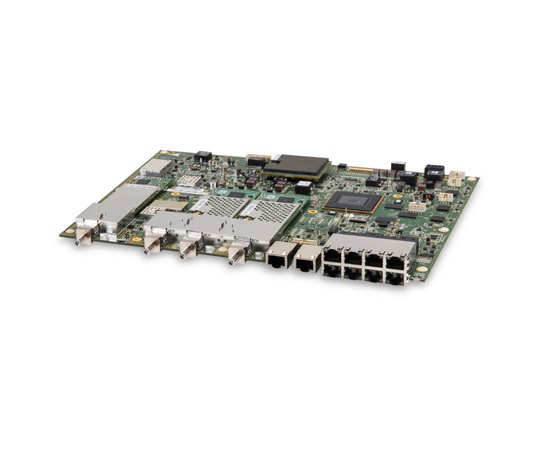

iDirect 900 Board Satellite Modem
¥17,525.00
The 900 Board Satellite Modem is a high-performance satellite router board that supports both fixed and mobile integrated terminals. The 900 features dual DVB-S2 demodulators, an 8-port Gigabit switch and two Ethernet ports. The 900 provides a superior level of IP broadband capability, supporting DVB-S2/ACM and Adaptive TDMA. Service providers can implement the most efficient technology dependent on their network architecture, resulting in a more cost efficient use of extremely small antennas for government and military applications including command and vehicle-based terminals. The 900 is compliant with TRANSEC, FIPS 140-2 Level 3, and 256-bit AES encryption.
Description
The 900 Board Satellite Modem is a high-performance satellite router board that supports both fixed and mobile integrated terminals. The 900 features dual DVB-S2 demodulators, an 8-port Gigabit switch and two Ethernet ports. The 900 provides a superior level of IP broadband capability, supporting DVB-S2/ACM and Adaptive TDMA. Service providers can implement the most efficient technology dependent on their network architecture, resulting in a more cost efficient use of extremely small antennas for government and military applications including command and vehicle-based terminals. The 900 is compliant with TRANSEC, FIPS 140-2 Level 3, and 256-bit AES encryption.
The 900 modem board features dual DVB-S2 demodulators for networks utilizing multiprotocol encapsulation (MPE) traffic, as well as an 8-port Gigabit switch to securely segregate user traffic. The 900 is designed to meet MIL-STD 810G when placed in a properly engineered enclosure. Optimized for integration into both fixed and mobile terminals, the 900 is a powerful board-level solution.
The 900 modem board feature set is also available in a rackmount form factor. The 9350 Modem comes in a 1RU chassis and features an LCD screen, allowing the user to view modem configuration and statistics as well as a zeroize button for added security.
Features of the 900 Board Satellite Modem
- DVB-S2 up to 45 Msps
- Adaptive TDMA up to 29 Msps
- Dual demodulators to support two data streams
- Ideal for both fixed and mobility applications
- FIPS 140-2 Level 3 Certified (#3056) TRANSEC module (E0002268)
- Extended frequency ranges for WGS constellations
Technical Downloads
Additional information
| Weight | 0.9 kg |
|---|---|
| Dimensions | 22.22 × 28.44 × 2.54 cm |
| Brand | iDirect |
| MPN | SMB900 |
| Weight | 0.90 KGS |
| Width | 28.44 (cm) |
| Height | 2.54 (cm) |
