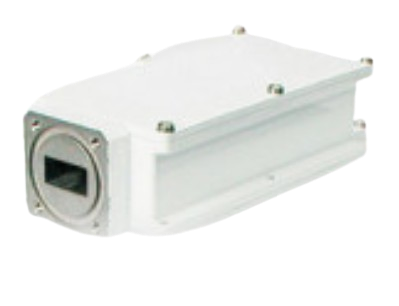

Agilis ACA Series Ku-Band VSAT Outdoor Low Noise Block N-Type Output (LNB)

Description

Overview

Agilis ACA Series Ku-Band Low Noise Block (LNB) offers premium performance and reliability in the most versatile package available for a LNB. The latest technology used produces the lowest possible noise temperature in an uncooled LNB. System performance is enhanced by outstanding gain stability and gain flatness.

Agilis LNB is housed in a weatherproof enclosure with a small profile to better accommodate redundancy configuration.

They are specially designed for satellite earth station receiver front ends and other applications. Utilizing state-of-the-art technology, Agilis LNBs have been designed for both fixed and transportable applications. High performance models are available in several standard frequency ranges.

• Available for all Ku-Band frequencies
• Excellent gain flatness and gain stability
• Low current consumption
• High/Small Signal gain
• Wide gain control range
• Low noise figure Field proven with system deployed worldwide, Agilis LNB control unit can withstand temperature from -40ºC to +60ºC up to 100% humidity. All Agilis ACUs are designed and manufactured according to ISO 9001 Standard. All Agilis ODUs go through intensive active electrical stress screening with performance being monitored. In addition, all units undergo 100% waterproof test equivalent to IP65 to ensure normal operation during tropical, cold and harsh environment.

AGILIS ACA Series Ku-Band VSAT Outdoor Low Noise Block N Output (LNB)

Technical Specifications

Input

INPUT FREQUENCY (GHz) /	10.95 to 11.70 / 11.70 to 12.20 / 12.25 to 12.75
NOISE TEMPERATURE @ 25°C	75°K
INPUT VSWR	2:5:1 typ
LOCAL OSCILLATOR FREQUENCY (GHz)	10.00 / 10.75 / 11.30
PHASE NOISE (SSB)
@100Hz / @1KHz / @10KHz / @100KHz	-63dBc/Hz / -73dBc/Hz / -83dBc/Hz / -93dBc/Hz
EXTERNAL REFERENCE
Input Frequency	10MHz typ
Input Power	-10 to 0dBm
Phase Noise
@100Hz / @1KHz / @10KHz	-135dBc/Hz / -143dBc/Hz / -154dBc/Hz
OUTPUT FREQUENCY (GHz)	950 to 1700 / 950 to 1450 / 950 to 1450
VSWR	2:3:1 max
OUTPUT IMPEDANCE	50Ω
GAIN FLATNESS @ 25°C	55dB min
GAIN Flatness @ 25°C (50Mhz)	2.0dB max
GAIN STABILITY
Per 40MHZ	±0.05dB
Per Day Constant Temp.	±0.2dB
Per °C	0.5dB
OUTPUT POWER @ P1dB	0dBm
OUTPUT INTERCEPT POINT	20dBm min
INTERMODULATION PRODUCTS
(3rd order inter modulation rejection with two -75dBm / input carriers separated by 10MHz)	+45dB min
SPURIOUS
Input fixed spur unrelated to CW signal	-140dBm max
With test CW signal -10dBm IF output	– 50dBm max
IMAGE REJECTION	45dB min
OPERATING TEMPERATURE	-40ºC to +60ºC
RELATIVE HUMIDITY	100%
DC Voltage	+12 to +18VDC
DC Current	300mA max
INPUT INTERFACE	WR75/G
OUTPUT INTERFACE	N-type Female
DIMENSIONS	98.5L x 69.8W x 133.4H mm
WEIGHT	520g
COLOUR	White Powder Coat
