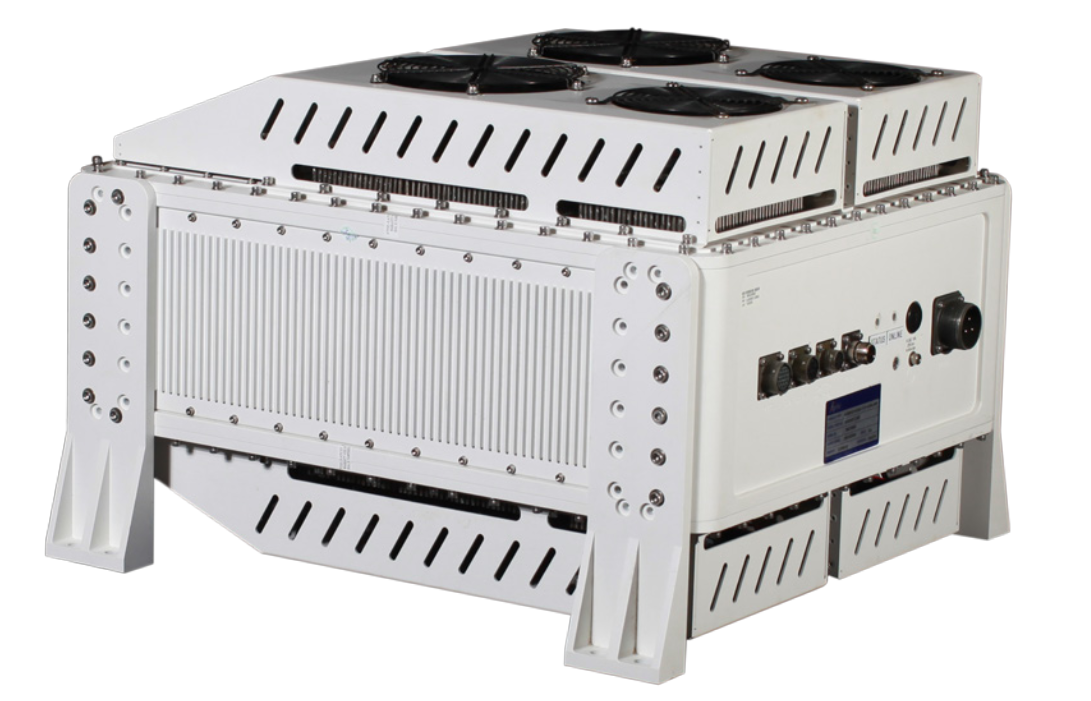

Agilis ALB2292C7-250E-D1 ALB229 Series Compact 250W Ku-Band Block-Up Converter
¥490,586.00
This small and lightweight BUC is ideal for mobile and satellite uplink applications. The BUC has “Best in Class” efficiency and “lowest power consumption.” The unit works on a wide range AC power supply of 96VAC to 2…
Description
This small and lightweight BUC is ideal for mobile and satellite uplink applications. The BUC has “Best in Class” efficiency and “lowest power consumption.” The unit works on a wide range AC power supply of 96VAC to 264VAC. Innovative and efficient thermal design makes this BUC one of the smallest, robust, reliable and rugged enough to withstand outdoor conditions in the industry. Built-in redundancy feature eliminates the use of an external controller for 1:1 redundancy operation. This eliminates messy cabling at the antenna making this a very elegant solution.
Extensive M/C interface with RS232/RS485/Ethernet (SNMP & HTTP) and Wifi.
Features
• Compact and lightweight
• Available in standard and extended Ku-Band
• Forward & reverse power detection
• Input power detection
• Intuitive monitoring & control through RS232/RS485 & Ethernet (SNMP & HTTP) and Wifi
• Automatic fault identification & alarm generation
• Temperature compensation facility
• Built-in redundancy facility
• Built-in 10MHz reference with auto-detection
• Built-in receive reject filter
• Sample port for output monitoring
• Wide operating temperature range -40ºC to +60ºC
• RoHS Compliant
• Waterproof
Quality Assurance
100% of all BUCs go through stringent quality checks in addition to well defined Electrical Stress Screening to ensure operation in harsh outdoor environments. The BUCs are also subjected to seal test for water ingress verification.
Reliability
Field proven under harsh environment conditions, Agilis ODUs can withstand temperature ranging from -40ºC to +60ºC with up to 100% humidity.
| Parameter | Specification |
| Transmit Frequency | 13.75 – 14.50GHz |
| IF Frequency Range | 950MHz to 1700MHz |
| LO Frequency | 128.0 GHz |
| Output Power (Psat/Plinear) | 54dBm/51dBm |
| Spectral Re-growth | 30dBc @ PLinear |
| Third Order Intermod (two tone) | -25dBc @ two signal 2MHz apart at PLinear |
| Small Signal Gain | 80dB Min |
| Gain Flatness Full Band | ±2dB |
| Gain Slope over 40MHz | ±1dB |
| Gain Variation over temperature | ±1dB @ from -40°C to +60°C |
| O/P spurious | According to EN301428 |
| Phase Noise @ Offset | |
| 1KHz | -75dBc/Hz |
| 10KHz | -85dBc/Hz |
| 100KHz | -95dBc/Hz |
| I/P VSWR | 1.3:1 |
| O/P VSWR | 1.25:1 |
| Noise Power Density Tx BD | 70dBW/4KHz |
| Rx BD | 142dBW/4KHz |
| AC Power | Prime Power 230VAC (range 96V to 264VAC) |
| Power Consumption | 2000VA |
| Operating Temperature | -40°C to +60°C |
| Humidity | Up to 100% |
| Weather protection | Sealed to IP65 |
| Size | 550L x 440W x 350H mm |
| Weight | 50kg |
| Color | White Powder Coat |
Datasheets / 技术资料下载
Additional information
| Weight | 50 kg |
|---|---|
| Dimensions | 44 × 55 × 35 cm |
| Brand | Agilis |
| Model | ALB2292C7-250E-D1 |
| Series | ALB 229 Series |
| Frequency Band | Ku-Band |
| Transmit Frequency | 13.75 – 14.50GHz |
| IF Frequency | 950MHz to 1700MHz |
| LO Frequency | 128.0 GHz |
| Output Power | |
| Small Signal Gain | 80dB Min |
| Gain Flatness | ±2dB |
| Gain Variation | ±1dB; ±1dB @ from -40°C to +60°C |
| Intermodulation | 30dBc @ PLinear; -25dBc @ two signal 2MHz apart at PLinear |
| Spurious | According to EN301428 |
| VSWR | 1.3:1; 1.25:1 |
| Noise Power Density | 70dBW/4KHz; 142dBW/4KHz |
| Power Consumption | 2000VA |
| IF Input Interface | 1.3:1 |
| RF Output Interface | According to EN301428; 1.25:1 |
| Operating Temperature | -40°C to +60°C |
| Humidity | Up to 100% |
| Ingress Protection | Sealed to IP65 |
| Dimensions | 550L x 440W x 350H mm |
| Weight | 50.00 kg |
| Colour | White Powder Coat |
