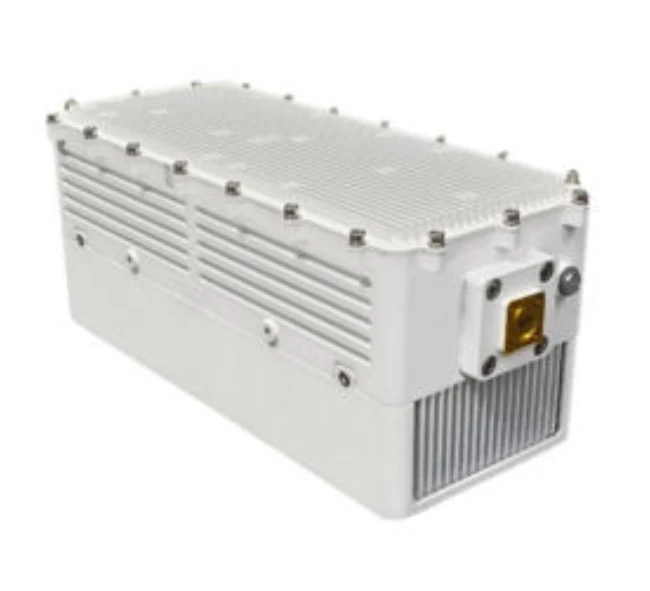

Agilis ALB210SFG-12B-M ALB210 Series Compact 12W Ka-Band Block-Up Converter N Type (BUC)

Description

Designed to mount directly to the feedhorn, ideal for mobile and satellite uplink applications. Innovative and excellent efficiency thermal design makes this BUC one of the most power efficient, robust and reliable to operate under harsh outdoor environment.Easy installation with redundancy ready features to work in 1+1 redundancy mode.

Features

• Feed mountable
• Forward power detection
• L band input power detection
• Monitoring and Control through Serial and Ethernet ports
• Fault identification and alarm generation
• LED status and alarm indicator
• Auto gain control throughout operating temperature
• Wide DC input ranging 36 to 60Vdc
• Wide operating temperature -40°C to +60°C
• IP65 Weatherproof
• RoHS Compliant

Technical Specifications

RF Specifications

Freq Band	Band 1: 27.5 – 28.5GHz RF, 950 – 1950MHz IF, 26.55GHz LO / Band 2: 28.5 – 29.5GHz RF, 950 – 1950MHz IF, 27.55GHz LO / Band 3: 29.0 – 30.0GHz RF, 950 – 1950MHz IF, 28.05GHz LO / Band 4: 30.0 – 31.0GHz RF, 1000 – 2000MHz IF, 29.00GHz LO
Output Power	12W: 40.8dBm (12W Plinear)
Small Signal Gain	65dB min
Gain Flatness	±2dB over 1GHz, ±0.75dB over 40MHz
Gain Variation	±2dB within band over operating temperature
Spectral Regrowth	-30dBc max @ Plinear at 1.0x symbol rate offset for single OQPSK or at 1.5x symbol rate offset for single QPSK
Spurious	-60dBc max
Phase Noise	-93dBc/Hz max @100KHz offset, -83dBc/Hz max @10KHz offset, -73dBc/Hz max @1KHz offset
VSWR	1.5:1 max @input, 2.0:1 max @output

AC/DC Power

Prime Power	36 to 60Vdc
Power Consumption	130VA max @12W Psat, 145VA max @16W Psat, 200VA max @20W Psat

Interface

IF Input	N-Type Female 50Ω
RF Output	WR28 Grooved

Reference Requirement

Frequency	10MHz/50MHz auto detect
Power Level	-5dBm to +5dBm
Ext Ref Phase Noise	-160dBc/Hz max @100Hz offset, -155dBc/Hz max @1KHz offset, -150dBc/Hz max @10KHz offset

Monitor & Control

Monitor	BUC Temperature, Status Alarm with LED Indicator, LO Unlock Alarm, L-Band Input Power Detection, RF Forward Power Detection
Control	Gain adjustable 25dB with 0.25dB step, RF Output On/Mute
Communication Port	Serial RS232/RS485/RS422, Ethernet (SNMP & HTTP)
Transmit Redundancy	Redundancy-Ready with external controller unit

Environmental

Operating Temperature	-40°C to +60°C
Relative Humidity	Up to 100%
Weatherproof	IP65

Mechanical

Dimension	L240 x W100 x H107mm / 9.5” x W3.9” x H4.2”
Weight	3.3Kg / 7.28lbs
