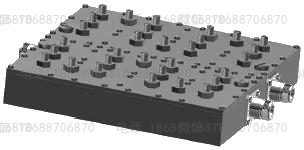

18600 GSM 1800 Full Band Duplexer
This duplexer provides excellent isolation between the transmit and receive bands with minimal signal degradation.
Description
Details: This duplexer provides excellent isolation between the transmit and receive bands with minimal signal degradation.
Product Specifications
| Passband Transmit | 1805-1880 MHz |
| Passband Receive | 1710-1785 MHz |
| Passband Insertion Loss | 1.0 dB Max |
| Passband Return Loss | 18 dB Min |
| Maximum Transmit Power Handling | 100 Watts (CW), 450 Watts (Peak) |
| Rejection | 55 dB Min from 1710-1785 MHz, 50 dB Typ @ 2110 MHz (Transmit), 55 dB Min from 1805-1880 MHz, 50 dB Typ @ 1600 MHz (Receive) |
| Operating Temperature | -20°C to +70°C |
| Connectors | N-Female |
| Dimensions | 139mm x 150mm x 44mm |
| Rx-Tx Isolation | 55 dB Min |
Datasheet: Download PDF
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 15 × 13.9 × 4.4 cm |
| Brand | Microwave Filter Company |
| Filter Type | Duplexer |
| Passband Transmit | 1805-1880 MHz |
| Passband Receive | 1710-1785 MHz |
| Passband Insertion Loss | 1.0 dB Max |
| Passband Return Loss | 18 dB Min |
| Maximum Transmit Power Handling | 100 Watts (CW), 450 Watts (Peak) |
| Rejection | 55 dB Min from 1710-1785 MHz, 50 dB Typ @ 2110 MHz (Transmit), 55 dB Min from 1805-1880 MHz, 50 dB Typ @ 1600 MHz (Receive) |
| Operating Temperature | -20°C to +70°C |
| Connectors | N-Female |
| Dimensions | 139mm x 150mm x 44mm |
| Rx-Tx Isolation | 55 dB Min |
