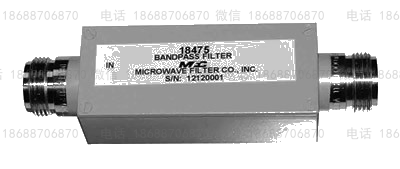

18475 Mobile Radio (450-470 MHz) Bandpass Filter
This filter isolates the (450-470 MHz) mobile radio band from potential interference from nearby FM signals (88-108 MHz) and/or nearby 700 MHz band signals.
Description
Details: This filter isolates the (450-470 MHz) mobile radio band from potential interference from nearby FM signals (88-108 MHz) and/or nearby 700 MHz band signals.
Product Specifications
| Passband | 450 – 470 MHz |
| Passband Insertion Loss | 1.5 dB Typ 2 dB Max |
| Passband VSWR (Max) | 1.5:1 |
| Rejection | 80 dB Min from 88 – 108 MHz, 40 dB Approx @ 720 MHz |
| Impedance | 50 ohms |
| Connectors | N-Female |
| Operating Temperature Range | +40°F to +100°F |
| Dimensions | 60mm x 25mm x 19mm |
Datasheet: Download PDF
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 2.5 × 6 × 1.9 cm |
| Brand | Microwave Filter Company |
| Filter Type | Bandpass Filter |
| Passband | 450 – 470 MHz |
| Passband Insertion Loss | 1.5 dB Typ 2 dB Max |
| Passband VSWR (Max) | 1.5:1 |
| Rejection | 80 dB Min from 88 – 108 MHz, 40 dB Approx @ 720 MHz |
| Impedance | 50 ohms |
| Connectors | N-Female |
| Operating Temperature Range | +40°F to +100°F |
| Dimensions | 60mm x 25mm x 19mm |
