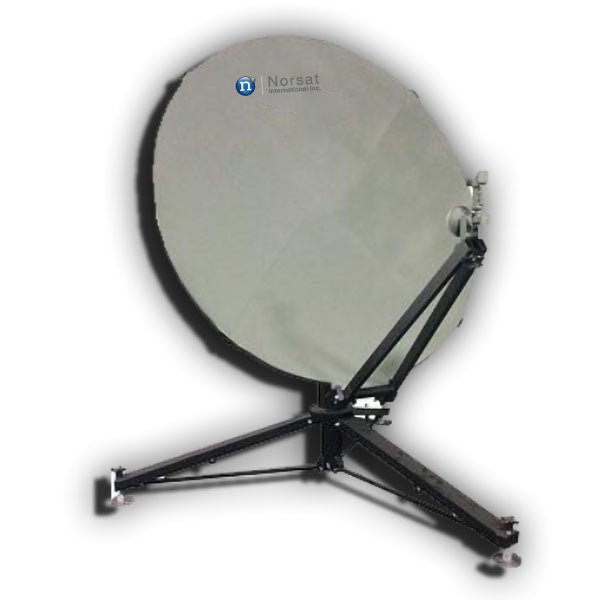

WAYFARER 1.8m Ku-Band Quick-Deploy Antenna (4-Piece Dual Skin Reflector)
¥44,600.00
antenna aperture: 1.8m
Description
Specifications
KEY SPECIFICATIONS
| antenna aperture | 1.8m |
|---|---|
| antenna category | Flyaway |
| band | Ku-Band |
| number of onboard LOs | Single-Band |
| Product Revision | B |
ANTENNA SPECIFICATIONS
| antenna function | Transmit / Receive |
|---|---|
| antenna mount | Pre-assembled Tripod Base mount w/pull Pins |
| antenna mount type | Elevation over Azimuth |
| antenna structure | Single Offset |
| azimuth angle | +30° (Fine Adjustment), 360° (Continuous Adjustment) |
| cross polarization on axis receive | 30 dB |
| cross polarization on axis transmit | 30 dB |
| cross polarization within 1dB beamwidth receive | 22 dB |
| cross polarization within 1dB beamwidth transmit | 26 dB |
| elevation angle | 0° to 90° (Continuous Fine Adjustment) |
| insertion loss receive | 0.3 dB typ |
| insertion loss transmit | 0.1 dB typ |
| noise temperature elevation 10° | 55K |
| noise temperature elevation 30° | 50K |
| return loss receive | 17.7 dB typ |
| return loss transmit | 20 dB typ |
| Tx Rx Isolation receive | 40 dB |
| Tx Rx Isolation transmit | 80 dB |
| Tx Rx sidelobe level receive | Mainbeam < 0< 7° , 7° <0< 9.2° , 9.2°<0<48° , 48°<0<180° |
| Tx Rx sidelobe level transmit | 29-25 log 0, +8 dBi, 32-25 log 0, -10 |
RF SPECIFICATIONS
| Rx frequency | 10.7 – 12.75 GHz |
|---|---|
| RX gain | 45.3 dBi |
| RX interface | WR75 |
| Tx frequency | 13.75 – 14.5 GHz |
| TX gain | 47 dBi |
| TX interface | WR75 |
ENVIRONMENTAL SPECIFICATIONS
| temperature survival | -40°F to +140°F / -40°C to +60°C |
|---|---|
| windspeed operational | No Ballast/Anchors: 25 mph / 40 Kmh; with Ballast/Anchors: 45 mph / 72 km/h |
| windspeed survival | With Ballast/Anchors: 90 mph gusts / 145 km/h Gusts |
PHYSICAL SPECIFICATIONS
| product height | 1.8 m |
|---|---|
| product length | 1.8 m |
| product width | 1.524 m |
INFORMATION
| HS Code | 8529102120 |
|---|---|
| Country of Origin | Made in USA |
| Ex Works | Richmond, BC, Canada |
| ECCN Number | EAR99 |
| Warranty | 1 year |
| Dangerous Goods | – |
| Unit Package Dimensions | 1676.4 x 1219.2 x 1244.6 mm |
| Unit Package Weight | 146 kg |
| Total Aluminium Content | – |
| Aluminum Country of Smelt and Cast | – |
| Total Aluminium Value | – |
