RF-Design SPL Series Extended L-Band 2-way passive Splitter/Combiner

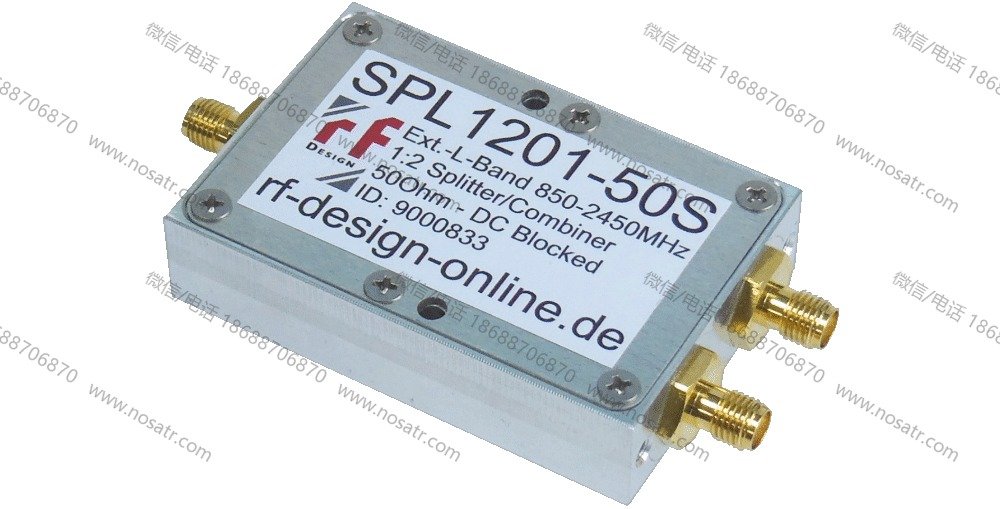

The 2-way Splitter/Combiner SPL1201 from our SPL Series is a high quality passive L-Band Splitter/Combiner module housed into a robust and compact aluminium enclosure. It can be used for standalone operation but also can be integrated into a corresponding 19″ rack mount panel for installation into a 19″ cabinet. It operates at the extended L-Band frequency-range (850 – 2450MHz) ready for KA-Band and HTS applications and is available with 50Ohm SMA(f)/BNC(f) or 75Ohm F(f)/BNC(f) connectors. This passive Splitter/Combiner features high quality, excellent RF performance and is perfectly suited for Satellite-, Broadcast and Broadband RF distribution infrastructures such as for Teleports, Earth-Stations or Cable/IPTV headend operations.

Features & Benefits

• Compact and robust aluminium enclosure
• Extended L-Band (850 – 2450MHz) ready for KA-Band & HTS applications
• High quality 2-way passive Splitter/Combiner
• Available with 50Ohm SMA/BNC or 75Ohm F/BNC connectors
• Professional & high quality PCB design
• Excellent RF performance, quality and reliability
• Standard variants with 10 MHz-block & DC-block (all ports)
• 10 MHz-pass & DC-pass (all ports) *upon request
• Standalone or for 19″ rack mount installation

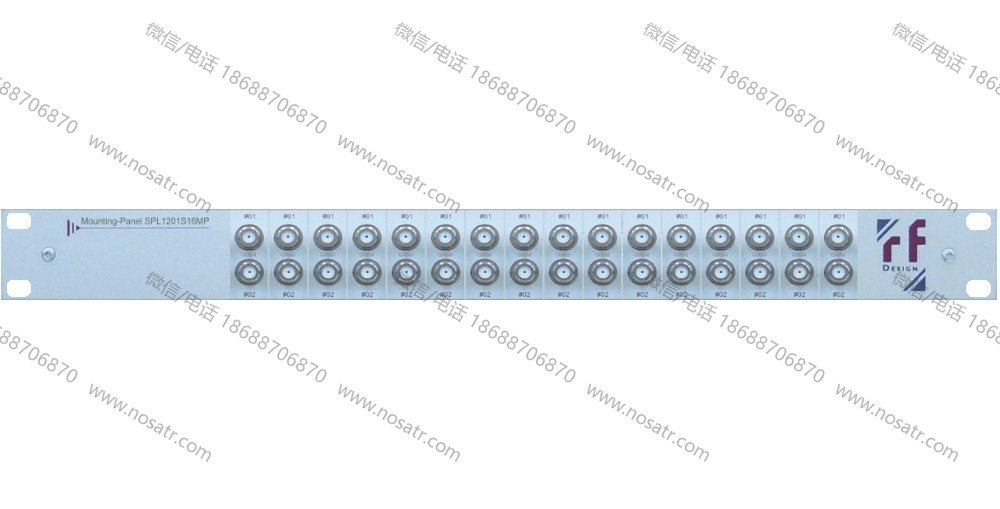

• 1RU/19″ rack mount panel available
