RF-Design FiberLinkplus not redundant System

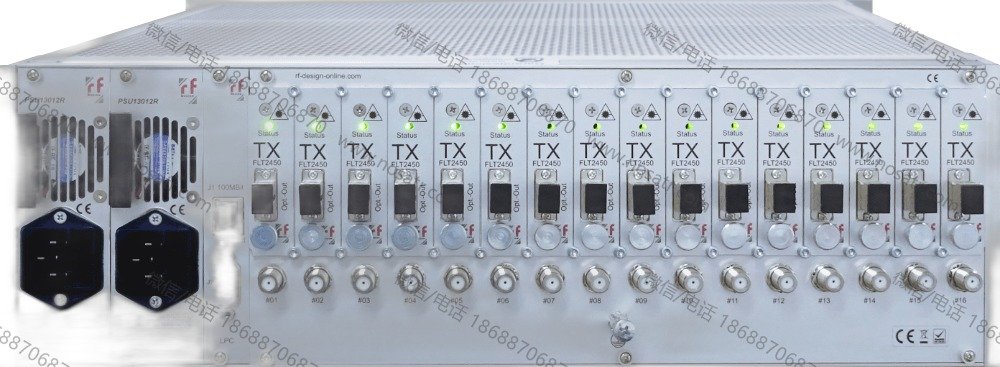

The FiberLinkplus RF-over-Fiber system for non-redundant optical transmission of RF signals is available in sizes of 1RU/19″ & 3RU/19″ rack mount design. and holds up to 4 optical TX/RX modules with the 1RU/19″ chassis or up to 16 optical TX/RX modules with the 3RU/19″ chassis. It features Laser/Link monitoring, status LED´s, variable gain control, RF power monitoring, switchable LNB-supply, hot-swappable TX/RX modules and 1:1 redundant dual power-supply as well as local or remote configuration and monitoring.

This professional RF-over-Fiber system stands for perfect RF performance as well as stable signal distribution and is perfectly suited for Teleports, Satellite Earth Stations, Broadcasting and Cable/IPTV operations.

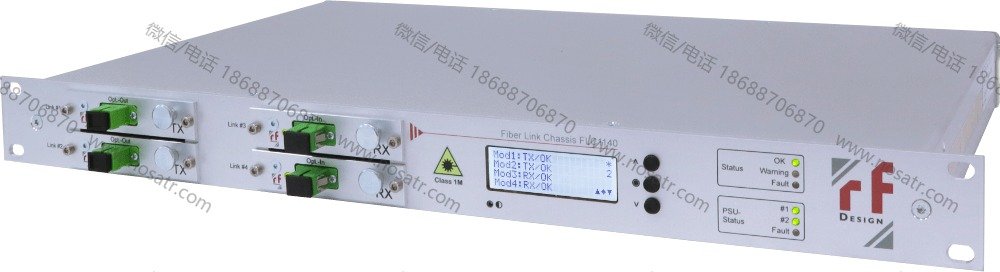

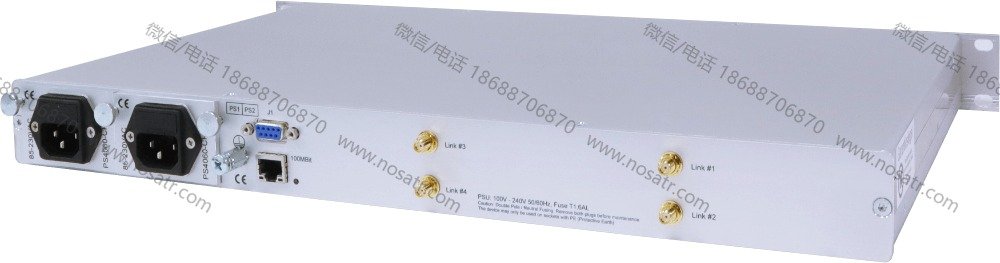

1RU/19″ modular TX/RX chassis, 2 TX/RX slots, 2 RF coax I/O´s 50Ohm SMA(f), local configuration via LCDisplay/ keypads, remote configuration via Ethernet-Interface (WebGUI, SNMP), 1:1 redundant dual power-supply.

HS-Code: 85437030
Dimension Net: each,
Weight Net: 4,00Kg each,
Packing: 1,00 x Box,
Dimension: 55x50x13cm each,
Gross Weight: 5,00Kg each,
Total-Weight: 5Kg,
ECCN: EAR99
Remark: Please see datasheet for other RF impedance & connectors

Features & Benefits

• Space saving 1RU/19″ or 3RU/19″ design
• Compact & professional signal transmission
• Supports L-Band or extended L-Band
• 1 – 16 RF over fiber signal transmission (per chassis)
• Insertion of max. 16 TX and/or RX modules per chassis
• Hot swappable TX/RX modules
• Supports mixed TX/RX configuration
• Variable gain control
• RF power monitoring
• Switchable LNB-supply
• Local and remote configuration
• Status LED´s
• 1:1 redundant dual power supply
