Description
Contact: Tel / WhatsApp: +86 18688706870 | Web: www.nosatr.com

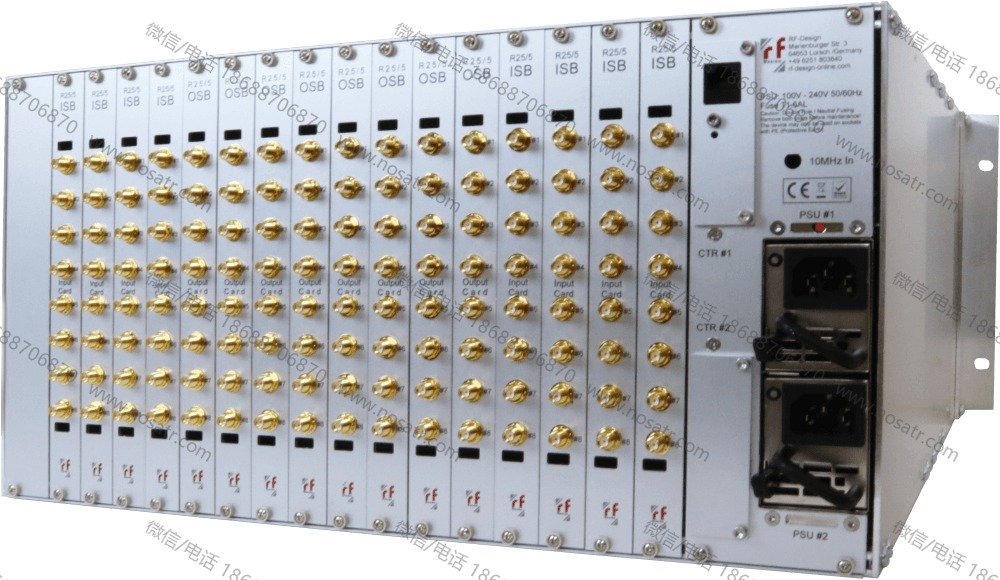

The FlexLink R25C represents an unique, innovative & clever L-Band Combining Matrix, built into a 5RU/19″ rack mount chassis with only 500mm depth. It comes as fan-in/combining system enabling to switch/route various inputs to a dedicated output. The 5RU/19” chassis can be assembled with various input/output configurations from 8:8 to 64:64 (symmetrically & unsymmetrically).
The FlexLink R25C Combining Matrix system is a future proof solution coming with widened bandwidth supporting the extended L-Band (850 – 2450MHz) frequency range making it a perfect solution also for KA-Band and HTS applications.
The flexible modular design makes it possible to mix the input and output connectors with various connector types (50Ohm SMA or BNC) giving the operator the flexibility for future expansions.
The FlexLink R25C features variable gain control & slopeequalization and rf-power monitoring as well. Furthermore, it supports status monitoring of all active components and comes with a 1:1 redundant dual power supply (hot-swappable).
| RF Specifications Combining Matrix | |
| Frequency Range: | 800 – 4000MHz (extended L-Band) |
| Frequency Response: | ± 2dB typ. ±2,5dB max. (@ Extended L-Band), ± 0,25dB max. (@ 40MHz window) |
| Noise Figure: | <=20dB |
| Input/Output Return Loss: | 18dB min., 20dB typ. |
| Isolation: |
≥75B typ. (In/In) ≥60dB typ. (In/Out) ≥75dB typ. (Out/Out) |
| Operational Input Power: | -70dBm to -10dBm nominal, 0dBm max. (Recommended) |
| RF Input Power: | +6dBm max. (damage level, depends on gain setting) |
| RF Output Power: | +10dBm max. (damage level, depends on gain setting) |
| IMA3 @ -10dBm: | <50dBc |
| P1dB: | +12dBm |
| SFDR: | < -80dBm |
| Order Information | |
| Type | Description |
|
FlexLink R25C-64S5064S50 Combining Matrix |

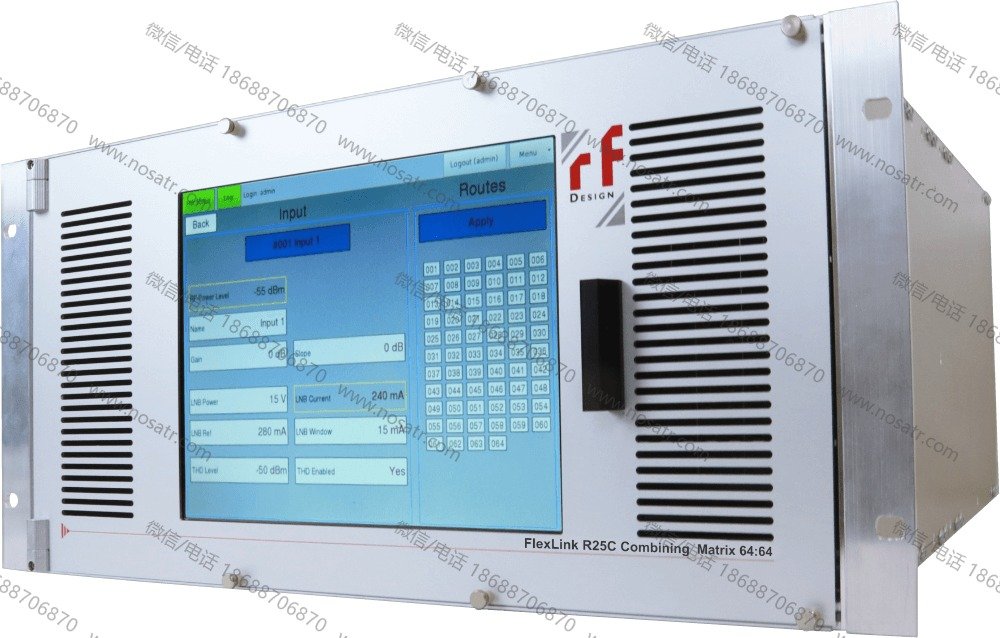

FlexLink R25C/5 Combining Switch Matrix Configuration 64:64 SMA 50Ohm, main controller, 10″ touchscreen, RJ45 1GBit Ethernet Interface (WebGUI, SNMP), 1:1 redundant dual power supply, 5RU/19″ rack mount |
| FlexLink Combining Matrix R25C-Main Chassis | FlexLink R25C/5 Combining Switch Matrix Chassis Main controller, 10″ touchscreen, RJ45 1GBit Ethernet Interface (WebGUI, SNMP), 1:1 redundant dual power supply, 5RU/19″ rack mount |
| FlexLink R25 ISB0808C Input 8:8 Combiner Board | Input Combiner Switch Board, 8 x RF Input, extended L-Band 850 – 2450MHz, 50Ohm SMA |
| FlexLink R25 ISB0808CE Input 8:8 Combiner Expansion Board | Input Combiner Switch Board, 8 x RF Input, extended L-Band 850 – 2450MHz, 50Ohm SMA for System expansion |
| FlexLink R25 OCB1601C Output 16:1 Combiner Board | Output Combining Switch Board, 16 x RF Input to 1 output, extended L-Band 850 – 2450MHz, 50Ohm SMA |
| FlexLink Combining Matrix R25 OSB0808C Output 8_8 Combiner Board 50S | R25 Combiner Matrix Output Board 8 Outputs Coax SMA 50Ohm |
| FlexLink Combining Matrix R25 OSB0808C Output 8_8 Combiner Board FO | R25 Combiner Matrix Output Board 8 Outputs Fiber Singlemode +3dBm |
