RF-Design FiberLinkplus N+2 redundant N+1 & N+2 redundant RF-over-Fiber
RF-Design RF-Design FiberLinkplus N+2 redundant N+1 & N+2 redundant RF-over-Fiber — RF Over Fiber
Description
Contact: Tel / WhatsApp: +86 18688706870 | Web: www.nosatr.com

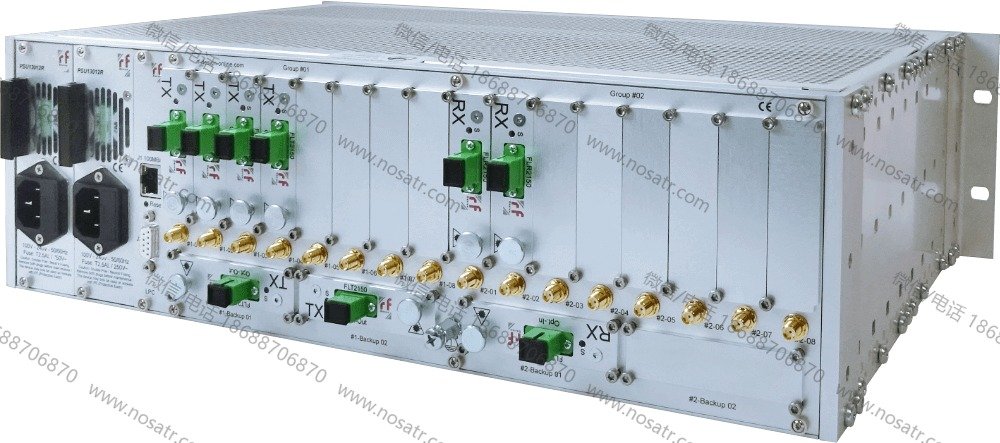

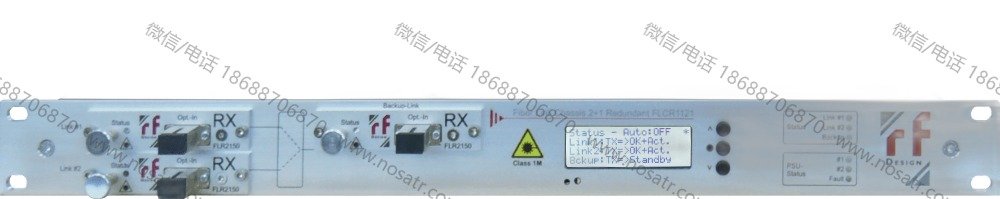

This FiberLinkplus system comes in 1RU or 3RU/19″ design, supporting versatile redundant optical transmission configurations (N+1 or N+2). It is designed for flexible, high quality and absolute secure optical transmission for 1 to 16 signals (L-Band, extended L-Band) over a distance of up to 20 km. The redundancy switching can be realized and configured locally (LCD touchscreen) but also remotely via the Ethernet-Interface (WebGUI/SNMP). The system supports 1:1 redundant dual power supply, hot-swappable TX/RX modules, variable gain control and RF power-monitoring. It comes with a front side LC-Display/keypads or a 5,7″ touchscreen display for local configuration as well as a rear-side Ethernet-Interface for remote configuration (WebGUI, SNMP).
Features & Benefits
- Space saving 1RU/19″ or 3RU/19″ design
- Stable and secure signal transmission (L-Band or extended L-Band)
- Various N+1/N+2 redundant configurations
- Insertion of max. 16 ProLink TX and/or RX modules per chassis
- Hot-swappable TX/RX modules
- Supports mixed TX/RX configuration
- Variable gain control
- RF power monitoring
- Local and remote configuration
- Status LED´s
- 1:1 redundant dual power supply
