PA,UWB Amplifier,SatCom PA

Description

Product Overview

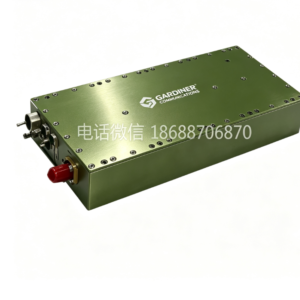

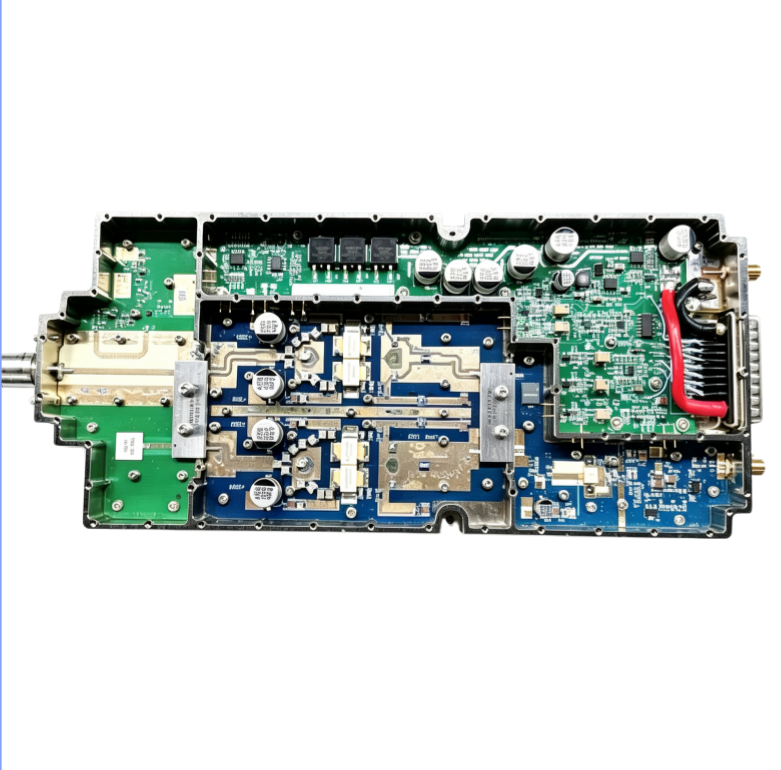

Power Amplifier (S-Band Radar PA / UWB Amplifier / SatCom PA) is a high-performance microwave component product from HS Microwave. This manual compiles technical specifications for all models in the series, for engineering design, system integration, and procurement reference. All data is from original factory test reports, unmodified.

Key Features

• High power, compact size, high efficiency

• Supports high duty cycle & pulse width (3ms @ 30% DC)

• Custom continuous-wave (CW) configurations

• Higher power tiers available (400W, dual-path combining)

• Rivals foreign GaN solutions (export-restricted to China)

• Significant cost advantage

• Ultra-wideband coverage 2–26 GHz

• Domestic GaN chips

Typical Applications

1. S-band radar systems

2. Wideband comm. jammers

3. SatCom uplink

4. EW transmitters

5. 5G/6G base-station PAs

6. R&D  platforms

Models & Specifications

Category	Model	Freq.	Power(W)	Voltage(V)
S	HS-PA2700M3100-10	2700~3100MHz	10	32
S	HS-PA2700M3100-50	2700~3100MHz	50	32
S	HS-PA2700M3100-120	2700~3100MHz	120	32
S	HS-PA2700M3100-220	2700~3100MHz	220	32
S	HS-PA2700M2900-350	2700~2900MHz	350	32
S	HS-PA3100M3500-50	3100~3500MHz	50	32
S	HS-PA3100M3500-100	3100~3500MHz	100	32
S	HS-PA2200M2500-100	2200~2500MHz	100	32
S	HS-PA2200M2500-50	2200~2500MHz	50	32
UWB	HS-PA2G6-50	2~6GHz	50	28
UWB	HS-PA2G6-80	2~6GHz	80	28
UWB	HS-PA2G6-150	2~6GHz	150	28
UWB	HS-PA2R7G6R2-50	2.7~6.2GHz	50	28
UWB	HS-PA2R7G6R2-200	2.7~6.2GHz	200	28
UWB	HS-PA6G18-20	6~18GHz	20	28
UWB	HS-PA6G18-40	6~18GHz	40	28
UWB	HS-PA6G18-60	6~18GHz	60	28
UWB	HS-PA8G12-60	8~12GHz	60	28
UWB	HS-PA8G12-100	8~12GHz	100	28
UWB	HS-PA2G18-20	2~18GHz	20	28
UWB	HS-PA2G18-40	2~18GHz	40	28
UWB	HS-PA18G26-41	18~26GHz	30	28
UWB	HS-PA26G38-42	26~38GHz	40	28
C	HS-PA5800M6700-50	5800~6700MHz	50	28
C	HS-PA5800M6700-100	5800~6700MHz	100	28
X	HS-PA7900M8400-50	7900~8400MHz	50	28
X	HS-PA7900M8400-100	7900~8400MHz	100	28
Ku	HS-PA13750M14500-80	13.75~14.5GHz	80	28
ku	HS-PA13750M14500-120	13.75~14.5GHz	120	28
Ka	HS-PA29000M31000-50	29~31GHz	50	28
Ka	HS-PA29000M31000-100	29~31GHz	100	28



General Specifications

Parameter	Specification
Technology	Domestic GaN (Gallium Nitride)
Operating Voltage	28V / 32V (model dependent)
Operating Temp.	-40°C ~ +85°C
Storage Temp.	-55°C ~ +105°C
Rel. Humidity	≤95% (non-condensing)
Cooling	Baseplate conduction cooling
Protection	Over-voltage / over-current / over-temp
Pulse Mode	Supported (3ms pulse, 30% duty cycle)
CW Mode	Customizable
Combining	Dual-path combining (up to 400W)



Model Naming Convention

XPA – f1 – f2 – P

│     │     │    └─ P = Output power (W)

│     │     └────── f2 = End frequency (MHz/GHz)

│     └───────── f1 = Start frequency

└────────────── XPA = PA series
