Norsat International Inc. LNB-100255 Ku-Band PLL LNB
Original price was: ¥9,800.00.¥5,980.00Current price is: ¥5,980.00.
Band: Ku-Band · Model: LNB-100255 · Noise Figure: 0.8 dB typ., 0.9 dB max. · LO: 9.505 GHz
Description

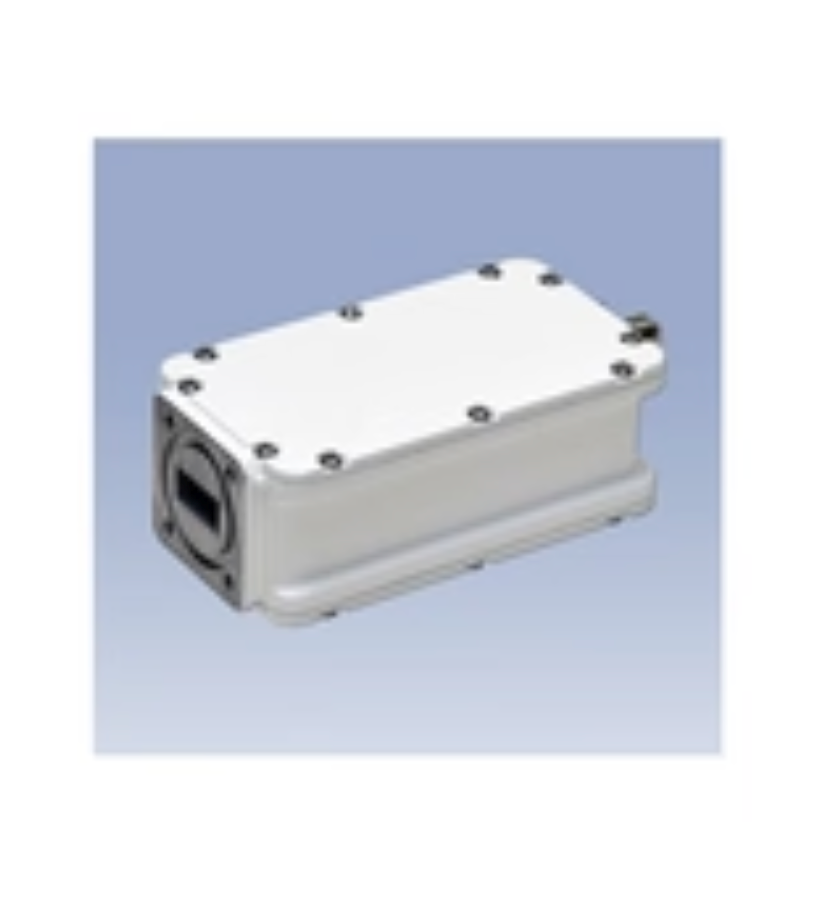

Norsat International Inc. LNB-100255 Ku-Band PLL LNB
Ku-Band PLL LNB, 11.7–12.2 GHz input frequency, 2195–2695 MHz output frequency, 9.505 GHz LO frequency, External 10 MHz reference, N-type female connector, 0.8 dB typical noise figure, 60 dB typical conversion gain, WR-75 waveguide input, +12 to +24 VDC, IP67, -40°C to +60°C.
Product Information
| Product Code | LNB-100255 |
| Condition | New |
| Weight | 0.38 KGS |
| Width | 6.00 (cm) |
| Height | 11.15 (cm) |
| Depth | 4.16 (cm) |
Technical Specifications
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| External Ref Freq | 10 MHz,-5 to +5 dBm |
| Image Rejection | 40 dBc min |
| Input Frequency Band | 11.7 – 12.2 GHz |
| L.O Stability | External: depends on ext. ref. |
| LO Frequency | 9.505 GHz |
| LO Type | EXT |
| Noise Figure | 0.8 dB typ., 0.9 dB max. |
| Number Of Onboard LOs | Single-Band |
| Output Frequency Band 1 | 2195 – 2695 MHz |
| Phase Noise 100kHz Offset Max | -95 dBc |
| Phase Noise 10kHz Offset Max | -80 dBc |
| Phase Noise 1kHz Offset Max | -70 dBc |
| Product Revision | A |
| RF SPECIFICATIONS | |
| Conversion Gain | 60 dB typ. (55 dB min., 65 dB max.) |
| Gain Ripple At Per 36 MHz | 1 dBp-p max. |
| Gain Flatness (Over Full Band) | 4 dB p-p max |
| Input VSWR | 2.5 : 1 max. |
| Output P1dB | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 350 mA max. |
| Power Requirements | +12 to +24 VDC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-type female |
| RF Input Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +60°C |
| Waterproof | IP67 |
| PHYSICAL SPECIFICATIONS | |
| Product Dimension | 60.0 × 41.6 × 111.5 mm |
| Product Weight | 0.38 kg |
| SHIPPING INFORMATION | |
| HS Code | 8517690000 |
| Country of Origin | Made in the Republic of Korea |
| Ex Works | Richmond, BC, Canada |
| ECCN Number | EAR99 |
| Warranty | 1 year |
| Unit Package Dimensions | 60 x 42 x 128 mm |
| Unit Package Weight | 0.40 kg |
| Total Aluminium Content | – |
| Aluminum Country of Smelt and Cast | – |
| Total Aluminium Value | – |
Additional information
| Weight | 0.38 kg |
|---|---|
| Dimensions | 4.16 × 6 × 11.15 cm |
| Brand | Norsat International Inc. |
| Band | |
| Product Code | LNB-100255 |
| Condition | New |
| Weight | 0.38 KGS |
| LO Type | EXT |
| LO Frequency | 9.505 GHz |
| Input Frequency Band | 11.7 – 12.2 GHz |
| Output Frequency Band | 2195 – 2695 MHz |
| Noise Figure Max | 0.8 dB typ., 0.9 dB max. |
