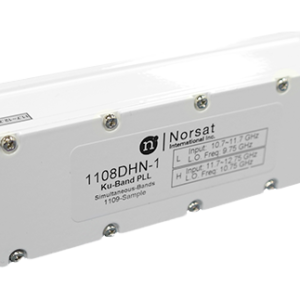

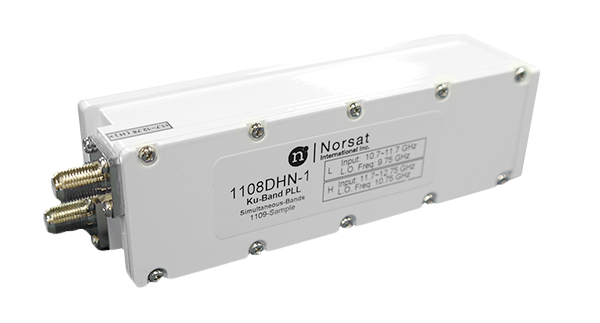

Norsat 1108DHN-1-EOL 1000 Ku-Band Simultaneous Band PLL LNB – DEMO
Original price was: ¥14,000.00.¥9,800.00Current price is: ¥9,800.00.
Band: Ku-Band · Model: 1108DHN-1-EOL · Noise Figure: .85 dB · LO: L: 9.75 GHz
Description
Norsat 1108DHN-1-EOL 1000 Ku-Band Simultaneous Band PLL LNB – DEMO
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs
Product Information
| Product Code | 1108DHN-1-EOL |
| Condition | New |
| Availability | 1 pcs |
| Weight | 0.45 KGS |
| Width | 4.20 (cm) |
| Height | 4.00 (cm) |
| Depth | 15.50 (cm) |
Technical Specifications
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Input Frequency Band 1 | L: 10.70 – 11.70 GHz |
| Input Frequency Band 2 | H: 11.70 – 12.75 GHz |
| LO Frequency 1 | L: 9.75 GHz |
| LO Frequency 2 | H: 10.75 GHz |
| LO Stability | ±10 kHz |
| LO Type | PLL |
| Noise Figure Max | .85 dB |
| Noise Figure Typ | 0.8 dB |
| Number Of Onboard Los | Simultaneous Band |
| Output Frequency Band 1 | L: 950 – 1950 MHz |
| Output Frequency Band 2 | H: 950 – 2000 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 62 dB |
| Conversion Gain Min | 50 dB |
| Conversion Gain Typ | 55 dB |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Input VSWR | 2.2 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 450 mA max. (each band) |
| Power Requirements | +12 to +24V DC (each band) |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -50 to +70°C |

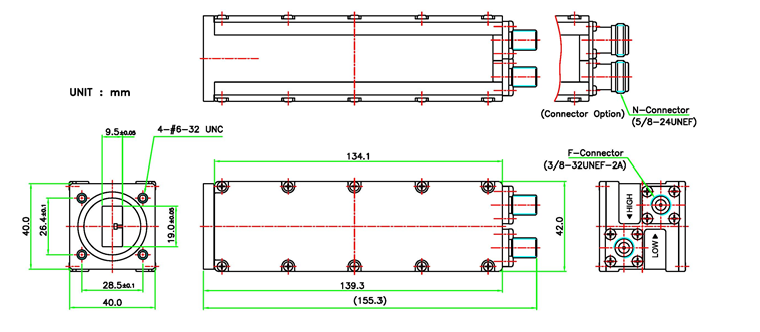

| PHYSICAL SPECIFICATIONS | |
| Product Height | 40 mm |
| Product Length | 155 mm |
| Product Weight | 0.45 kg |
| Product Width | 42 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.298 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.745 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 65 mm |
| Package Length Case 1 | 145 mm |
| Package Width Case 1 | 95 mm |
| Unit Package Dimensions | 145 x 95 x 65 mm |
| Warranty | 3 years |
Additional information
| Weight | 0.45 kg |
|---|---|
| Dimensions | 15.5 × 4.2 × 4 cm |
| Brand | Norsat International Inc. |
| Band | |
| Product Code | 1108DHN-1-EOL |
| Condition | New |
| Availability | 1 pcs |
| Weight | 0.45 KGS |
| LO Type | PLL |
| LO Frequency | L: 9.75 GHz |
| Input Frequency Band | L: 10.70 – 11.70 GHz |
| Output Frequency Band | L: 950 – 1950 MHz |
| Noise Figure Max | .85 dB |
| Number Of Onboard Los | Simultaneous Band |
