Norsat 2209HSAF 2000 Single Band Ku-Band PLL LNB (0.9 dB)
Band: Ku-Band · Model: 2209HSAF · Noise Figure: 1.0 dB · LO: 10.75 GHz
Description
Norsat 2209HSAF 2000 Single Band Ku-Band PLL LNB (0.9 dB)
Product Information

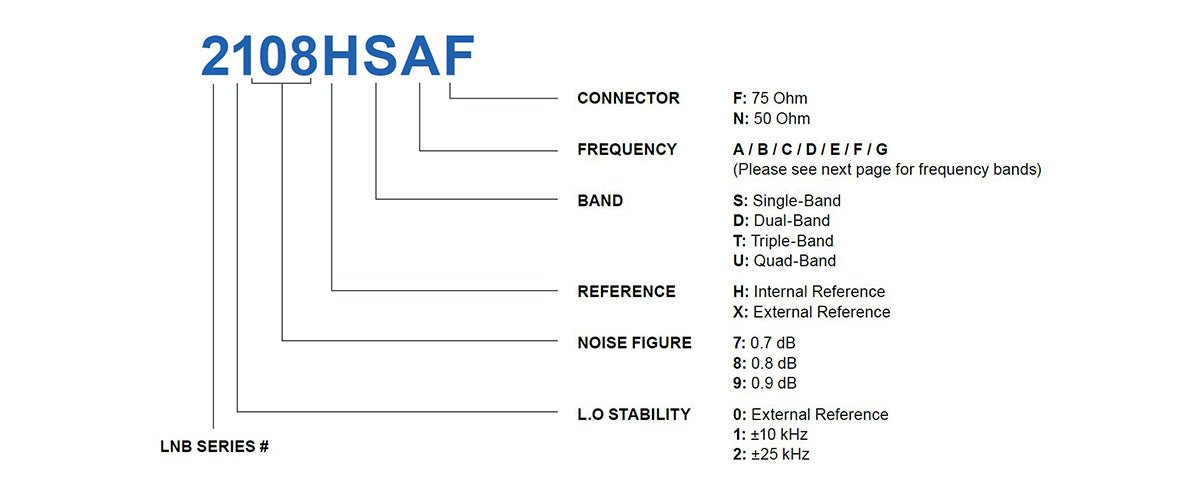

| Product Code | 2209HSAF |
| Condition | New |
| Availability | 10 – 12 Weeks |
| Weight | 0.26 KGS |
| Width | 4.37 (cm) |
| Height | 4.32 (cm) |
| Depth | 11.33 (cm) |
Technical Specifications
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Duty Cycle | 50% ± 10% |

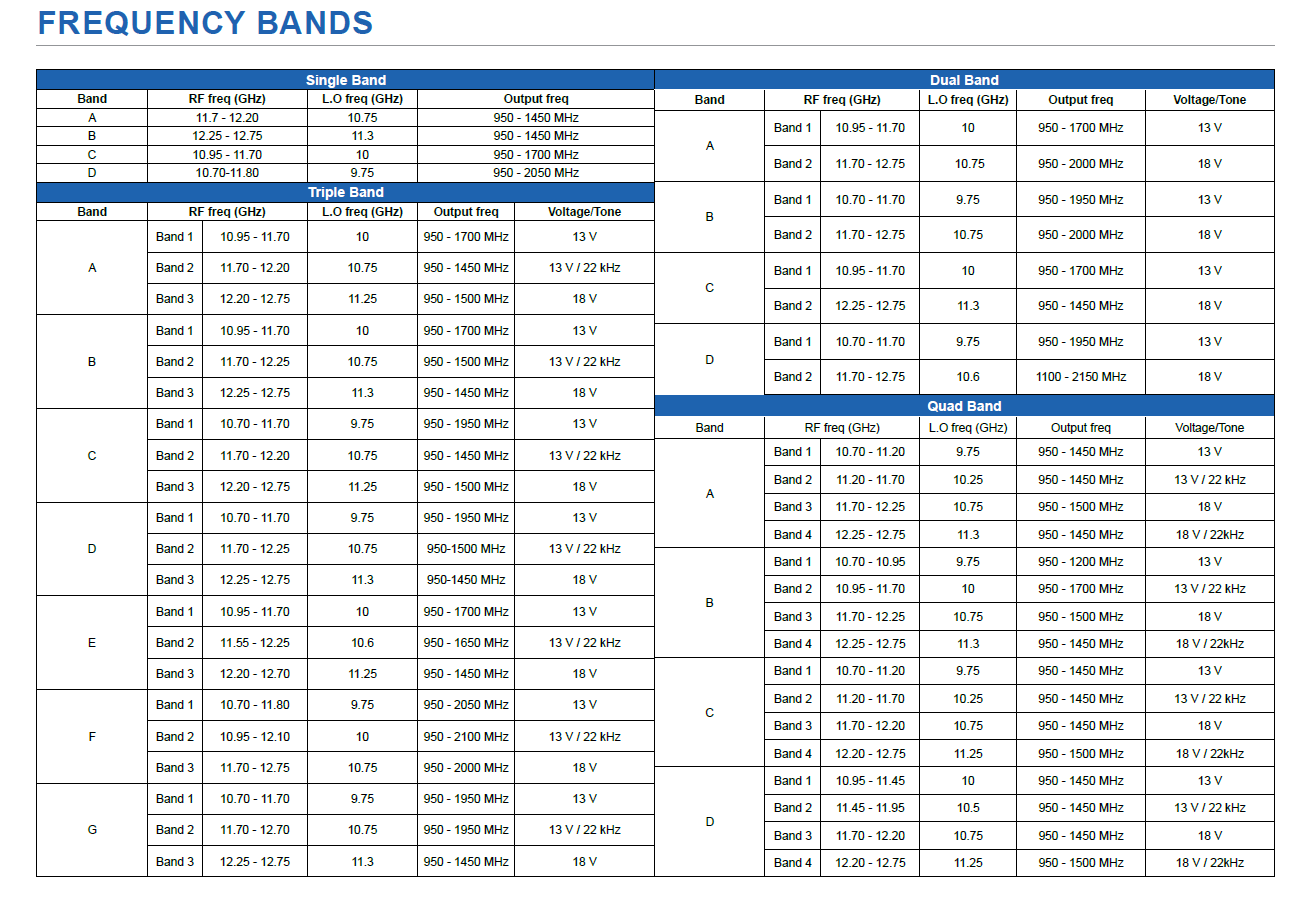

| Input Frequency Band 1 | 11.70 – 12.20 GHz |
| LO Frequency 1 | 10.75 GHz |
| LO Stability | ±25 kHz |
| LO Type | PLL |
| Noise Figure Max | 1.0 dB |
| Noise Figure Typ | 0.9 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 – 1450 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 6 dB p-p |
| Input VSWR | 2.3 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.2 : 1 max. |
| Phase Noise 0.1Khz Offset Max | -65 dBc/Hz |
| Phase Noise 1Khz Offset Max | -75 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| Phase Noise 100Khz Offset Max | -93 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 350 mA max |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 – 95% |
| IP Rating | IP 66 |
| Temperature Operational | -40°C to +70°C |
| Temperature Storage | -50 to +80˚C |

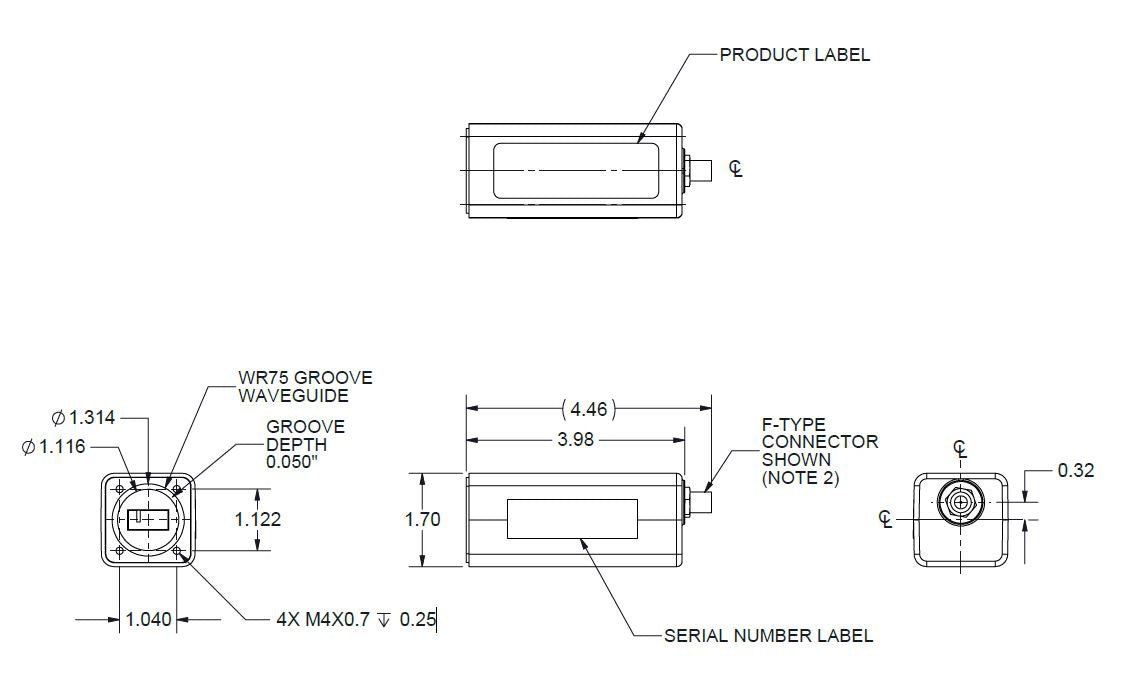

| PHYSICAL SPECIFICATIONS | |
| Product Height | 1.70 in |
| Product Length | 4.46 in |
| Product Weight | 0.255 kg |
| Product Width | 1.72 in |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.23 kg |
| Aluminium COO | CN |
| Aluminium Total Value | $ 0.575 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 135 x 68 x 48 mm |
| Unit Package Height | 48 mm |
| Unit Package Length | 135 mm |
| Unit Package Weight | 0.335 kg |
| Unit Package Width | 68 mm |
| Warranty | 3 years |
Additional information
| Weight | 0.26 kg |
|---|---|
| Dimensions | 11.33 × 4.37 × 4.32 cm |
| Brand | Norsat International Inc. |
| Band | |
| Product Code | 2209HSAF |
| Condition | New |
| Availability | 10 – 12 Weeks |
| Weight | 0.26 KGS |
| LO Type | PLL |
| LO Frequency | 10.75 GHz |
| Input Frequency Band | 11.70 – 12.20 GHz |
| Output Frequency Band | 950 – 1450 MHz |
| Noise Figure Max | 1.0 dB |
| Number Of Onboard Los | Single-Band |
