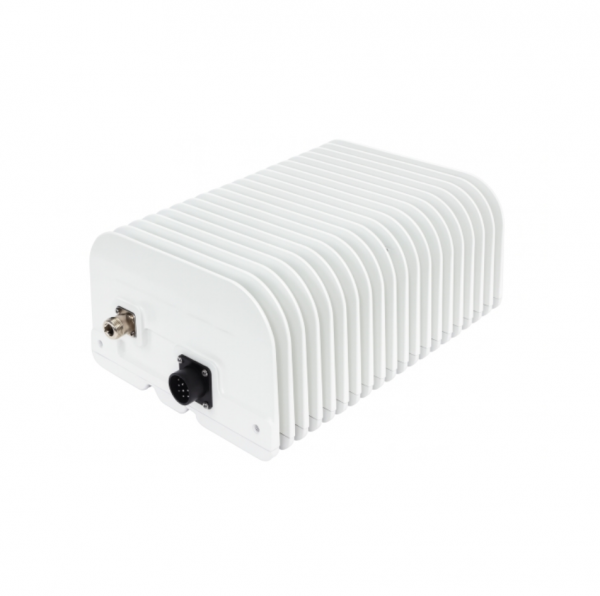

Ka-band 10W BUC (fanless)

Description

Part number: T2910 T29E10 T3010
Input Frequency: 950 – 1450 MHz 1000 – 2000 MHz 1000 – 2000 MHz
LO Frequency: 28.55 GHz 28.0 GHz 29.0 GHz
Output Frequency: 29.5 – 30.0 GHz 29.0 – 30.0 GHz 30.0 – 31.0 GHz
Output Power: 10W (40dBm) @Psat
Phase Noise: @1KHz -73dBc
Gain: 65dB Δ15dB 0.5dB step
AC/DC Power: +48VDC 70W
