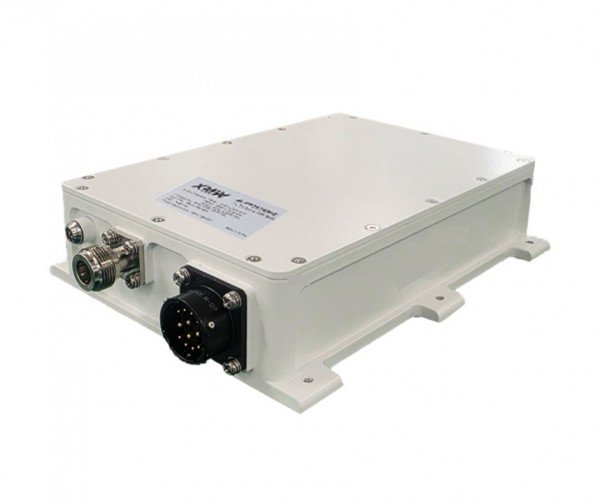

Ka Quad-band 1W BUC (fanless)

Description

Part number: TQ2901
Input Frequency: 950 – 1950 MHz for each band
LO Frequency: 26.55 GHz 27.55 GHz 28.05 GHz 29.05 GHz
Output Frequency: 27.5 – 28.5 GHz 28.5 – 29.5 GHz 29.0 – 30.0 GHz 30.0 – 31.0 GHz
Output Power: 1W (27dBm) @
Phase Noise: @1KHz -73dBc
Gain: 45dB Δ20dB 0.5dB step
AC/DC Power: +28VDC 30W
