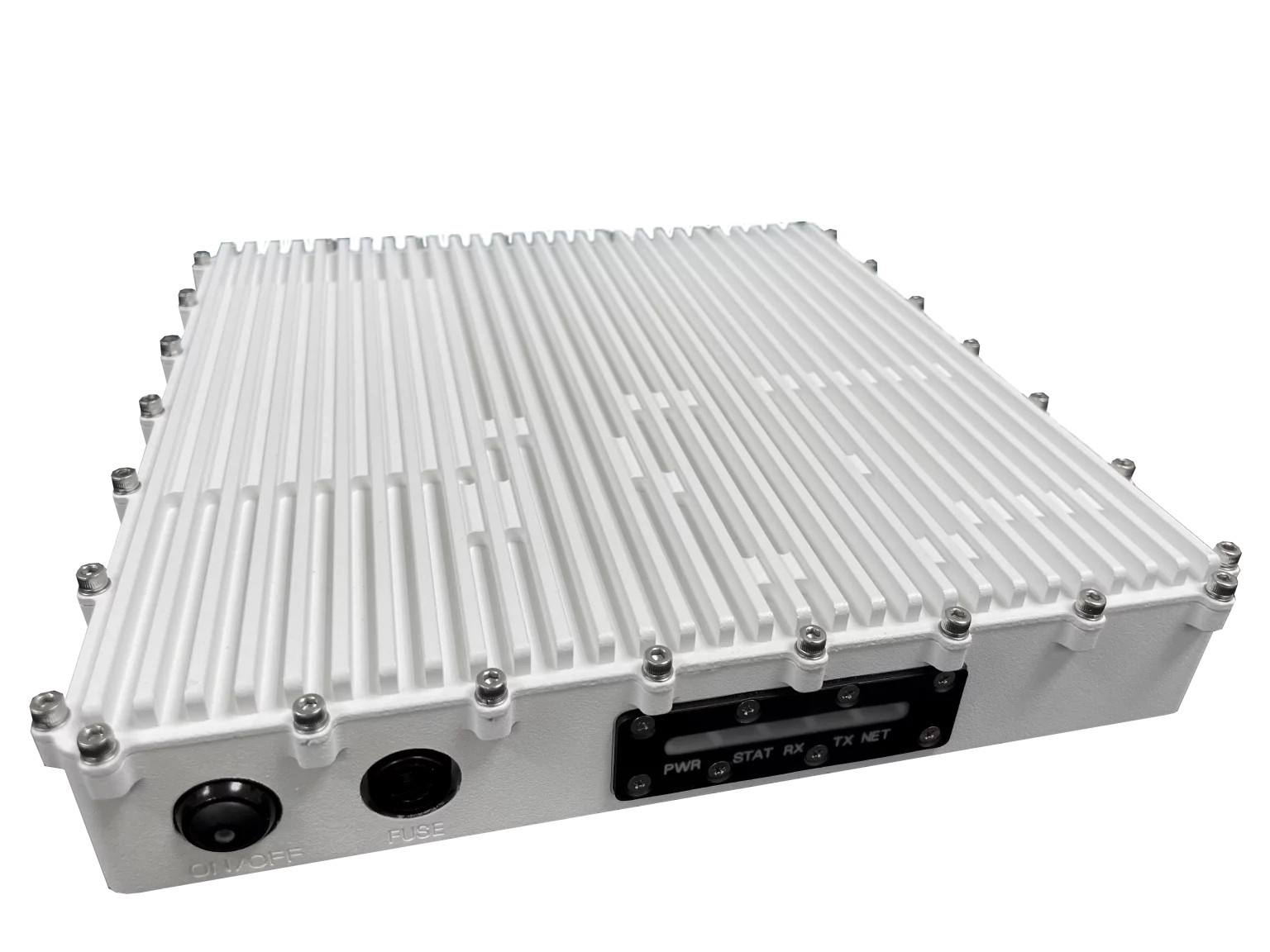

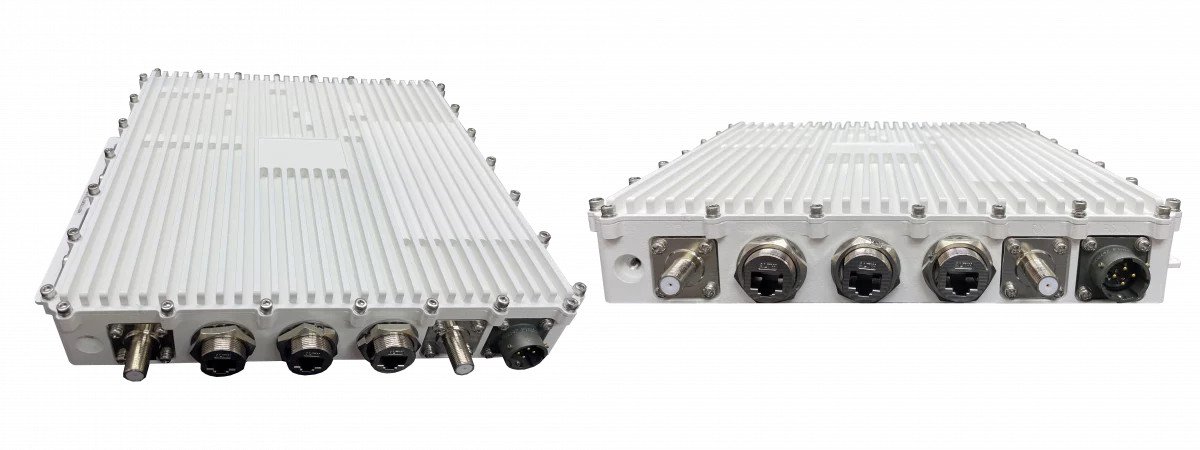

iDirect ASM1200 Series Satellite Modem (iQ200 Outdoor Satellite Modem)
¥20,847.00
Compatible on both the Evolution and Velocity platforms, the ASM1200 features high-speed broadband IP connectivity over satellite using Very Small Aperture Terminals (VSAT) for C-, Ku- and Ka-bands and OpenAMIP mobility in an IP67 rated enclosure. OpenAMIP is an IP based protocol that facilitates the exchange of information between an Antenna Controller Unit and a satellite modem ensuring a seamless integration. The outdoor modem is suitable for enterprise, cellular backhaul, land mobile and maritime applications.
Description
Compatible on both the Evolution and Velocity platforms, the ASM1200 features high-speed broadband IP connectivity over satellite using Very Small Aperture Terminals (VSAT) for C-, Ku- and Ka-bands and OpenAMIP mobility in an IP67 rated enclosure. OpenAMIP is an IP based protocol that facilitates the exchange of information between an Antenna Controller Unit and a satellite modem ensuring a seamless integration. The outdoor modem is suitable for enterprise, cellular backhaul, land mobile and maritime applications.
Features of the ASM1200
- DVB-S2 (up to 45 Msps)/DVB-S2X (up to 100 Msps) outbound
- Supports a full range of DVB-S2X MODCODs up to 256APSK
- Adaptive TDMA (up to 15 Msps, 16QAM) inbound
- Ideal for fixed, mobile, and enterprise-class applications
- 10 and 50 MHz reference for BUC compatibility
- OpenAMIP compatibility for ease of integration
- Layer 2 and Layer 3 optimized
- Optional 256-bit AES Link Encryption
- IP67 rated weatherproof enclosure
- RoHS Compliant
Compatibility – Evolution and iDirect Velocity compatible
|
RX |
TX |
||
|
Network Topology |
DVB-S2X/ACM |
DVB-S2/ACM |
Adaptive TDMA |
|
Modulation |
QPSK, 8PSK, 16APSK, 32APSK, 64APSK, 128APSK, 256APSK |
QPSK, 8PSK, 16APSK, 32APSK |
SS-BPSK, BPSK, QPSK, 8PSK, 16QAM |
|
FEC |
Refer to the LBA guide |
LDPC 1/4 – 8/9 |
2D 16-State 1/2 – 6/7 |
|
Symbol Rate |
5 Msps to 100 Msps |
1 Msps to 45 Msps |
128 Ksps to 15 Msps |
|
Spread Spectrum |
NA |
NA |
Spreading Factor: 2,4,8; Up to 7.5 Mcps |
Technical Downloads
Additional information
| Weight | 2.8 kg |
|---|---|
| Dimensions | 23 × 23 × 4.3 cm |
| Brand | iDirect |
| Weight | 2.80 KGS |
| Width | 23.00 (cm) |
| Height | 4.30 (cm) |
| Depth | 23.00 (cm) |
