Double Ridge Waveguide–Coaxial Converter

Description

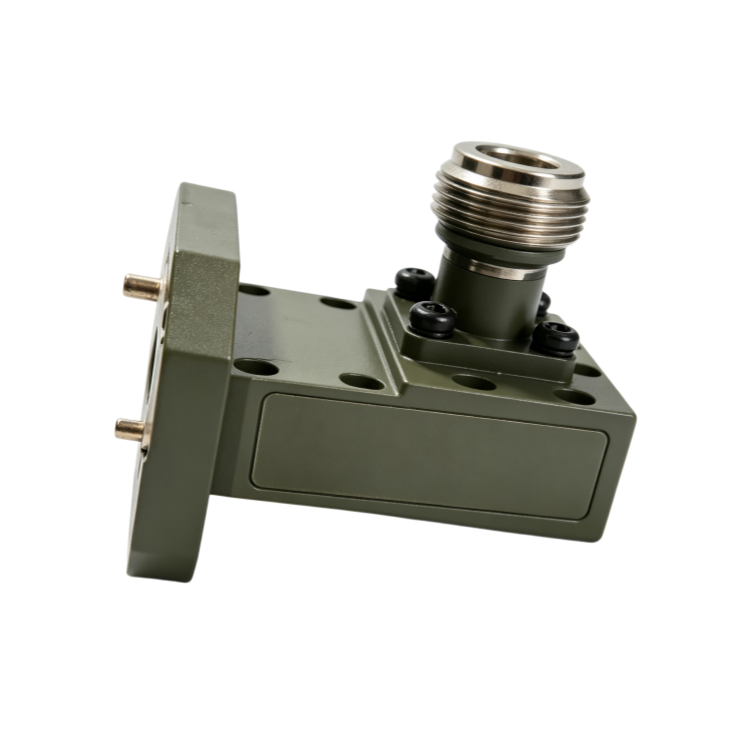

Double Ridge Waveguide–Coaxial Converter

ShenzhenHuashiDouble Ridge Waveguide–Coaxial Converter is a high-performance microwave component product from HS Microwave. This manual compiles technical specifications for all models in the series, for engineering design, system integration, and procurement reference. All data is from original factory test reports, unmodified.

Key Features

• Double-ridge structure, ultra-wideband

• Bandwidth ratio up to 1:3+ per unit

• IL ≤0.3 dB, VSWR ≤1.4

• N / SMA / 2.92mm connectors supported

• 24JS standard double-ridge flanges

• Ideal for wideband test & measurement

• Compact, smooth transition

• Replaces multiple standard WG transitions

Typical Applications

1. Wideband microwave testing

2. EMC testing

3. EW wideband reception

4. Phased-array feed networks

5. mmWave research

6. Production wideband calibration

Models & Specifications

Model	Freq(GHz)	IL(dB)	VSWR	Connector	DR Waveguide	WRD Type
HS-DRTN150	1.5-3.6	0.3	1.4	N	24JS1500	WRD150D24
HS-DRTN200	2-4.8	0.3	1.4	N	24JS2000	WRD200D24
HS-DRTN250	2.6-7.8	0.3	1.4	N	24JS2500	WRD250D24
HS-DRTN350	3.5-8.2	0.3	1.4	N	24JS3500	WRD350D24
HS-DRTN475	4.75-11	0.3	1.4	N	24JS4750	WRD475D24
HS-DRTN500	5-18	0.3	1.4	SMA	24JS5000	WRD500D24
HS-DRTN580	5.8-16	0.3	1.4	SMA	24JS15800	WRD580D24
HS-DRTN650	6.5-18	0.3	1.4	SMA	24JS6500	WRD650D24
HS-DRTN750	7.5-18	0.3	1.4	SMA	24JS7500	WRD750D24
HS-DRTN700	7-18.5	0.3	1.4	SMA	24JS7000	WRD700D24
HS-DRTN1100	11-26.5	0.3	1.4	2.92mm-K	24JS11000	WRD1100C24
HS-DRTN1800	18-40	0.3	1.4	2.92mm-K	24JS18000	WRD1800C24



General Specifications

Parameter	Specification
Impedance	50 Ω
Operating Temp.	-40°C ~ +85°C
Storage Temp.	-55°C ~ +105°C
Rel. Humidity	≤95% (non-condensing)
Material	Aluminum alloy
Finish	Nickel plating
Mounting	Flange mount
Power Handling	Custom per model
Bandwidth Ratio	Up to 1:3.5



Model Naming Convention

HS – DRTN – XXXX

│      │     └─ XXXX = Freq. indicator (e.g. 150 = starts 1.5GHz)

│      └─────── DRTN = Double Ridge Transverter N-type

└────────────  HS = Brand prefix
