Waveguide–Coaxial Converter,波导同轴转换器 500MHz–60GHz

Description

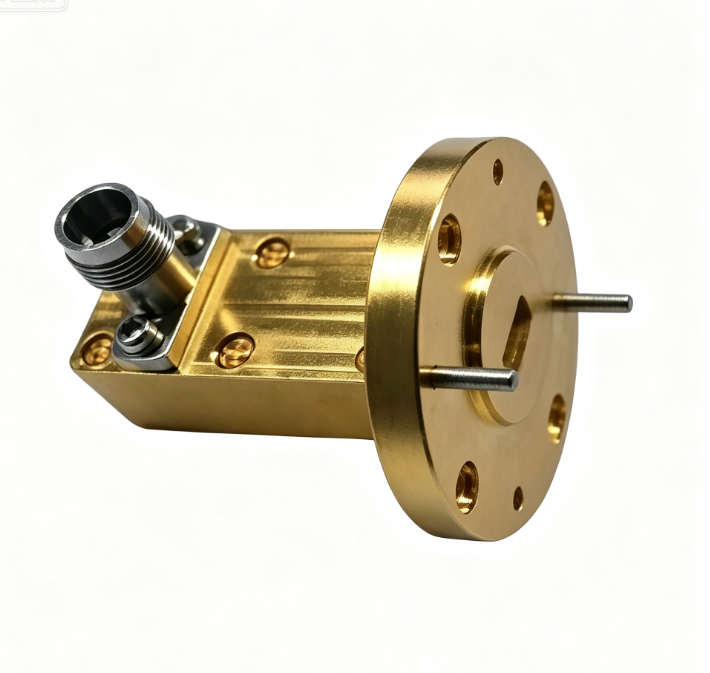

Waveguide–Coaxial Converter

波导同轴转换器 (500MHz–60GHz)

频率范围 0.75–59.6 GHz

插损 ≤0.3/0.5 dB

驻波 ≤1.25/1.35/1.5

波导 WR975–WR19



Doc No.: HS-WaveguideCoaxialConverter-TD-2025

Version: V1.0    Date: 2025

Product Overview

Waveguide–Coaxial Converter (波导同轴转换器 (500MHz–60GHz)) is a high-performance microwave component product from HS Microwave. This manual compiles technical specifications for all models in the series, for engineering design, system integration, and procurement reference. All data is from original factory test reports, unmodified.

Key Features

• Full frequency coverage 500MHz–60GHz
• IL ≤0.3 dB (≤26.5GHz) / ≤0.5 dB (>26.5GHz)
• VSWR ≤1.25 (low freq) / ≤1.5 (high freq)
• N / SMA / 2.92mm / 2.4mm connectors supported
• Full waveguide series WR975–WR19
• Flange standards FDP/FDM/FBP/FUGP
• Compact structure, smooth transition
• Ideal for test & measurement and system integration

Typical Applications

1. Microwave test systems
2. SatCom ground terminals
3. Radar Tx/Rx front-ends
4. mmWave laboratories
5. Antenna anechoic chambers
6. Production-line automated test

Models & Specifications

Model	Freq(GHz)	IL(dB)	VSWR	Connector	Waveguide	BJ	Flange
HS-TN9	0.75-1.15	0.3	1.25	N	WR975	BJ9	FDP/FDM
HS-TN12	0.96-1.46	0.3	1.25	N	WR770	BJ12	FDP/FDM
HS-TN14	1.13-1.73	0.3	1.25	N	WR650	BJ14	FDP/FDM
HS-TN18	1.45-2.20	0.3	1.25	N	WR510	BJ18	FDP/FDM
HS-TN22	1.72-2.61	0.3	1.25	N/SMA	WR430	BJ22	FDP/FDM
HS-TN26	2.17-3.30	0.3	1.25	N/SMA	WR340	BJ26	FDP/FDM
HS-TN32	2.60-3.95	0.3	1.25	N/SMA	WR284	BJ32	FDP/FDM
HS-TN40	3.22-4.90	0.3	1.25	N/SMA	WR229	BJ40	FDP/FDM
HS-TN48	3.94-5.99	0.3	1.25	N/SMA	WR187	BJ48	FDP/FDM
HS-TN58	4.64-7.05	0.3	1.25	N/SMA	WR159	BJ58	FDP/FDM
HS-TN70	5.38-8.17	0.3	1.25	N/SMA	WR137	BJ70	FDP/FDM
HS-TN84	6.57-9.99	0.3	1.25	N/SMA	WR112	BJ84	FBP/FBM/FBE
HS-TN100	8.20-12.4	0.3	1.25	N/SMA	WR90	BJ100	FBP/FBM/FBE
HS-TN120	9.84-15.0	0.3	1.25	N/SMA	WR75	BJ120	FBP/FBM/FBE
HS-TN140	11.9-18.0	0.3	1.25	N/SMA	WR62	BJ140	FBP/FBM/FBE
HS-TN180	14.5-22.0	0.3	1.25	2.92/SMA	WR51	BJ180	FBP/FBM/FBE
HS-TN220	17.6-26.7	0.3	1.35	2.92/SMA	WR42	BJ220	FBP/FBM/FBE
HS-TN260	21.7-33.0	0.3	1.35	2.92/SMA	WR34	BJ260	FBP/FBM/FBE
HS-TN320	26.5-40.0	0.3	1.35	2.92/2.4	WR28	BJ320	FBP/FBM/FBE
HS-TN400	32.9-50.1	0.5	1.5	2.4	WR22	BJ400	FUGP
HS-TN500	39.2-59.6	0.5	1.5	2.4	WR19	BJ500	FUGP



General Specifications

Parameter	Specification
Impedance	50 Ω (coax) / Standard waveguide impedance
Operating Temp.	-40°C ~ +85°C
Storage Temp.	-55°C ~ +105°C
Rel. Humidity	≤95% (non-condensing)
Material	Aluminum alloy
Finish	Nickel plating / conductive oxidation
Mounting	Flange mount
Power Handling	Custom per model
Transition	Step / taper transition



Model Naming Convention

HS – TN – XX

│     │    └─ XX = Waveguide number (BJ9–BJ500)

│     └────── TN = Transverter

└──────────── HS = Brand prefix
