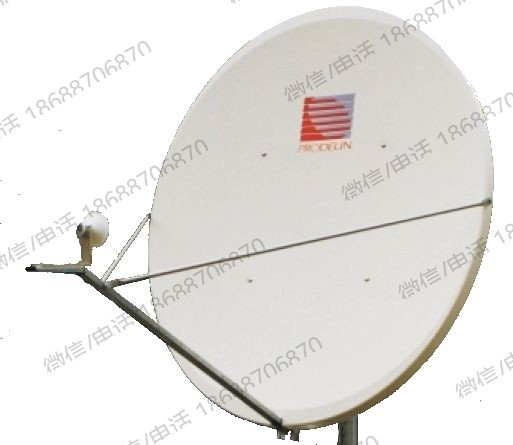

CPI 1184-3210 1.8 Meter C & Ku-Band-Linear Rx/Tx Antenna
¥1,724.61
id=”tab-description”> Details 1.8 Meter Transmit Receive Antenna Ku band 2 Port Tx Rx Cross Pol Feed Assembly Intelsat Type Approved Precision Compression Molded Reflector Options: 2 Panel Sectional R…
Description
id=”tab-description”> Details
- 1.8 Meter Transmit Receive Antenna
- Ku band 2 Port Tx Rx Cross Pol Feed Assembly
- Intelsat Type Approved
- Precision Compression Molded Reflector
- Options:
- 2 Panel Sectional Reflector
- Non Penetrating Roof Mount
- Pedestal Mount
- De-icing System
- BUC and LNBs
- CPI Satcom & Antenna Technologies Inc. 1184-3210
- Former Model 1184-990_0800-3795 (Prodelin Antenna)
Technical Specifications
| Electrical | C-Band Linear | C-Band Circular | Ku-Band | |
| Antenna Size | 1.8 M (71 in.) | 1.8 M (71 in.) | 1.8 M (71 in.) | |
| Operating Frequency (GHz) Receive Transmit |
3.625 – 4.20 GHz 5.850 – 6.425 GHz |
3.625 – 4.20 GHz 5.850 – 6.425 GHz |
10.95 – 12.75 GHz 13.75- 14.50 GHz |
|
| Midband Gain ( +/- .2 dB) | Receive Transmit | 35.50 dBi 39.50 dBi |
35.50 dBi 39.50 dBi |
45.00 dBi 46.50 dBi |
| Antenna Noise Temperature 10° Elevation 20° Elevation 30° Elevation 40° Elevation |
56 K 49 K 47 K 46 K |
30 K 23 K 21 K 20 K |
44 K 38 K 35 K 33 K |
|
|
Sidelobe Envelope, Co-Pol (dBi) 100/ / D < e ≤ 20° 20° < e ≤ 26.3° |
29 – 25 Loge dBi -3.5 dBi 32 – 25 Loge dBi -10 dBi (averaged) |
29 – 25 Loge dBi -3.5 dBi 32 – 25 Loge dBi -10 dBi (averaged) |
29 – 25 Loge dBi -3.5 dBi 32 – 25 Loge dBi -10 dBi (averaged) |
|
| Cross-Pol Isolation (Linear) | >30 dB on axis | N/A | >30 dB on axis | |
| Axial Ratio (Circular) | Receive Transmit | N/A N/A | 2.28 1.6 |
N/A N/A |
| VSWR | 1.3:1 Max. | 1.3:1 Max. | 1.3:1 Max. | |
| Feed Interface | Receive Transmit | CPR 229 F CPR 137 or Type N |
CPR 229 F CPR 137 or Type N |
Available in a variety of designs Available in a variety of designs |
| Mechanical | ||||
| Reflector Material | Glass Fiber Reinforced Polyester SMC | |||
| Antenna Optics | Prime Focus, One-Piece Offset Feed | |||
| Mast Pipe Size | 3.5” SCH 40 Pipe (4.00” OD) 10.16 cm. | |||
| Elevation Adjustment Range | 5° to 90°, Continuous Fine Adjustment | |||
| Azimuth Adjustment Range | +/- 45° Fine Adjustment, 360° Continuous | |||
| Mount Type | Elevation over Azimuth | |||
| Shipping Specifications | C-Band: 225 lbs. (103 kg.) Ku-Band: 240 lbs. (109 kg.) | |||
| Environmental Performance | ||||
| Wind Loading | Operational Survival | 50 mph (80 km/h) 125 mph (201 km/h) |
||
| Temperature Operational Survival | -40° to 140° F (-40° to 60° C -50° to 160° F (-46° to 71° C) |
|||
| Rain | Operational Survival | 1/2”/hr 2”/hr | ||
| Ice Operational Survival |
—— 1/2” radial |
|||
| Atmospheric Conditions | Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas | |||
| Solar Radiation | 360 BTU/h/ft2 | |||
