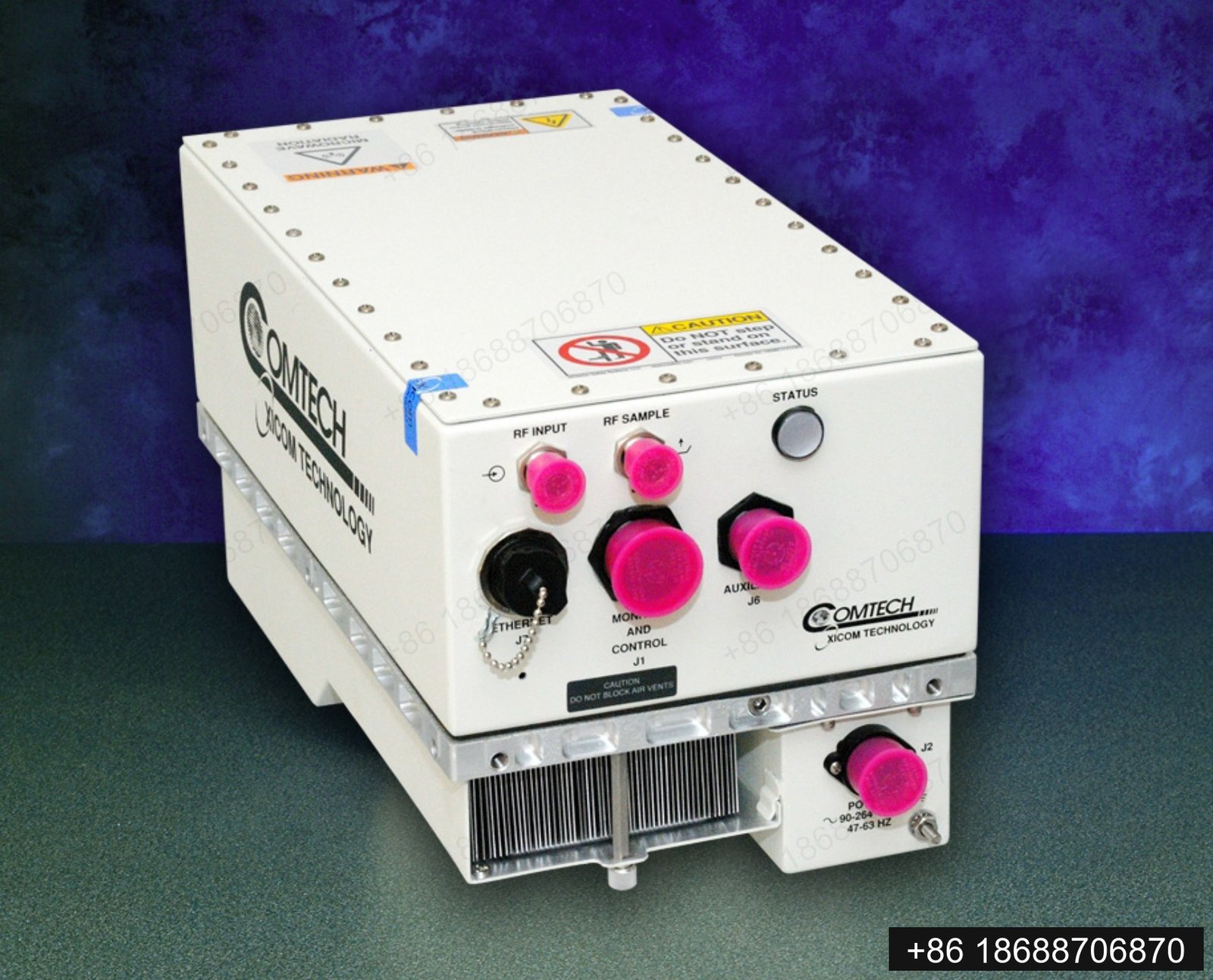

Comtech XTD-750K-B1-1 400 Watt Ku-Band High Efficiency Antenna Mount High Power Amplifier
The XTD-400KHE series is a compact, antenna mountable, traveling wave tube amplifier designed for low cost installation and long life. Intended for outdoor operation, the self contained XTD-400KHE is designed for transportable applications where high
Description
The XTD-400KHE series is a compact, antenna mountable, traveling wave tube amplifier designed for low cost installation and long life. Intended for outdoor operation, the self contained XTD-400KHE is designed for transportable applications where high efficiency, light weight, and high ambient temperature operation are required.
RF filters, cooling, and monitor & control (M&C) systems are all self contained within the package. A high frequency resonant conversion power supply is used that accepts a wide range of prime power (100 to 240 VAC). A remote external controller is available to operate the HPA from a user selected location. Depending upon user requirements, these high power amplifiers can be configured for single thread, redundant, or phase combined configurations.
Additional information
| Weight | 14.06 kg |
|---|---|
| Dimensions | 40.01 × 21.84 × 21.59 cm |
| Brand | Comtech |
| Weight | 14.06 |
| Width | 21.84 |
| Height | 21.59 |
| Depth | 40.01 |
