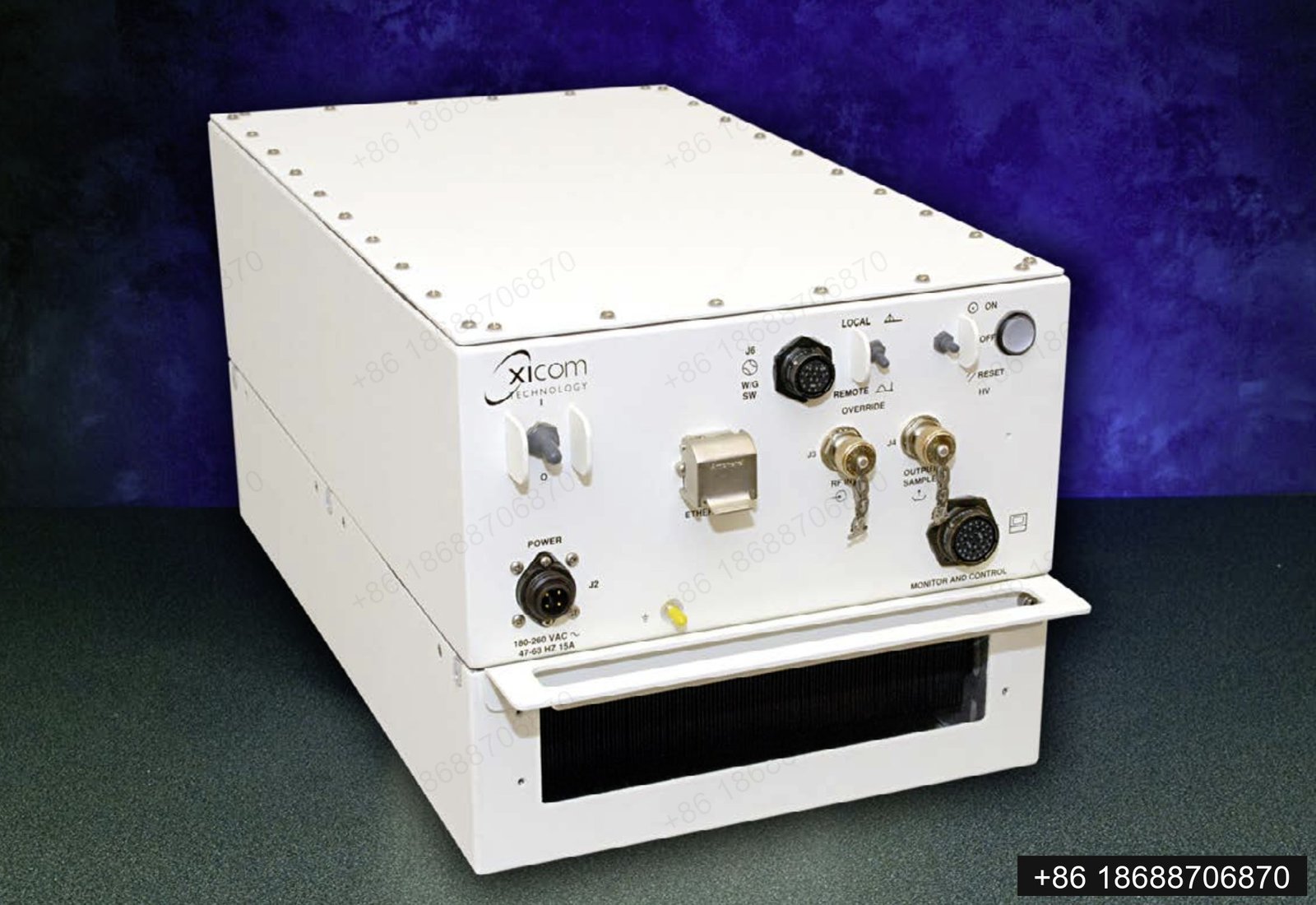

Comtech XTD-1250KHE 1250 Watt Ku-Band Antenna Mount High Power Amplifier
The XTD-1250KHE is a compact, self-contained, antenna mountable power amplifier designed for low cost installation and long life. The XTD-1250KHE design eliminates the need for an amplifier shelter as well as a long waveguide run between the amplifie
Description
The XTD-1250KHE is a compact, self-contained, antenna mountable power amplifier designed for low cost installation and long life. The XTD-1250KHE design eliminates the need for an amplifier shelter as well as a long waveguide run between the amplifier and antenna feed horn. RF filters, cooling, and monitoring & control (M&C) systems are all self-contained. The XTD-1250KHE incorporates high efficiency, multi-stage collector 1250W peak power TWT. The output operational power is limited, however the linear power performance at 575W and below is equivalent to a 1250W tube. Depending upon user requirements, the amplifier can be configured for either single thread or redundant system operation.
The XTD-1250KHE may be configured for single thread, redundant, phase-combined, or linearized operation. A remote external controller is available to operate the HPA from a user selected location. Mounting brackets can be supplied to mount the HPA to most popular antennas.
Additional information
| Weight | 36.8 kg |
|---|---|
| Dimensions | 54.61 × 32.39 × 27.94 cm |
| Brand | Comtech |
| Weight | 36.80 |
| Width | 32.39 |
| Height | 27.94 |
| Depth | 54.61 |
