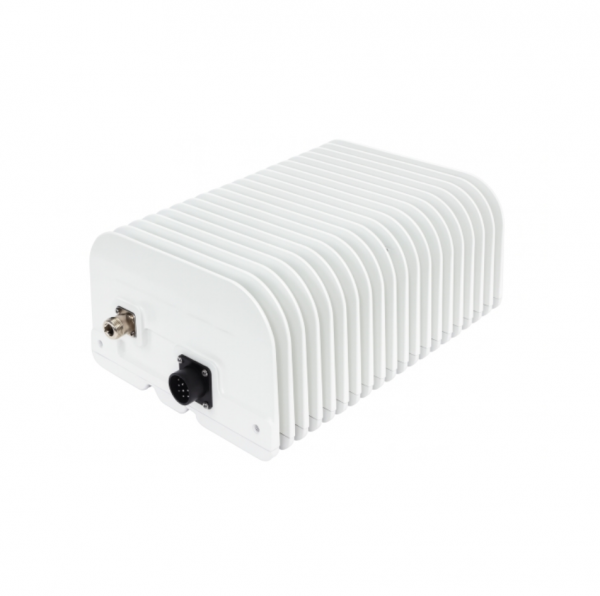

C-band 10W BUC (fanless)

Description

Part number: T5010 T5110 T5210 T5310 T5410 T6010
Input Frequency: 950 – 1525 MHz 950 – 1750 MHz 950 – 1825 MHz 950 – 1750 MHz 975 – 1475 MHz 950 – 1250 MHz
LO Frequency: 4.9 GHz 4.9 GHz 4.9 GHz 4.775 GHz 4.75 GHz 5.775 GHz
Output Frequency: 5.85 – 6.425 GHz 5.85 – 6.65 GHz 5.85 – 6.725 GHz 5.725 – 6.525 GHz 5.725 – 6.225 GHz 6.725 – 7.025 GHz
Output Power: 10W (40dBm) @
Phase Noise: @1KHz -73dBc
Gain: 65dB Δ15dB 0.5dB step
AC/DC Power: +24VDC 80W
