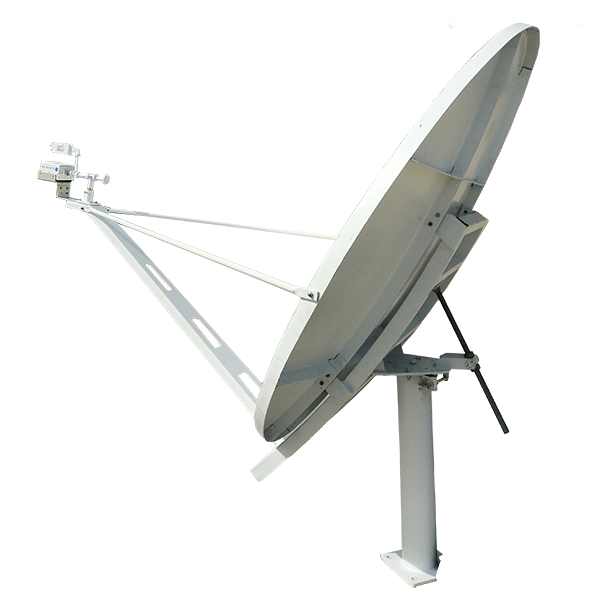

KEY SPECIFICATIONS
| acquisition and tracking | Manual |
|---|---|
| antenna aperture | 1.8 m |
| antenna category | Earth Station |
| band | Ku-Band |
| Product Revision | B |
ANTENNA SPECIFICATIONS
| antenna drive mode | manual structure antenna |
|---|---|
| antenna type | Single Offset |
| number of ports | 2-ports |
| polarization | Linear |
| Rx axis ratio | ≤35 dB |
| sidelobe | 29 – 25 logθ(1°≤θ＜20°) |
| Tx axis ratio | ≤35 dB |
RF SPECIFICATIONS
| noise temperature elevation 10° | 43 K |
|---|---|
| noise temperature elevation 20° | 36 K |
| noise temperature elevation 40° | 32 K |
| port isolation Rx-Tx | 85 dB |
| Rx feed insertion loss | ≤0.2 dB |
| Rx frequency | 10.70 ‐ 12.75 GHz |
| rx gain | 45.22 dBi @ 12.5GHz |
| Rx VSWR | 1.25 : 1 |
| Tx feed insertion loss | ≤0.2 dB |
| Tx frequency | 13.75 ‐ 14.50 GHz |
| tx gain | 46.6 dBi @ 12.25GHz |
| Tx VSWR | 1.25 : 1 |
ELECTRICAL SPECIFICATIONS
| power capacity | 2 KW |
|---|
INTERFACE SPECIFICATIONS
| Rx interface | WR-75 |
|---|---|
| Tx interface | WR-75 |
ENVIRONMENTAL SPECIFICATIONS
| humidity | 1.0 |
|---|---|
| ice load | Icing 13mm: normal work; Icing 25mm: no damage |
| seismic capacity horizontal | 0.3 G |
| seismic capacity vertical | 0.1 G |
| temperature operational | -30°C to +50°C |
| windspeed operational | 72 km/h |
| windspeed survival | 216 km/h |
PHYSICAL SPECIFICATIONS
| motion range AZ | 0° – 360° (continuous) |
|---|---|
| motion range EL | 5° – 90° |
| motion range POL | ±90° |
| product height case 1 | 520 mm |
| product height case 2 | 535 mm |
| product length case 1 | 2050 mm |
| product length case 2 | 1.155 m |
| product width case 1 | 1.95 m |
| product width case 2 | 450 mm |
| RMS | ≤0.5 mm |
| structure | EL Over AZ |
INFORMATION
| HS Code | 8529109090 |
|---|---|
| Country of Origin | Made in China |
| Ex Works | Hong Kong |
| ECCN Number | 5A991.B |
| Warranty | 1 year |
| Dangerous Goods | – |
| Unit Package Dimensions | – |
| Unit Package Weight | – |
| Total Aluminium Content | 0 kg |
| Aluminum Country of Smelt and Cast | – |
| Total Aluminium Value | $ 0 |
