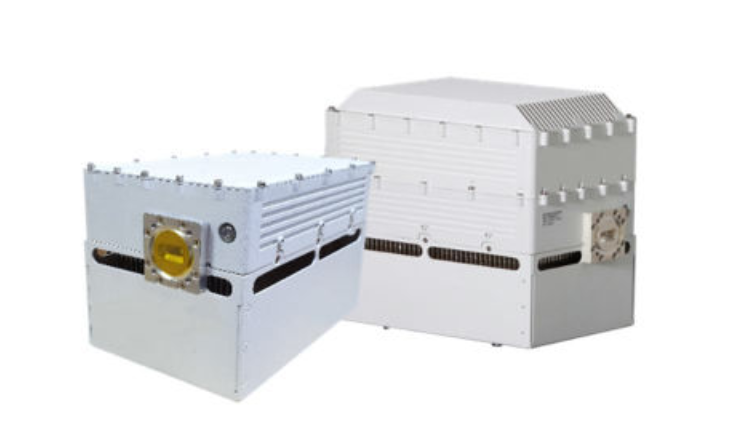

Agilis ALB2292F7-25C ALB229 Series Compact 25W Ku Band Block-Up Converter
¥61,447.00
Designed to mount directly to the feedhorn, ideal for SOTM, fixed and maritime applications. Innovative and excellent efficiency thermal design makes this BUC one of the most power efficient, robust and reliable to op…
Description
Designed to mount directly to the feedhorn, ideal for SOTM, fixed and maritime applications. Innovative and excellent efficiency thermal design makes this BUC one of the most power efficient, robust and reliable to operate under harsh outdoor environment.
Easy installation with redundancy ready features to work in 1+1 redundancy mode.
Features
- Feed mountable
- Forward power detection
- Monitoring and Control through Serial and Ethernet ports
- Fault identification and alarm generation
- LED status and alarm indicator
- Auto gain control throughout operating temperature
- Wide DC input ranging 38 to 60Vdc AC input voltage option available
- Wide operating temperature -40°C to +60°C
- IP65 Weatherproof
- RoHS Compliant
| RF Specifications | |
| Freq Band | Transmit: 13.75 – 14.50GHz, IF: 950 – 1700MHz, LO: 12.80GHz |
| Output Power | P_sat (dBm): 44.0dBm (25W), P_1dB (dBm): 40.2dBm (10.5W), P_linear (dBm): – |
| Small Signal Gain | 68dB min |
| Gain Flatness | ±2dB within band, ±1dB over 40MHz |
| Gain Variation | ±2dB within any 10dB range under operating temperature |
| Intermodulation | -25dBc max @ P_linear |
| Spurious | According to EN 301 428 |
| Phase Noise | -93dBc/Hz max @100KHz offset, -83dBc/Hz max @10KHz offset, -73dBc/Hz max @1KHz offset |
| VSWR | 2.0:1 max @input |
| 1.25:1 max @output with optional external isolator | |
| Noise Power Density | Tx Band: -70dBW/4KHz max, Rx Band: -142dBW/4KHz max |
| AC/DC Power | |
| Prime Power | 38 to 60Vdc (DC Model) |
| 90 to 264Vac, 47 to 63Hz (AC Model) | |
| Power Consumption | 200VA max. @16W, 220VA max. @20W, 240VA max. @25W |
| Interface | |
| IF Input | N-Type Female 50Ω |
| RF Output | F-Type Female 75Ω (option), WR75 Square Grooved |
| Reference Requirement | |
| Frequency | 10MHz |
| Source | External, Internal (Option) |
| Ext Ref Level | -5dBm to +5dBm |
| Ext Ref Phase Noise | -160dBc/Hz max @100KHz offset, -155dBc/Hz max @10KHz offset, -150dBc/Hz max @1KHz offset |
| Monitor & Control | |
| Monitor | BUC Temperature, LO Unlock and Status Alarm with LED Indicator, RF Forward Power Detection |
| Control | Gain adjustable 0dB with 0.5dB step, RF Output On/Mute |
| Communication Port | Serial RS232/RS485, Ethernet (SNMP & HTTP) |
| Transmit Redundancy | Redundancy-Ready (with ext. controller unit) |
| Environmental | |
| Operating Temperature | -40°C to +60°C |
| Relative Humidity | Up to 100% |
| Weatherproof | IP65 |
| Mechanical | |
| Dimension (excluding interface connectors) | L200 x W130 x H130mm (25W, DC Model) L7.87″ x W5.12″ x H5.12″ |
| Weight | 3.3Kg / 7.3lbs (25W, DC Model) |
Datasheets / 技术资料下载
Additional information
| Weight | 3.3 kg |
|---|---|
| Dimensions | 13 × 20 × 13 cm |
| Brand | Agilis |
| Model | ALB2292F7-25C |
| Series | ALB 229 Series |
| Frequency Band | Ku-Band |
| Output Power | P_1dB (dBm): 40.2dBm (10.5W), P_linear (dBm): –, P_sat (dBm): 44.0dBm (25W) |
| Small Signal Gain | 68dB Min |
| Gain Flatness | ±1dB over 40MHz, ±2dB within band |
| Gain Variation | ±2dB within any 10dB range under operating temperature |
| Intermodulation | -25dBc max @ P_linear |
| Spurious | According to EN 301 428 |
| Phase Noise | -150dBc/Hz max @1KHz offset, -155dBc/Hz max @10KHz offset, -73dBc/Hz max @1KHz offset; -160dBc/Hz max @100KHz offset, -83dBc/Hz max @10KHz offset, -93dBc/Hz max @100KHz offset |
| VSWR | 2.0:1 max @input |
| Noise Power Density | Rx Band: -142dBW/4KHz max, Tx Band: -70dBW/4KHz max |
| Prime Power | 38 to 60Vdc (DC Model) |
| Power Consumption | 200VA max. @16W, 220VA max. @20W, 240VA max. @25W |
| IF Input Interface | N-Type Female 50Ω |
| RF Output Interface | F-Type Female 75Ω (option), WR75 Square Grooved |
| Reference | 10MHz; External, Internal (Option); -5dBm to +5dBm |
| Monitor | BUC Temperature, LO Unlock and Status Alarm with LED Indicator, RF Forward Power Detection |
| Control | Gain adjustable 0dB with 0.5dB step, RF Output On/Mute |
| Communication Port | Ethernet (SNMP & HTTP), Serial RS232/RS485 |
| Redundancy | Redundancy-Ready (with ext. controller unit) |
| Operating Temperature | -40°C to +60°C |
| Humidity | Up to 100% |
| Ingress Protection | IP65 |
| Dimensions | DC Model) L7.87" x W5.12" x H5.12", L200 x W130 x H130mm (25W |
| Weight | 3.30 kg |
