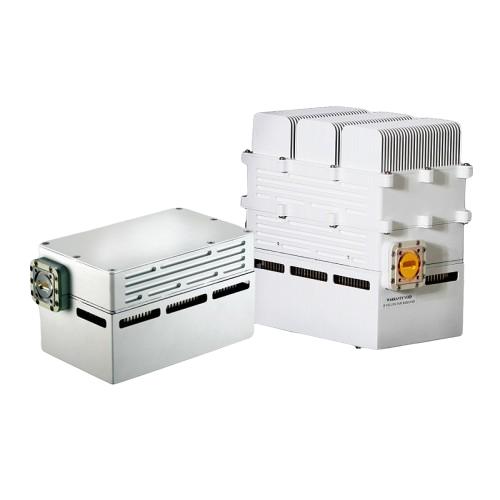

Agilis ALB2290C7-50C ALB229 50W Ku-Band VSAT Outdoor Block-Up Converter N Input (BUC)
¥94,153.00
This small and lightweight BUC is ideal for SOTM applications while also offering benefits for fixed and maritime applications. Designed to be mounted on the feed horn, the BUC has “Best in Class” efficiency and “lowe…
Description
This small and lightweight BUC is ideal for SOTM applications while also offering benefits for fixed and maritime applications. Designed to be mounted on the feed horn, the BUC has “Best in Class” efficiency and “lowest power consumption” with less than 330W. The unit works on a wide range DC power supply of 38V to 60V. Innovative and efficient thermal design makes this BUC on of the smallest, robust, reliable and rugged enough to
withstand outdoor conditions in the industry. The unit can be configured to work in 1:1 redundant mode by adding on a simple redundancy option to the basic unit.
Features
• Compact and lightweight
• Feed mountable
• Available in both standard and extended Ku-Band
• Forward power detection facility
• Intuitive monitoring & control through RS232/485 & Ethernet (SNMP & HTTP)
• Auto ranging 38 to 60VDC Power Supply
• Optional input AC Voltage
• Automatic fault identification & alarm generation
• Wide operating temperature range -40ºC to +60ºC
• IP65 rated housing ( Weather proof Construction)
• RoHS compliant
| RF Specifications | |
| Transmit Frequency | 14.0GHz – 14.5GHz |
| IF Frequency Range | 950MHz to 1450MHz |
| LO Frequency | 13.05GHz (Ku-Band) |
| Output Power | 47dBm (Psat), 43dBm (Plinear) |
| Spectral Re-growth | 30dBc @ 2dB backoff from Plinear at 1.0x symbol rate offset for OQPSK or QPSK |
| Small Signal Gain | 74dB min |
| Gain Flatness | ±2dB over the O/P frequency band |
| Gain Variation | ±2dB over the operating temperature range |
| Gain Control | 20 dB in step of 0.5 dB |
| O/P Spurious | According to EN301428 |
| Phase Noise @ Offset | |
| 1KHz 10KHz 100KHz |
-73dBc/Hz -83dBc/Hz -93dBc/Hz |
| I/P VSWR | 1.5:1 |
| O/P VSWR | 1.25:1 (with optional external isolator) |
| Noise Power Density Tx BD | 70dBW/4KHz |
| Rx BD | 142dBW/4KHz |
| Power | |
| Prime Power | 48VDC (range 38 to 60VDC) via external MS connector, Optional 230VAC (range 96 to 264VAC) |
| Power Consumption | 280W (Typical @ 47dBm) |
| Interfaces | |
| IF Input Interface | 50Ohms N-type Female |
| Output Interface | WR 75G |
| External Reference | |
| Frequency | 10MHz |
| Power | -5dBm to +5dBm |
| External reference phase noise requirement @ frequency offset | |
| 1KHz | -150dBc/Hz |
| 10KHz | -155dBc/Hz |
| 100KHz | -160dBc/Hz |
| Monitor And Control | |
| Monitor | BUC temperature, Status alarm, RF output power, LED status indication |
| Control | Attenuation, RF output mute |
| Interface | RS232/485 & Ethernet (SNMP & HTTP) via external MS connector |
| Tx Redundancy | External RCU (optional for 1+1 redundancy system requirement) |
| Environmental | |
| Operating Temperature | -40°C to +60°C |
| Humidity | Up to 100% |
| Weatherproof | Weather protection sealed to IP65 |
| Mechanical | |
| Dimensions | 200L x 130W x 235H mm (AC option) |
| Weight | 6.0kg / 13.22lbs (AC option) |
| Colour | White Powder Coat |
Datasheets / 技术资料下载
Additional information
| Weight | 6 kg |
|---|---|
| Dimensions | 23.5 × 20 × 13 cm |
| Brand | Agilis |
| Model | ALB2290C7-50C |
| Series | ALB 229 Series |
| Frequency Band | Ku-Band |
| Transmit Frequency | 14.0GHz – 14.5GHz |
| IF Frequency | 950MHz to 1450MHz |
| LO Frequency | 13.05GHz (Ku-Band) |
| Output Power | |
| Small Signal Gain | 74dB Min |
| Gain Flatness | ±2dB over the O/P frequency band |
| Gain Variation | ±2dB over the operating temperature range |
| Gain Control | 20 dB in step of 0.5 dB |
| Intermodulation | 30dBc @ 2dB backoff from Plinear at 1.0x symbol rate offset for OQPSK or QPSK |
| Spurious | According to EN301428 |
| VSWR | 1.5:1; 1.25:1 (with optional external isolator) |
| Noise Power Density | 70dBW/4KHz; 142dBW/4KHz |
| Prime Power | 48VDC (range 38 to 60VDC) via external MS connector, Optional 230VAC (range 96 to 264VAC) |
| Power Consumption | 280W (Typical @ 47dBm) |
| IF Input Interface | 1.5:1; 50Ohms N-type Female |
| RF Output Interface | According to EN301428; 1.25:1 (with optional external isolator); WR 75G |
| Reference | 10MHz; -5dBm to +5dBm |
| Monitor | BUC Temperature, LED status indication, RF output power, Status alarm |
| Control | Attenuation, RF output mute |
| Communication Port | RS232/485 & Ethernet (SNMP & HTTP) via external MS connector |
| Redundancy | External RCU (optional for 1+1 redundancy system requirement) |
| Operating Temperature | -40°C to +60°C |
| Humidity | Up to 100% |
| Ingress Protection | Weather protection sealed to IP65 |
| Dimensions | 200L x 130W x 235H mm (AC option) |
| Weight | 6.00 kg |
| Colour | White Powder Coat |
