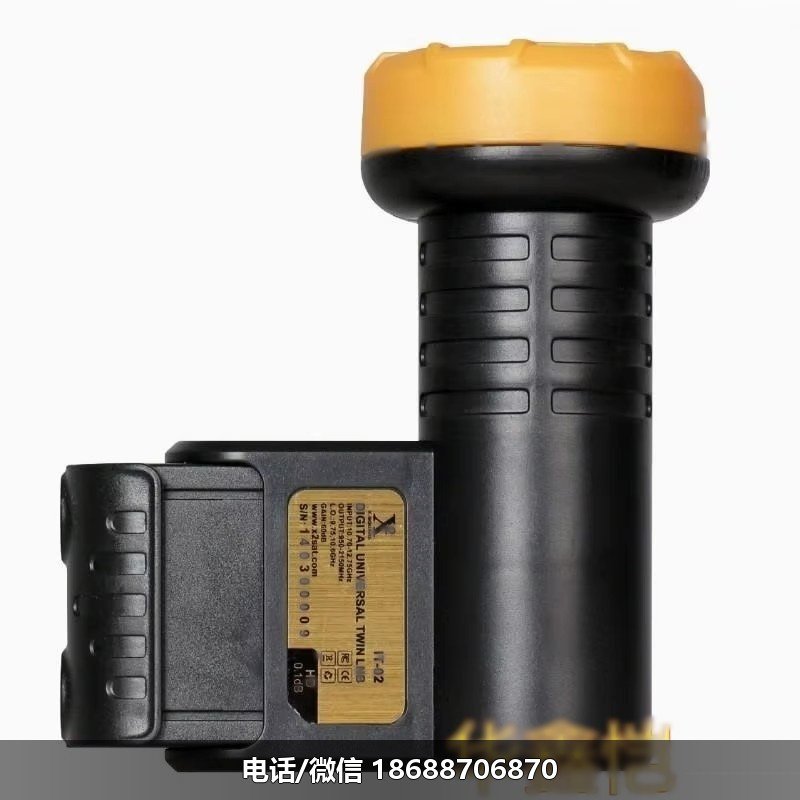

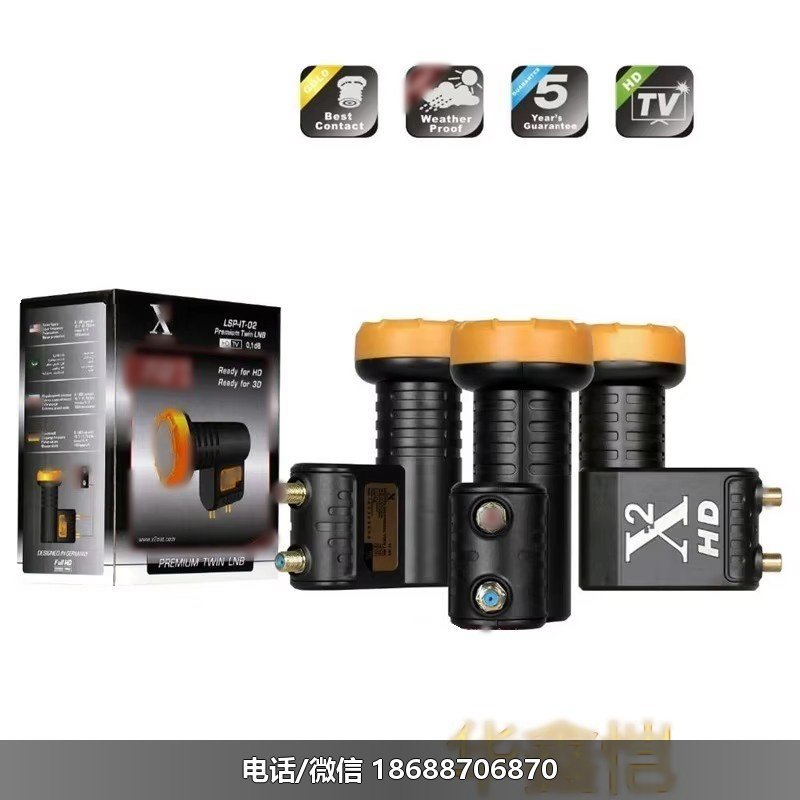

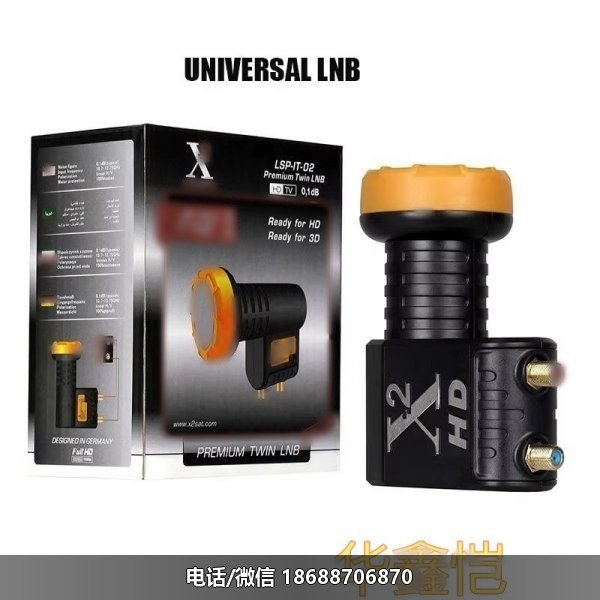

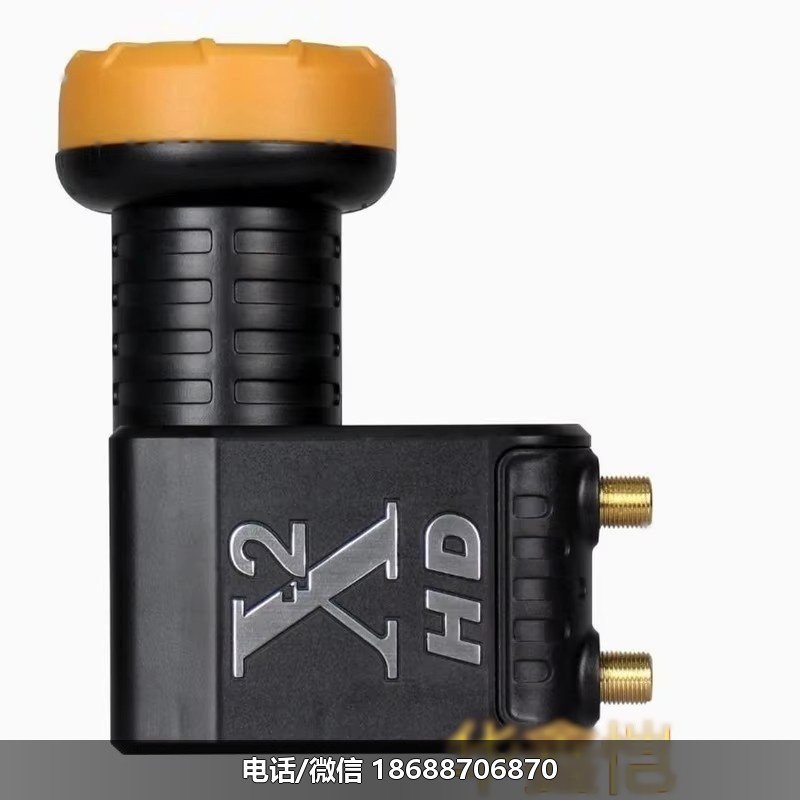

X2- Full HD KU Twin Universal LNB双本振双极化双输出KU头

Description

>

Made especially for Americas and USA markets ,

C) Built in Golden F-Connector for Strong Connectivity ,

D) New Design and New Cap Technology for the best protection from weather and waterproof ,

Technical Details : Input Frequency Range

LOW Band:10.7~11.7GHz

High Band:11.7~12.75GHz Output Frequency Range

Low Band: 950 – 2050MHz

High Band: 1100 – 2150MHz

Input VSWR 2.5:1

Output VSWR 2.5:1

L.O. Frequency

Low Band 9.75GHz

High Band 10.6GHz

L.O. Stability ±2MHz @ (-40c~70c) L.O. Phase Noise -70dBc/Hz (1KHz Offset) -90dBc/Hz (10KHz Offset) -110dBc/Hz (100KHz Offset) Conversion Gain 60dB (TYP)

Gain Flatness ±0.5dB/6MHz; ±2.5dB/IN BAND

Noise Figure ±0.1dB (Typ) Image Rejection 50dB(Typ) Output Power +5dB (Min) (at 1dB gain compression) Cross Polarization Discrimination 23dB(Min)

DC SUPPLY VOLTAGE 11~14.5V (V),15.5~22V (H)

SUPPLY CURRENT 130mA (MAX)

LOW/HIGH BAND SWITCHING

Low Band: 0Hz HIGH BAND: 22KHz±4KHz

Output Connector 75Ω “F” type female

RELATIVE HUMIDITY 0%~95%

Operating Temperature -45 °C to +70 °C
