Work Microwave Test Loop Translator VSTLT
The translator can be used to convert signals from one RF band to another for test and system evaluation purposes. Operating and control The converters can be o…
Description
The translator can be used to convert signals from one RF band to another for test and system evaluation purposes.
Operating and control
The converters can be operated via the push buttons on the front panel using self-explanatory display menus or via remote control (RS232, RS422/485, TCP/IP over Ethernet).
Detailed monitoring of the system status and a summary alarm output with dual change over switch contacts are provided. For the remote control, ASCII string-based commands and addressable, packet-based commands are provided. Remote monitoring and control through a Web browser interface are also integrated.
Key Features:
- C, X, Ku, K(DBS), Ka, Q-Band Output
- RF-Filter on output
- Variable Attenuator 0 … 30 dB, 0.1 dB step size on output
- Signal mute function
- Integrated local oscillator with 100 Hz step size available
- Digital gain compensation
- High stable OCXO (Long-term stability < 10-7 / year)
- Optional polarization switch on input and output
- 10 MHz reference output
- Low power consumption
- Local control through the front panel
- Remote control through RS232, RS422/485 (2-wire or 4-wire) interfaces, TCP/IP over Ethernet, and Web browser interface.
Contact Us:
Tel / WhatsApp: +86 18688706870
Website: www.nosatr.com

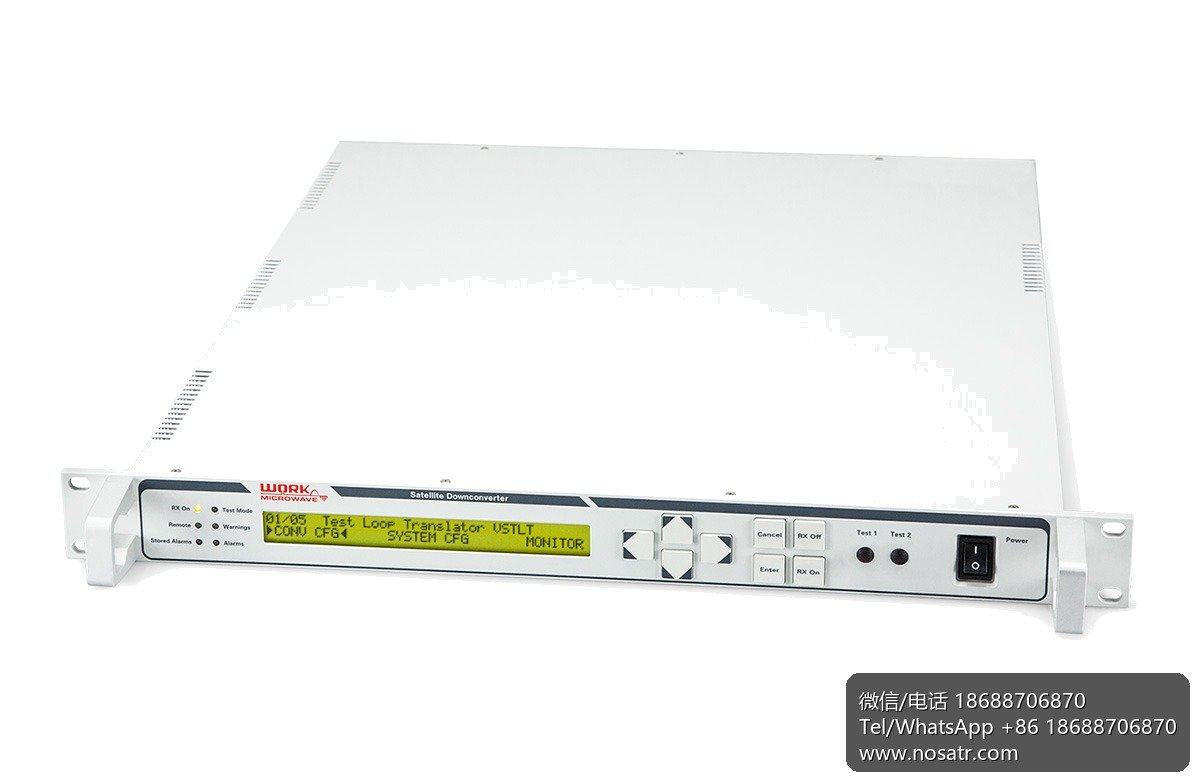

Images have been processed with a clean white background and watermark for www.nosatr.com.
Additional information
| Brand | Work Microwave |
|---|---|
| Product Family | Converter |
